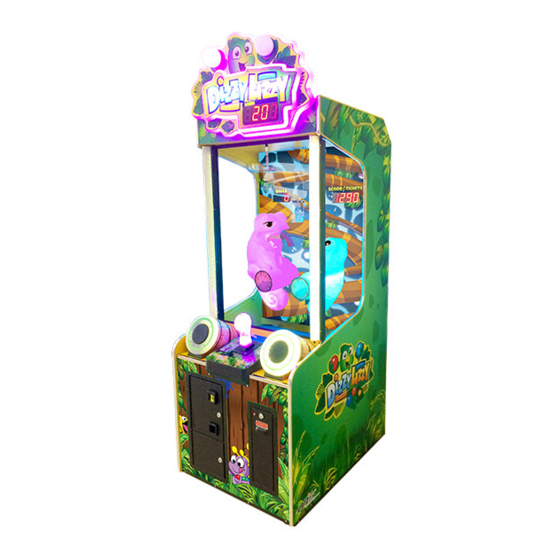

Universal Space Dizzy Lizzy Operation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

IMPORTANT
Operation Manual
www.universal-space.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Dizzy Lizzy and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Universal Space Dizzy Lizzy

Summary of Contents for Universal Space Dizzy Lizzy

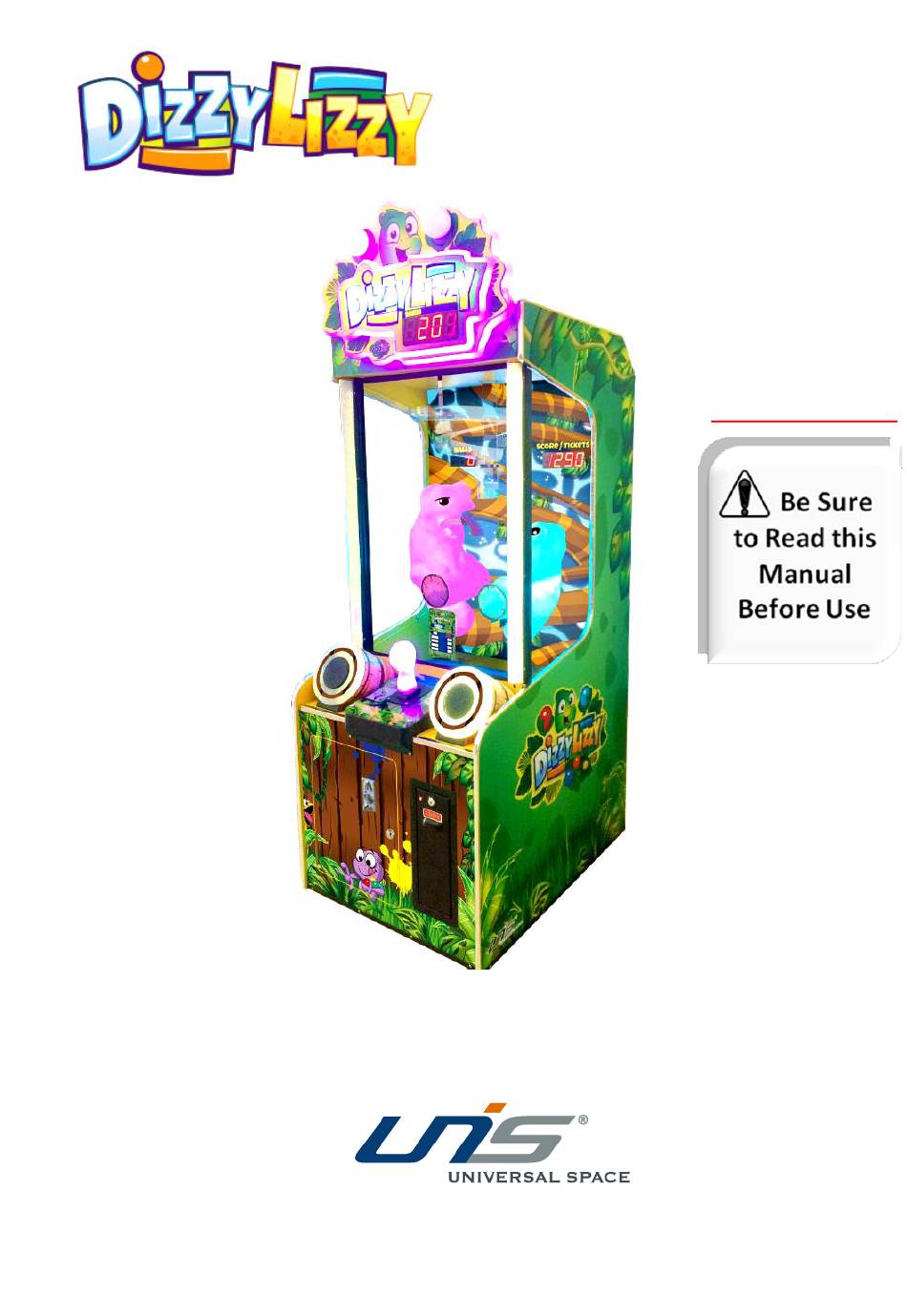

  • Page 1 IMPORTANT Operation Manual www.universal-space.com...

  • Page 2: Table Of Contents

    Dizzy Lizzy STD Manual CONTENT IMPORTANT SAFETY INSTRUCTIONS ................ 3 1. SPECIFICATIONS ..................... 5 2. PACKAGE CONTENTS ....................7 3. PART NAME ......................8 4. SET UP & INSTALLATION ..................9 5. HOW TO PLAY ......................12 6. IO SETTING ......................13 7.
  • Page 3 Dizzy Lizzy STD Manual WE ARE HERE TO ASSIST For parts and service Have Questions? Contact us! UNIS SERVICE CENTER Tel: 972-241-4263 Fax: 214-919-4918 Email: service@unisusasupportcenter.com 03/14/2018...

  • Page 4: Important Safety Instructions

    Dizzy Lizzy STD Manual Thank you for purchasing Dizzy Lizzy. We hope you enjoy the product. This manual contains valuable information about how to operate and maintain your game machine properly and safely. It is intended for the owner and/or personnel in charge of product operation.
  • Page 5 Dizzy Lizzy STD Manual Use the following safety guidelines to help ensure your own personal safety and to help protect your equipment and surrounding environment from potential damage. This product is an indoor game machine. Do not install outdoors. Avoid installing in the following places to prevent fire, electric shock, injury and/or machine malfunctioning: ...

  • Page 6: Specifications

    Dizzy Lizzy STD Manual 1. SPECIFICATIONS Rated power supply: AC110V 50/60Hz; AC220V 50/60Hz Min. Power consumption: 70W Max. Power consumption: 135W Dimension: W29×D 38×H 86 in Weight：Approximately 322 lb Part No.: D137 Model No: A-406 NOTICE: After turning off the game, please wait at least 1 minute before restarting again.
  • Page 7 Dizzy Lizzy STD Manual The dimension of the game during transportation. W29×D38×H75.2 in Note: Game specifications are subject to change without notice. 03/14/2018...

  • Page 8: Package Contents

    Dizzy Lizzy STD Manual 2. PACKAGE CONTENTS Open the package and make sure all the items are included: 1. Following accessories Part No. Code No. Name Picture Hexagon flat round head D140-301-000 20101048005 screws D140-302-000 20113000053 C large washer D140-303-000 25300171002...

  • Page 9: Part Name

    Dizzy Lizzy STD Manual 3. PART NAME Marquee Assy. Display Joystick Coin Assy. Ticket dispenser Assy. 03/14/2018...

  • Page 10: Set Up & Installation

    Dizzy Lizzy STD Manual 4. SET UP & INSTALLATION NOTICE We do not recommend using power tools as they may cause damage. This product is an indoor game machine. Do not install outdoors.  Refer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 3) for places to avoid ...
  • Page 11 Dizzy Lizzy STD Manual 4.3 Play Zone This machine requires space for playing and for maintenance as shown below. Leave space around the game upon installation: Service area: 20 in Service area Play area NOTICE Your unit must be leveled to operate properly.
  • Page 12 Dizzy Lizzy STD Manual 4.4 Marquee installation Before processing with assembly assure you have the following tool. Name Picture Use for Allen hexagon wrenches Marquee installation Use Hexagon flat round head screws and C large washers to lock the marquee.

  • Page 13: How To Play

    Dizzy Lizzy STD Manual 5. HOW TO PLAY 03/14/2018...

  • Page 14: Io Setting

    Dizzy Lizzy STD Manual 6. IO SETTING 6.1 Adjustment button instruction Open the coin door and there is a meter panel. Press test button to get into the setting menu. Settings Test Reset 6.2 IO setting SW 1 Item Content...
  • Page 15 Dizzy Lizzy STD Manual SW 2 Item Content Item Content A group ON ON ON Bonus Bonus B group off Payout Score C group Ticket off off D group off off ON ON OFF E group 1000 1500 off off...
  • Page 16 Dizzy Lizzy STD Manual 10 balls score group: Score 0-400 500-600 800 - ＜bonus score ≧bonus score 1 ticket(s) 5 ticket(s) 15 ticket(s) 20 ticket(s) bonus ticket(s) 3 ticket(s) 10 ticket(s) 20 ticket(s) 30 ticket(s) bonus ticket(s) 5 ticket(s) 15 ticket(s) 30 ticket(s)
  • Page 17 Dizzy Lizzy STD Manual 50 balls score group: Score 0-2400 2500-3400 3500-3900 4000 - ＜bonus score ≧bonus score 1 ticket(s) 5 ticket(s) 15 ticket(s) 20 ticket(s) bonus ticket(s) 3 ticket(s) 10 ticket(s) 20 ticket(s) 30 ticket(s) bonus ticket(s) 5 ticket(s)

  • Page 18: Trouble Shootings

    Dizzy Lizzy STD Manual 7. TROUBLE SHOOTINGS 7.1 Common Problem Please confirm whether every connector connected tightly. Symptom Possible Cause Recommended action Frame assembly connector is Game will not Plug the connector tightly. loose. start Frame assembly fault Contact with UNIS Service.
  • Page 19 Dizzy Lizzy STD Manual 7.2 Error code If you see following error code showing on the display, please try the recommended action. Ball deliver sensor Ball out counting sensor Score sensor Error Error Recommended action Code Check the connection of the buttons. Replace the...
  • Page 20 Dizzy Lizzy STD Manual Error Error Recommended action Code Check the connection of the button. Replace the button. Joystick button Er06 error Check the connection of the sensor. Replace the sensor. Score sensor Er09 error Please check the connection. Add ticket or remove the jammed tickets, then press reset button.

  • Page 21: Maintenance & Inspection

    Dizzy Lizzy STD Manual 8. MAINTENANCE & INSPECTION 8.1 Safety Check Check the points listed before operating the machine. These checks are necessary for safe machine operation: 1. Test game before operation each day. 2. Conduct monthly routine checks of game components ensure good working condition 3.
  • Page 22 Dizzy Lizzy STD Manual Step2 After cleaning balls, open the front window to put balls back through the mouth of the small character. Put balls back through the mouth. 8.4 How to fix balls cannot be sent out problem If the send ball Assy. is unable to send ball, that is because the send ball Assy. may gradually lose the friction after running a period of time.
  • Page 23 Dizzy Lizzy STD Manual 9. OVERALL CONSTRUCTION 9.1 General Assembly Part No. Code No. Name 1 D140-427-000 25300171001 Lock 2 D140-411-000 22301000002 Coin mech. 3 D140-428-000 25300172001 Lock 4 D140-102-000 20211703D001 Coin slot 5 D140-170-000 26000018000 Ticket door 6 D140-420-000 23100000005...
  • Page 24 Dizzy Lizzy STD Manual Part No. Code No. Name 13 D140-168-000 26000010000 Caster bracket 14 D140-101-000 20211703001 Side binding 15 D140-408-000 22003080017 5630 light(LC60cm) 16 D140-134-000 20211703050 Ball out fix plate 17 D140-136-000 20211703061 Ball track (down) plate 18 D140-407-000 22003080001...
  • Page 25 Dizzy Lizzy STD Manual Part No. Code No. Name 1 D140-425-000 23404010004 Motor 2 D140-109-000 20211703045 Send ball motor mounting plate 3 D140-602-000 20611703005 Send ball motor fix plate 4 D140-110-000 20211703046 Send ball spindle 5 D140-605-000 20611703031 Spin ball wheel...
  • Page 26 Dizzy Lizzy STD Manual 9.3 Marquee Assy. Part No. Code No. Name 1 D140-702-000 20511703002 Marquee decal 2 D140-438-000 29790800008 Display 3 D140-625-000 20611703002 Front light plastic plate 4 D140-626-000 20611703D001 Small marquee decal plate 1 5 D140-627-000 20611703003 Small marquee plastic plate 1...
  • Page 27 Dizzy Lizzy STD Manual 9.4 Ball drop assy. Part No. Code No. Name 1 D140-127-000 20211703017 Ball drop motor cover 2 D140-403-000 21501000026 Sensor 3 D140-424-000 23404000233 Motor 4 D140-129-000 20211703018 Cable square tube 5 D140-126-000 20211703016 Ball drop motor mounting plate 1...

  • Page 28: D140-308-000

    Dizzy Lizzy STD Manual Part No. Code No. Name 8 D140-125-000 20211703015 Send ball pipe(down) fix plate 1 9 D140-606-000 20611703007 Ball pipe(down) cover 10 D140-130-000 20211703048 Track pressing plate 11 D140-131-000 20211703049 Track fix plate 12 D140-608-000 20611703008 Ball track 9.5 Shoot ball assy.
  • Page 29 Dizzy Lizzy STD Manual 9.6 Ball in assy. Part No. Code No. Name 1 D140-133-000 20211703020 Small character bed plate 2 D140-132-000 20211703019 Support plate 3 D140-609-001 20611703012A Small character 4 D140-403-000 21501000026 Sensor 5 D140-135-000 20211703021 Score sensor mounting plate 1...
  • Page 30 Dizzy Lizzy STD Manual 9.8 Joystick assy. 03/14/2018...

  • Page 31: D140-309-000

    Dizzy Lizzy STD Manual Part No. Code No. Name 1 D140-108-000 20211703006 Control panel 2 D140-701-000 20511703001 Control panel decal 3 D140-158-000 20211703039 Guide plate 4 D140-162-000 20611703024 Pressing rod 5 D140-164-000 20211703043 Washer 6 D140-163-000 20211703060 Spring 7 D140-160-000 20211703041...
  • Page 32 Dizzy Lizzy STD Manual 9.9 Side light assy. Part No. Code No. Name 1 D140-616-000 20611703009 Side light cover 2 D140-617-000 20611703023 Side light cover pad 3 D140-148-000 20211703028 Side light cover bed plate 2 D140-149-000 20211703029 R side post...
  • Page 33 Dizzy Lizzy STD Manual 9.10 Front door assy. Part No. Code No. Name 1 D140-716-000 20511703021 Ticket instruction decal 1 2 D140-619-000 20611703011 Front door plate 3 D140-151-000 20211703031 Front door frame 4 D140-427-000 25300171001 Lock 03/14/2018...
  • Page 34 Dizzy Lizzy STD Manual 9.11 Decals Part No. Code No. Name 1 D140-702-000 20511703002 Marquee decal 2 D140-708-000 20511703D008 Top decal 3 D140-704-000 20511703004 Cover 4 D140-717-000 20511703E008 Ticket door decal 5 D140-701-000 20511703001 Control panel decal 6 D140-719-000 20511703E019 Send ball pipe(down) decal 1...
  • Page 35 Dizzy Lizzy STD Manual Part No. Code No. Name 1 D140-722-000 25600000100 Meter label 2 D140-723-000 25600000016 Power SW 3 D140-728-000 25600000074 Fuse label 4 D140-727-000 25600000072 220V label 5 D140-729-000 25600000091 GND label 6 D140-726-000 25600000071 110V label 7 D140-724-000 25600000033...
  • Page 36 Dizzy Lizzy STD Manual 9.12 Electrical components Part No. Code No. Name 1 D140-434-000 29790300001 V9 main board(V1.4) 2 D140-432-000 29711208002 Drive board (MOS-DRV(V1.0)) 1 3 D140-401-000 20751704001 Light control board 4 D140-404-000 21602000001 Power box(BTX-3039) Short circuit board 5 D140-433-000 29711605001 (Fuseboard01(V1.0)
  • Page 37 Dizzy Lizzy STD Manual Part No. Code No. Name 1 D140-416-000 22601000005 Rocket SW D140-444-000 21901000004A Fuse D140-405-000 21902000006 Fuse bracket 1 3 D140-421-000 23201000001 Filter D140-419-000 23000000006 Meter D140-181-000 26000044000 Meter bracket 1 5 D140-415-000 22403000001 POT knob D140-412-000 22402010002...
  • Page 38 Dizzy Lizzy STD Manual Part No. Code No. Name 1 D140-409-000 22005020005 Color light(MH-G80) 2 D140-406-000 22002013002 RGB light( 5050LED) 3 D140-407-000 22003080001 5630 light(LC50cm) 1 D140-438-000 29790800008 Display(LED23B4) 3 D140-406-000 22002013002 RGB light( 5050LED) 1.7 4 D140-406-000 22002013002 RGB light( 5050LED) 1.8 5 D140-406-000 22002013002 RGB light( 5050LED) 5.5...
  • Page 39 Dizzy Lizzy STD Manual 9. WIRING DIAGRAM 03/14/2018...
