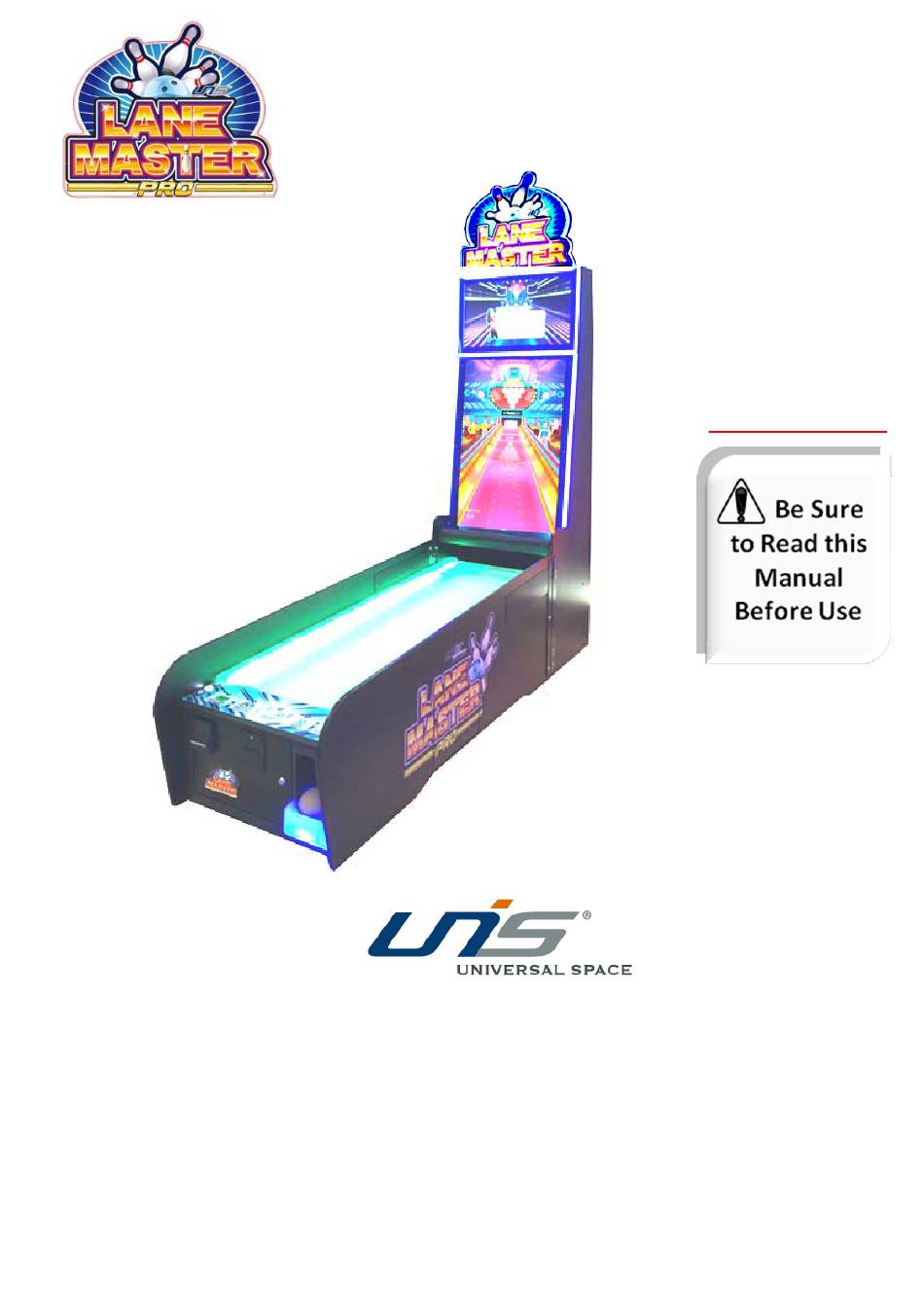

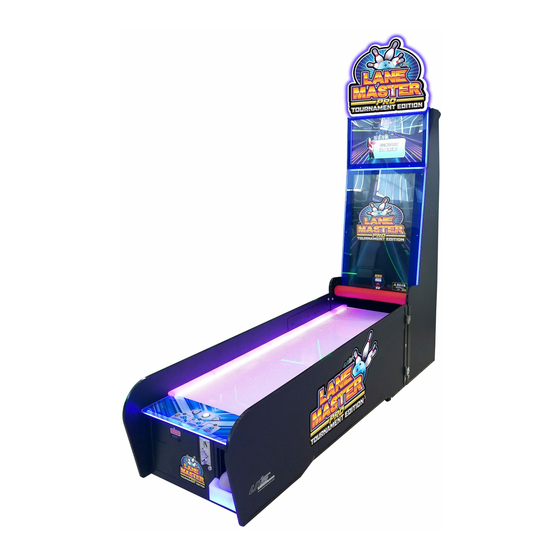

  • Page 1 IMPORTANT www.universal-space.com Operation Manual...
  • Page 2 Lane Master Pro GMP Manual WE ARE HERE TO ASSIST For parts and service Have Questions? Contact us! UNIS SERVICE CENTER Tel: 972-241-4263 Fax: 214-919-4918 Email: service@unisusasupportcenter.com 07/12/2018...

  • Page 3: Table Of Contents

    Lane Master Pro GMP Manual CONTENT IMPORTANT SAFETY INSTRUCTIONS ................ 3 1. SPECIFICATIONS ..................... 5 2. CONTENTS OF THE ACCESSORY KIT ..............7 3. PART NAME ......................8 4. SET UP & INSTALLATION ..................9 5. HOW TO PLAY ......................12 6.

  • Page 4: Important Safety Instructions

    Lane Master Pro GMP Manual Thank you for purchasing Lane Master Pro. We hope you enjoy the product. This manual contains valuable information about how to operate and maintain your game machine properly and safely. It is intended for the owner and/or personnel in charge of product operation.
  • Page 5 Lane Master Pro GMP Manual Use the following safety guidelines to help ensure your own personal safety and to help protect your equipment and surrounding environment from potential damage. This product is an indoor game machine. Do not install outdoors.

  • Page 6: Specifications

    Lane Master Pro GMP Manual 1. SPECIFICATIONS Rated power supply: AC110V 50/60Hz; AC220V 50/60Hz; Min. Power consumption: 250W Max. Power consumption: 300W Dimension: W26.4×D96.6×H101.2 in W 670×D2452.5 ×H2568.8 mm Weight：Approximately 474 lb Approximately 215 kg Part No: L114 Model No: C-525 NOTICE: After turning off the game, please wait at least 1 minute before restarting again.
  • Page 7 Lane Master Pro GMP Manual This machine will be divided into two parts during transportation. Back Cabinet: W26.4×D24.2×H82.3 in W670×D615×H2089 mm Ally part: W26.4×D72.4×H25.9 in W670×D1837.5×H658 mm Note: Game specifications are subject to change without notice. 07/12/2018...

  • Page 8: Contents Of The Accessory Kit

    Lane Master Pro GMP Manual 2. CONTENTS OF THE ACCESSORY KIT Open the package and make sure all the items are included: 1. Following accessories For 110V Part No. Code Name Picture L114-170-000 20611605027A Bowling ball L114-747-000 40607000012 Wrench L114-801-000 25300171002...

  • Page 9: Part Name

    Lane Master Pro GMP Manual 3. PART NAME Key Components Marquee Assy. 27” Monitor 42” Monitor Lane Ball exit Printer 07/12/2018...

  • Page 10: Set Up & Installation

    Lane Master Pro GMP Manual 4. SET UP & INSTALLATION NOTICE We do not recommend using power tools as they may cause damage. This product is an indoor game machine. Do not install outdoors.  Refer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 3) for places to avoid ...
  • Page 11 Lane Master Pro GMP Manual 4.3 Play Zone This machine requires space for playing and for maintenance as shown below. Leave space around the game upon installation: Service area: 20 in Service area Play area NOTICE Your unit must be leveled to operate properly.
  • Page 12 Lane Master Pro GMP Manual 4.4 Machine Installation 4.4.1 Marquee Installation Before processing with assembly assure you have the following tool. Name Picture Allen hexagon wrench Step 1 Upright the marquee and use Allen hexagon wrench to install two screws as picture shown.
  • Page 13 Lane Master Pro GMP Manual 4.4.2 Connect Lane Assembly & Display Assembly Step 1 Use the Allen hexagon wrench (Provided) to lock the back box with the lanes as indicated. Step 2 Lower leg levelers into place for initial leveling of the back box and the lanes if the floor is uneven.

  • Page 14: How To Play

    Lane Master Pro GMP Manual 5. HOW TO PLAY 07/12/2018...

  • Page 15: Game Option

    Lane Master Pro GMP Manual 6. GAME OPTION 6.1 Adjustment button instruction Open the coin door and there is a meter panel. Press Settings button to enter into the setting menu. 6.2 Setting menu 6.2.1 Main menu 6.2.2 Basic Setting...
  • Page 16 Lane Master Pro GMP Manual 6.2.4 Coupon content setting Prize Input: Score Input: Shop name Shop Name (Enter the shop name) (Enter the shop name) Prize content 1 ST (enter prize name) Comments 2 ND (enter prize name) (Enable to enter 1000 characters)
  • Page 17 Lane Master Pro GMP Manual 6.2.8 Date/Time Setting 6.2.9 About This Game Year 2010-2100 Press the Test Button to Go Back Month 1-12 1-31 Motherboard Hour(24) 0-23 Disk Drive Minute 0-59 Memory Display Adapter Second 0-59 Go Back & Save ...
  • Page 18 Lane Master Pro GMP Manual 6.3 Display Advertisement Operation In Version 1.05 or higher version for Lane Master, operator can put advertisement to the machine and display on the top monitor. Please note that the advertisement video format has to be AVI.
  • Page 19 Lane Master Pro GMP Manual 3.Click” GameDGho” 4.Click ”Videos” 5.Copy the AVI file from memory stick into “Videos” folder. Step 3 Unplug the memory stick. Power off and restart the machine. The advertisement video will be shown on the top screen. If the video format is not AVI. It will show an error as below.

  • Page 20: Trouble Shootings

    Lane Master Pro GMP Manual 7. TROUBLESHOOTING 7.1 Common Problem Please confirm that all connectors fit tightly. Symptom Possible Cause Recommended action Frame assembly connector is Game will not Check connector. loose. start Frame assembly fault Contact with UNIS Service.
  • Page 21 Lane Master Pro GMP Manual If you see following error signs showing on the display, please try the recommended action. Display Possible Cause Recommended action The connection part of Check and reconnect the loose ports the IO board and PC are of the PC or IO board.
  • Page 22 Lane Master Pro GMP Manual 7.2 System Recovery Operation (NOTE: Do not disconnect power during this process.) 1. Turn off the game. Remove recovery USB from the machine. (Note: This process may take up to 60 minutes) Insert the memory stick into the USB port at the back of the computer.

  • Page 23: Maintenance & Inspection

    Lane Master Pro GMP Manual 8. MAINTENANCE & INSPECTION 8.1 Safety Check Check the points listed before operating the machine. These checks are necessary for safe machine operation: 1. Test game before operation each day. 2. Conduct monthly routine checks of game components to ensure good working condition 3.
  • Page 24 Lane Master Pro GMP Manual Note: Please visit http://www.ictgroup.com.tw/ for more information. 07/12/2018...

  • Page 25: Overall Construction

    Lane Master Pro GMP Manual 9. OVERALL CONSTRUCTION 9.1 Marquee assy. Part No. Code No. Name 1 L114-713-000 20511605E003 Marquee decal 2 L114-166-000 20611605E008 Marquee plastic 2 3 L114-164-000 20211605E028 Marquee shell 4 L114-169-000 20211605E030 Hinge fix bracket 5 L114-144-000 20211605E031...
  • Page 26 Lane Master Pro GMP Manual 9.2 Top monitor assy. Part No. Code No. Name 1 L114-701-000 20511605E001 Monitor cover plastic(small) 2 L114-123-000 20611605E002 Vertical plastic 3 L114-122-000 20611605E001 Light plastic 4 L114-124-000 20611605E012 Horizontal plate 5 L114-121-000 20211605E012 Monitor down cover...
  • Page 27 Lane Master Pro GMP Manual 9.4 Monitor assy. Part No. Code No. Name 1 L114-127-000 20611605E014 Vertical bar 2 L114-131-000 20611605E005 Side light plastic 3 L114-114-000 20211605E006 Monitor fixed bracket 4 L114-135-000 20211605E014 Monitor fixed plate 5 L114-129-000 20611605E003 Side light plastic...
  • Page 28 Lane Master Pro GMP Manual Part No. Code No. Name 1 L114-510-000 20311605E009 L side plate 2 L114-528-000 20311605E027 Power supply connect plate 3 L114-530-001 20311605E029A Down service door 4 L114-535-000 20311605E034 Back bottom door connect plate 1 5 L114-529-000 20311605E028...
  • Page 29 Lane Master Pro GMP Manual Part No. Code No. Name 18 L114-515-000 20311605E014 Door fixed plate 19 L114-506-000 20311605E005 Lane plate 20 L114-526-000 20311605E025 Rear lane plate 21 L114-112-000 20211605E004 Back reinforced plate 2 22 L114-111-000 20211605E003 Back reinforced plate...
  • Page 30 Lane Master Pro GMP Manual 9.5 Lane assy. Part No. Code No. Name 1 L114-139-000 20211605E017 Door frame 2 L114-507-000 20311605E006 Front bed plate L114-155-000 20611605E018 Protect bar L114-156-000 20211605E032 Protect bar insert part 4 L114-512-001 20311605E011A Side plate 5 L114-508-000 20311605E007...
  • Page 31 Lane Master Pro GMP Manual Part No. Code No. Name 17 L114-537-000 20311605E036 Bottom-Lane side plate 18 L114-538-000 20311605E037 Bottom-Lane front plate 19 L114-539-000 20311605E038 Bottom-Lane middle plate L114-523-000 20311605E022 Middle side plate L114-143-000 20611605E023 Damping foam 3 21 L114-524-000 20311605E023...
  • Page 32 Lane Master Pro GMP Manual Part No. Code No. Name 1 L114-144-000 20211605E031 Hinge 2 L114-107-000 20211605H001 Ticket Meter bracket 3 L114-170-000 20611605027A Bowling ball L114-145-000 20611605E017 Ball hopper L114-146-000 20611605E019 Light plastic 5 L114-104-000 20211605H003 Lock plate 6 L114-106-000 20211605H005...
  • Page 33 Lane Master Pro GMP Manual Part No. Code No. Name 1 L114-541-000 20311605E040 Cabinet support plate 2 L114-151-000 20211605E042 Base 3 L114-734-000 23404000093 DC geared motor 4 L114-147-000 20211605E038 Frame 5 L114-149-000 20211605E040 Shaft fixed plate 6 L114-150-000 20211605E041 Spindle...
  • Page 34 Lane Master Pro GMP Manual 9.6 Decals Part No. Code No. Name 1 L114-713-000 20511605E003 Marquee decal 2 L114-709-000 20511605F004 Side plate L plastic 3 L114-710-000 20511605F005 Door frame decal 4 L114-708-000 20511605F003 Side plate R plastic 5 L114-702-000 20511605E002...
  • Page 35 Lane Master Pro GMP Manual Part No. Code No. Name 1 L114-707-000 20511605H005 Meter label 2 L114-717-000 26601100283 USB label 3 L114-728-000 25600000093 Dongle label 4 L114-721-000 25600000042 Service label 1 5 L114-722-000 25600000067 Service label 6 L114-720-000 25600000037 Warning label L...
  • Page 36 Lane Master Pro GMP Manual 9.7 Electrical components Part No. Code No. Name L114-415-000 22002013004 LED light strip-blue 1.95M L114-417-000 22002015005 5051 light strip-white 1.95M 2 L114-416-000 22002013013 5050 light strip-blue 1.95M 3 L114-416-000 22002013013 5050 light strip-blue 2.5M L114-414-000 22002013002 RGB light strip 0.2M...
  • Page 37 Lane Master Pro GMP Manual Part No. Code No. Name L114-410-000 21602000001A Power supply L114-432-000 23301018002 Power cord (0.5m) L114-441-000 23307020001 DVI-DVI video cable 2 L114-405-000 21201042002 42" LED monitor 3 L114-443-000 29711605001 Short cut protect board L114-444-000 29741702003 Main board...
  • Page 38 Lane Master Pro GMP Manual Part No. Code No. Name 1 L114-446-000 41300000007 2 L114-403-000 21107020036 Dongle L114-402-000 21102000051B PC assy.(TUV) L114-402-001 21107220008 Main board L114-402-002 21107190017 L114-402-003 21107090013 Memory L114-402-004 21107060004 Hard disk L114-402-005 21107170012 PC power supply L114-402-006 21107070007...
  • Page 39 Lane Master Pro GMP Manual Part No. Code No. Name L114-440-000 23307010001 DVI-HDMI video cable L114-404-000 21201027001 27" Monitor L114-425-000 22702000010 Fan net L114-426-000 22702010025 3 L114-734-000 23404000093 DC geared motor 4 L114-407-000 21503000034 Sensor SW 5 L114-901-000 21107180018 Printer...

  • Page 40: Wiring Diagram

    Lane Master Pro GMP Manual 10. WIRING DIAGRAM 07/12/2018...
  • Page 41 Lane Master Pro GMP Manual 07/12/2018...
