Section View - EGR ROLLTRAC Installation Instructions Manual

1
Remove Tape
Liner
50/50
Isopropyl Alcohol/Water
3M Primer 94
(preferred) or
equivalent
2
RHS BED FRONT CORNER
FILL GAPS AS
REQUIRED
6

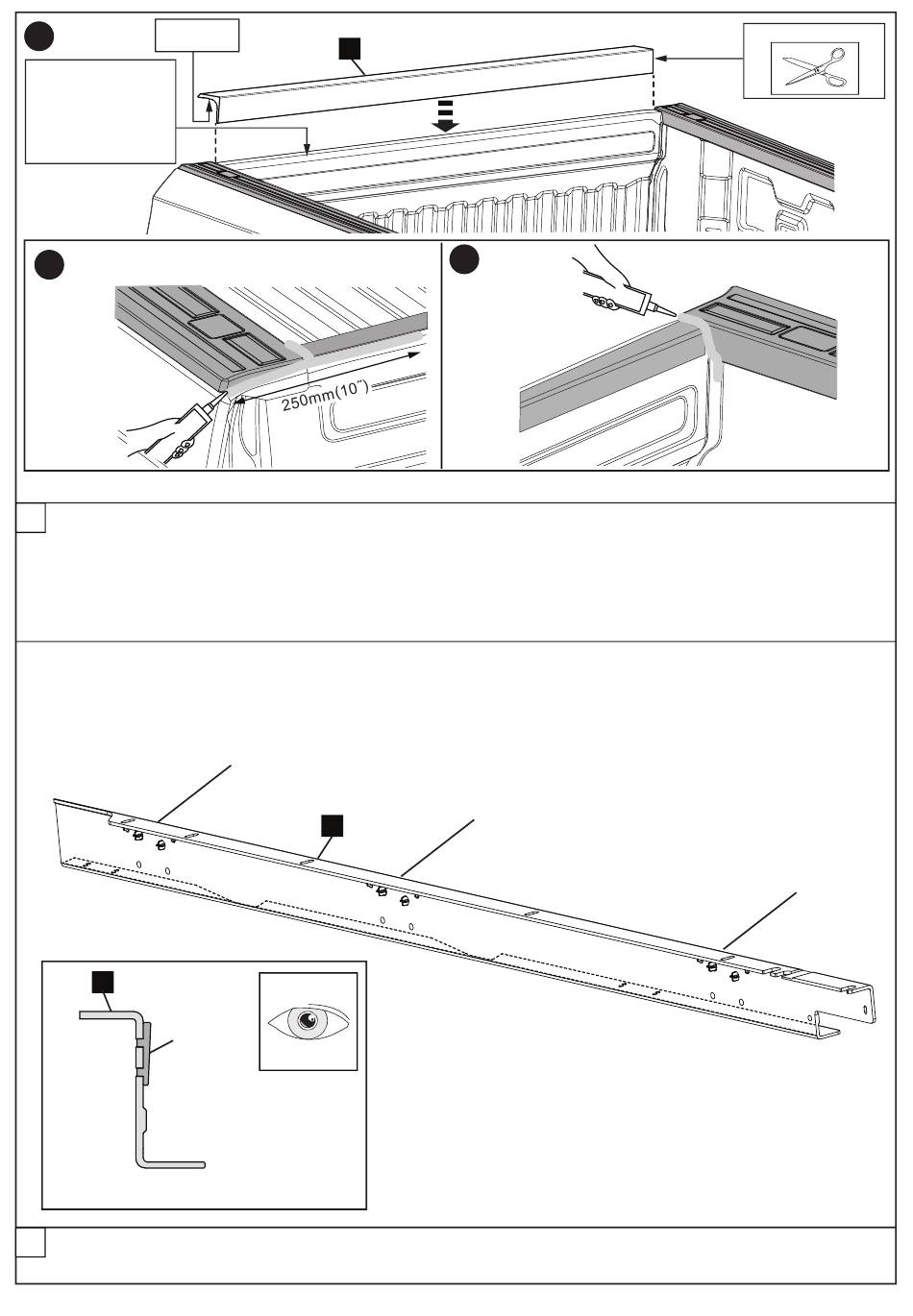

Clean the front top of the bed using Isopropyl Alcohol/Water mix and apply primer to the top area. Allow to dry.
Place the extrusion (19) on front of the vehicle bed, check the length and trim to full width if required. Pre-peel
50mm (2˝) of the tape liner from one end of the Rubber Extrusion (19). Place the Rubber Extrusion on top of the
bed as shown and centralise. Once in position, peel the liner and apply firm pressure from the top. Silicone the gap
between the panels as shown on both sides. NOTE: Holes in the bed should be sealed with Silicone to prevent dust
and water ingress as required.
RHS MOUNT EXTRUSION ASSEMBLY
6
SPACER

SECTION VIEW

7
Check if the plastic spacers are in place, if they have fallen out during transport, please refit.
RT0082
19
SPACER
6
3
FILL GAPS AS
REQUIRED
SPACER
Page 8 of 37
TRIM AS REQUIRED
RHS BED TOP & INSIDE
SPACER
Issue 2: 01/08/24
