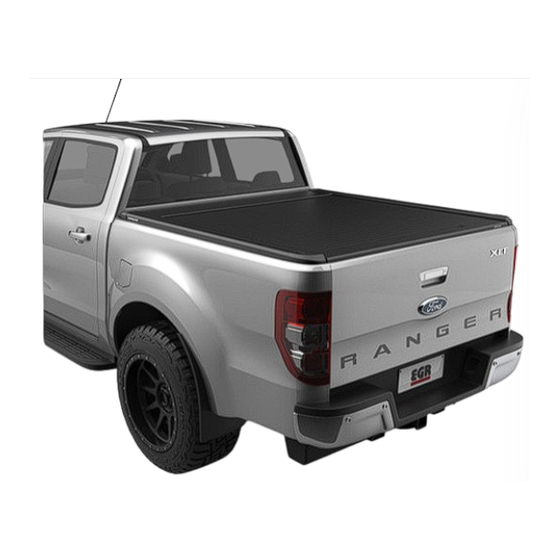

- Page 1 Electric THE WORLD’S BEST ELECTRIC ROLL TOP COVER Owner’s Manual IMPORTANT: Place in the customer’s vehicle service book 99450.001 EGR RollTrac Owner's Manual A5_aw1.indd 1 99450.001 EGR RollTrac Owner's Manual A5_aw1.indd 1 03/07/2020 16:40 03/07/2020 16:40...
-
Page 2: Warnings - Safety
Do not Condensation on the under side of the cover should be expected allow solvents, chemicals or oils to come in contact with the EGR under certain conditions (cool days/nights). RollTrac. If this should occur clean the EGR RollTrac immediately •... -
Page 3: Table Of Contents
Maintenance Calibration procedure Opening and closing procedure Locking procedure Interior light operation Cleaning the canister Trouble shooting Installation checklist Key identification code 99450.001 EGR RollTrac Owner's Manual A5_aw1.indd 3 99450.001 EGR RollTrac Owner's Manual A5_aw1.indd 3 03/07/2020 16:40 03/07/2020 16:40... -
Page 4: Introduction
Disclaimer: In the event that your EGR RollTrac is found to be defective under the terms of this warranty, it is at the discretion of EGR to repair or replace the defective part. Transportation costs and fitment labour are not associated with this warranty claim. -
Page 5: Maintenance
If you notice slow, heavy or noisy operation of the cover firstly operation, however in certain conditions additional care may be clean the externals of the EGR RollTrac (slats, side rails, seals etc.) required to ensure smooth operation. If the vehicle is driven in and the internals of the canister as described previously. -
Page 6: Calibration Procedure
Keep obstructions clear of cover during calibration mode. 10 Seconds Pull • The EGR RollTrac will open and close twice automatically. • The internal LED light will pulse slowly during calibration and stop pulsing when calibration is complete. 99450.001 EGR RollTrac Owner's Manual A5_aw1.indd 6 99450.001 EGR RollTrac Owner's Manual A5_aw1.indd 6... - Page 7 Calibration procedure 2 second pulse Start of calibration during calibration End of calibration 99450.001 EGR RollTrac Owner's Manual A5_aw1.indd 7 99450.001 EGR RollTrac Owner's Manual A5_aw1.indd 7 03/07/2020 16:40 03/07/2020 16:40...
-
Page 8: Opening And Closing Procedure
Opening and closing procedure Electric opening procedure Press the “UNLOCK” button on the car remote. Press the front button on the EGR RollTrac side rail as shown. OPEN Press once Unlock Electric closing procedure Press the rear button on the EGR RollTrac side rail as shown. - Page 9 Before driving vehicle ensure you re-engage the clutch. Clutch engaged Clutch CLUTCH disengaged IMPORTANT: If clutch was disengaged, calibration procedure needs to be re-run prior to electric operation. 99450.001 EGR RollTrac Owner's Manual A5_aw1.indd 9 99450.001 EGR RollTrac Owner's Manual A5_aw1.indd 9 03/07/2020 16:40 03/07/2020 16:40...
-
Page 10: Locking Procedure
Lock latches will not activate until cover is in fully closed position. Ensure to return tailgate to fully closed position prior to lock/unlock. 99450.001 EGR RollTrac Owner's Manual A5_aw1.indd 10 99450.001 EGR RollTrac Owner's Manual A5_aw1.indd 10 03/07/2020 16:40 03/07/2020 16:40... - Page 11 Locking procedure Emergency opening In case of entrapment inside a locked vehicle tub fitted with the EGR RollTrac, release the motor clutch by pushing in the Clutch Disengagement Lever (on the right hand side of the cover). Turn the emergency release handle located on the centre of the hand rail assembly and retract the slats manually.
-
Page 12: Interior Light Operation
AUTO (default) which turns light off 2 mins after last button press. ON - Light remains on for 20 mins Push the button Small blue LED light indicates auto mode 99450.001 EGR RollTrac Owner's Manual A5_aw1.indd 12 99450.001 EGR RollTrac Owner's Manual A5_aw1.indd 12 03/07/2020 16:40 03/07/2020 16:40... -
Page 13: Cleaning The Canister
Remove all larger debris and use a brush or hose with water to remove any small particles. Inspection cover Inspection cover 99450.001 EGR RollTrac Owner's Manual A5_aw1.indd 13 99450.001 EGR RollTrac Owner's Manual A5_aw1.indd 13 03/07/2020 16:40 03/07/2020 16:40... -
Page 14: Trouble Shooting
Manually lock and unlock using the key, recheck operation. • Remove power (fuse) and wait for 5 sec. before applying power back to the EGR RollTrac and recalibrate. • Error mode is indicated by flashing LED lights and loss of function mid operation, follow steps as outlined above. - Page 15 • After periods of non use the seals on your EGR RollTrac may cause a thumping sound on first opening or closing. This is a function of the seal design and does not indicate a fault. Operation noise should return to normal after regular operation.
- Page 16 If the EGR RollTrac is operational - check connections to LED light in side rail are pushed home. do not • If the EGR RollTrac is not operational – lighting is linked to installation of vehicle harness and connectors, troubleshoot switch and recheck operation.
- Page 17 99450.001 EGR RollTrac Owner's Manual A5_aw1.indd 17 99450.001 EGR RollTrac Owner's Manual A5_aw1.indd 17 03/07/2020 16:40 03/07/2020 16:40...
-
Page 18: Installation Checklist
Position EGR RollTrac on tub squarely and centrally Registration: Clamps are square and tight, torqued as specified in your EGR RollTrac Installation Instructions, side bolts and pads fitted Check that the clutch release lever functions correctly (must be done prior to calibration) -
Page 19: Key Identification Code
Please write the key identification code in the boxes below, and retain this copy with the vehicle service history. Replacement keys can be purchased from your local dealer. KEY IDENTIFICATION CODE 99450.001 EGR RollTrac Owner's Manual A5_aw1.indd 19 99450.001 EGR RollTrac Owner's Manual A5_aw1.indd 19 03/07/2020 16:40 03/07/2020 16:40... - Page 20 EGR Europe Limited Fox Hunter Drive Linford Wood Milton Keynes United Kingdom MK14 6FE Email: sales@egreurope.co.uk www.egrrolltrac.co.uk UK Issue: 1 99450.001 EGR RollTrac Owner's Manual A5_aw1.indd 20 99450.001 EGR RollTrac Owner's Manual A5_aw1.indd 20 03/07/2020 16:40 03/07/2020 16:40...
