EGR ROLLTRAC Installation Instructions Manual page 30

• NOT TO BE USED AS LIFTING DEVICE
• MEASUREMENTS ARE STILL REQUIRED AS PER THE FITTING INSTRUCTIONS
• SETTING BRACE SHOULD BE REMOVED ONLY WHEN SET UP IS COMPLETED
1
1

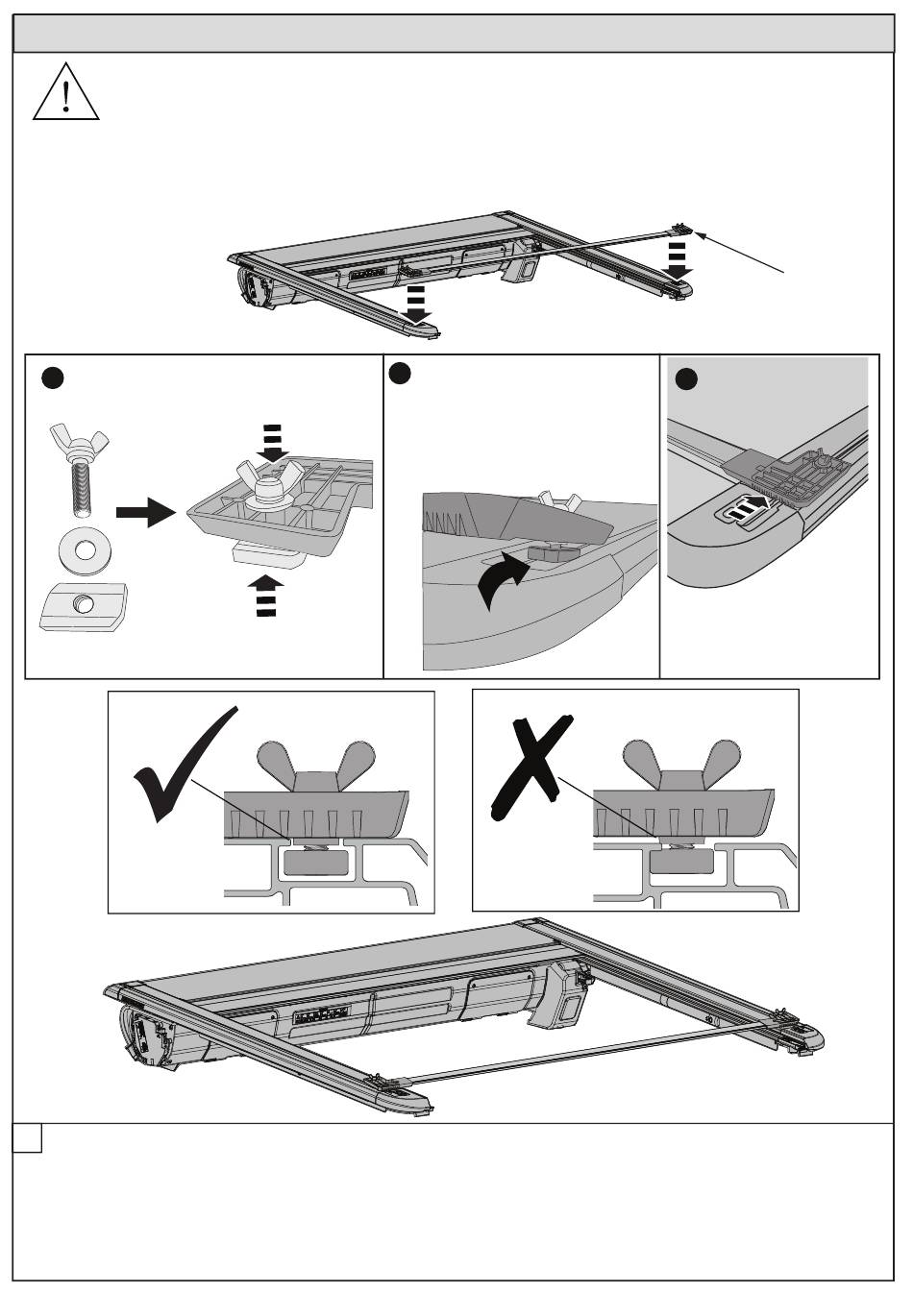

Setting Brace comes pre-assembled. Fit the T-Nuts with washers and wing screws as shown to both ends of the
Setting Brace. Place the Setting Brace over the rear of the Rolltrac and slide the T-Nuts into the slots as shown. Once
in position, slide the brace backwards till the plastic part of the brace comes to contact with the edge of the rear End
Cap.
NOTE: Brace is equipped with locators at the bottom and those must be fitted into the side rails. Tighten the wing bolt
(finger tight only).
RT0082
SETTING BRACE - USER GUIDE
2
Page 29 of 37
SETTING
BRACE
3
Issue 2: 01/08/24
