GRAVITY CROSS TRAINER

OWNER'S MANUAL AND ASSEMBLY GUIDE

Table of Contents

Need help?

Do you have a question about the GRAVITY XC2-XA-35 and is the answer not in the manual?

Questions and answers

Summary of Contents for True Fitness GRAVITY XC2-XA-35

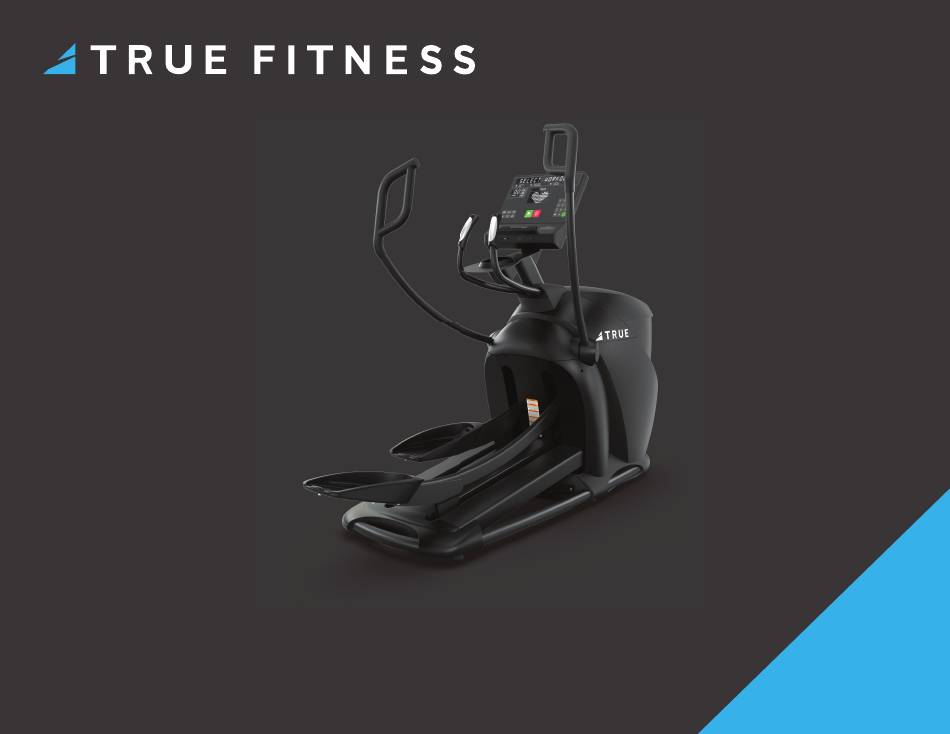

Page 1 GRAVITY CROSS TRAINER OWNER’S MANUAL AND ASSEMBLY GUIDE...
Page 2: Important-Please Read
Interested in owning more TRUE products? Please contact us with any product inquires so that we may direct you to the appropriate sales representative to help answer your questions. • Phone | 800.426.6570 • Email | sales@trueﬁ tness.com • Hours | Monday - Friday 8:30am - 5:00pm (CST) © 2024 TRUE Fitness All Rights Reserved.
Page 3: Reporting Freight Claims Or Parts Damage
ﬁ le a claim if the carrier is not notiﬁ ed in a timely manner. Once you have called the carrier you will need to gather the serial number, model number, description of damage, and photos of damage. Contact TRUE product support (service@trueﬁ tness.com | 800.883.8783) or TRUE sales support (sales@trueﬁ tness.com | 800.426.6570) Monday-Friday during normal business hours. © 2024 TRUE Fitness All Rights Reserved.
Page 4: Table Of Contents
COMPLIANCES................9 PROPER USE.................10 ASSEMBLY INSTRUCTIONS PREASSEMBLY CHECKLIST............11 ASSEMBLY STEPS.................14 PRODUCT FEATURES BASE OVERVIEW................25 CONSOLE OVERVIEW..............26 CARE AND MAINTENANCE INSPECTION................28 CLEANING THE EQUIPMENT............28 LEVELING THE MACHINE..............28 PREVENTATIVE MAINTENANCE............29 LONG TERM STORAGE..............29 ADDITIONAL INFORMATION TROUBLESHOOTING..............30 © 2024 TRUE Fitness All Rights Reserved.
Page 5: Safety Instructions
Do not move the equipment by lifting the console. Do not use the console as a humidity including extreme temperature changes. handlebar during a workout. • Close supervision is necessary when used near children under the age of 15, or disabled persons. © 2024 TRUE Fitness All Rights Reserved.
Page 6 110V AC input and 9V DC 1.5 amp output for console operation only. • The batteries within self-generated equipment contain materials that are considered hazardous to the environment. Federal law requires proper disposal of these batteries. © 2024 TRUE Fitness All Rights Reserved.
Page 7: Power Requirements
XC2-XA-35 with the optional power supply. Up to 5 cross NEMA 6-15 Non-LED consoles require the trainers per 350 watts per 50/60Hz optional power supply. circuit—DO NOT cross trainer exceed © 2024 TRUE Fitness All Rights Reserved.
Page 8: Space Requirements
◦ 69” x 31” (175cm x 78cm) Active Footprint ◦ 83” x 34” (210cm x 86cm) • MACHINE WEIGHT 320 lbs / 145 kg • MAXIMUM USER WEIGHT 400 lbs / 181 kg © 2024 TRUE Fitness All Rights Reserved.
Page 9: Warning Decals
To replace any worn or missing decals contact TRUE product support (service@trueﬁ tness.com | 800.883.8783). console serial number location base serial number location COMPLIANCES This equipment complies with all applicable codes and regulations. For a complete list of compliances, please visit www.trueﬁ tness.com. © 2024 TRUE Fitness All Rights Reserved.
Page 10: Proper Use
While gripping the upper exercise arms for stability, step from the highest pedal onto the side platform (if equipped). • Place the opposite foot on the other side platform (if equipped). • Step down to the ﬂ oor. © 2024 TRUE Fitness All Rights Reserved.
Page 11: Assembly Instructions
IN BOX IN BOX Ratchet Wrench with #2 Phillips Screwdriver 17mm Socket 6mm Allen Wrench Wire Cutters Ratchet Wrench with 6mm Socket Bit (optional Torque Wrench (optional but recommended) but recommended) 17mm Wrench © 2024 TRUE Fitness All Rights Reserved.
Page 12: Box Contents
IMPORTANT! Please verify box contents. If you have questions, or if there are any missing parts, contact product support (service@trueﬁ tness.com | 800.883.8783). BOX CONTENTS ITEM DESCRIPTION Base Console Mast Left Moving Handlebar Right Moving Handlebar Access Panel Top Shroud Handlebar Covers Mast Boot Hardware Bag Manual © 2024 TRUE Fitness All Rights Reserved.
Page 13: Hardware Pack Contents
950052-009 B18.21.2M, WASHER, LOCK, STL, M10 105606-001 BOLT, M10 X 1.5 X 65, HEX HEAD, GR 8.8, CZ 105605-001 BAR, ARM, M10 HOLES 100924-001 WRENCH, HEX, M6 102316-001 TIE, CABLE, W3.6 X L310 © 2024 TRUE Fitness All Rights Reserved.
Page 14: Assembly Steps
C. Attach the right pedal lever to the 3-pivot link using the previously removed bolt and nut. D. Securely fasten the hardware. When using a torque wrench fasten to 41 n-m (30 ft-lb). when using a torque wrench = 41 N-M (30 FT-LB) © 2024 TRUE Fitness All Rights Reserved.
Page 15 M10 bar. nuts, and one M10 bar. C. Securely fasten the hardware. When using a torque wrench fasten to 41 n-m (30 ft-lb). when using a torque wrench = 41 N-M (30 FT-LB) © 2024 TRUE Fitness All Rights Reserved.
Page 16 When using a torque wrench fasten to 23 n-m (17 ft-lb). shorter C. Repeat for right handlebar. IMPORTANT! Handlebars must be set to the same position for proper function. longer when using a torque wrench = 23 N-M (17 FT-LB) © 2024 TRUE Fitness All Rights Reserved.
Page 17 ﬂ at washer side screws. B. Position the access panel so the metal plate is behind the back shroud and front tabs are in the slots. D. Press the two handlebar covers in place. © 2024 TRUE Fitness All Rights Reserved.
Page 18 B. Connect the cables coming from the mast with the cables at the base: I/O data cable and power cable. C. Slide mast over screws on base; tighten with 6mm allen wrench. coaxial network I/O data external power self-gen power © 2024 TRUE Fitness All Rights Reserved.
Page 20 NOTE: The base power cables come conﬁ gured for a touchscreen console or PVS. If an LED console is being used without a PVS, switch the power connection in the base to self-gen. © 2024 TRUE Fitness All Rights Reserved.
Page 21 C. Wrap the mast boot around the console mast and tuck into access panel. You will hear a loud snap. B. Fasten the top shroud to the access panel with two M5 with ﬂ at washer screws. © 2024 TRUE Fitness All Rights Reserved.
Page 23 APEX UPRIGHT BIKE LAUNCH RECUMBENT BIKE VAPOR STRYKER APEX RECUMBENT ELLIPTICAL LAUNCH UPRIGHT BIKE VAPOR ALPINE RUNNER GRAVITY ELLIPTICAL VAPOR PALISADE VAPOR SPECTRUM GRAVITY RECUMBENT BIKE VAPOR XT-ONE GRAVITY UPRIGHT BIKE VAPOR LATERAL X © 2024 TRUE Fitness All Rights Reserved.
Page 25: Product Features Base Overview
Patented, one-of-the-kind converging path and multigrip handlebars to better engage the upper body and ﬁ t every exerciser comfortably. H. Stationary Handlebars with Contact Heartrate Grips Check heartrate without wearing a wireless chest strap. © 2024 TRUE Fitness All Rights Reserved.
Page 26: Console Overview
CONSOLE OVERVIEW UNITE TOUCHSCREENS (16” SHOWN) Android OS Touchscreen Choose Workout Bluetooth Compatible Apple Watch Compatible Choose Language Galaxy Watch Compatible Lock Screen for Cleaning Tap to Pair Wireless Charging HDMI 3.5mm Headphone Jack © 2024 TRUE Fitness All Rights Reserved.
Page 28: Care And Maintenance
CAUTION: Do not use any acidic cleaners. Doing so will weaken the paint or powder coatings and may void the TRUE Fitness Warranty. Never pour water or spray liquids on any parts of the machine. Allow the machine to dry completely before using. Frequently vacuum the ﬂ oor underneath the unit to prevent the accumulation of dust and dirt, which can affect the smooth operation.
Page 29: Preventative Maintenance
TRUE recommends that quarterly scheduled maintenance be performed by a qualiﬁ ed service technician. Please contact your dealer or visit www.trueﬁ tness.com to contact a local TRUE authorized service technician. IMPORTANT! Use only TRUE Fitness certiﬁ ed service providers. Using non-authorized service providers could void the TRUE Warranty. Frequency...
Page 30: Additional Information Troubleshooting
Obtain set top box from video provider Verify video type with provider; analog (NTCS), digital air (ATCS), digital cable (QAM) Channels or format type not correct Rescan TV channels Tuner Invalid Contact TRUE Product Support © 2024 TRUE Fitness All Rights Reserved.
Page 31 Cables are pinched or damaged Contact TRUE product support Contact Heart Rate not displaying Nucleus board may be damaged Contact TRUE product support Heart Rate Grips may be damaged Contact TRUE product support © 2024 TRUE Fitness All Rights Reserved.
Page 32: Warranty Information Commercial Warranty
Coax/TV, HDMI, USB, mirroring or Ethernet connections, and safety key. Cables and Linear 1 Year Bearings See Warranty Details for terms, conditions, and complete coverage details. Labor** 1 Year Wear Items*** 90 Days © 2024 TRUE Fitness All Rights Reserved.
Page 33: Limited-Use Commercial Warranty
LIMITED-USE COMMERCIAL WARRANTY* TRUE Fitness may offer alternative warranties to purchasers of commercial CARDIO equipment for limited-use commercial* or in-home use.** This policy ensures that customers who use commercial equipment for limited-use commercial or WARRANTY VAPOR, GRAVITY in-home use may receive alternative warranty coverage, provided they meet...
Page 34: Warranty Details
WARRANTY DETAILS All TRUE Fitness products are distributed by TRUE and are warranted to the original registered product purchaser and the parts of the TRUE product (the “Product”) listed below, under normal use and service, shall be free of manufacturing defects in workmanship and materials only for the speciﬁ ed period of time.
Page 35: Warranty Registration
WARRANTY REGISTRATION Base Serial Number Console Serial Number Purchase Date Company (if applicable) Customer Name (First and Last) Email Address Phone Number Street Address City State Postal Code Country © 2024 TRUE Fitness All Rights Reserved.
Page 36 CONTACT US service@trueﬁ tness.com 800.883.8783 865 Hoff Road St. Louis, MO 63366 T R U E F I T N E S S . C O M MAN-XC2-XA-35 Owner’s Manual and Assembly Guide REV01 © 2024 TRUE Fitness All Rights Reserved.
