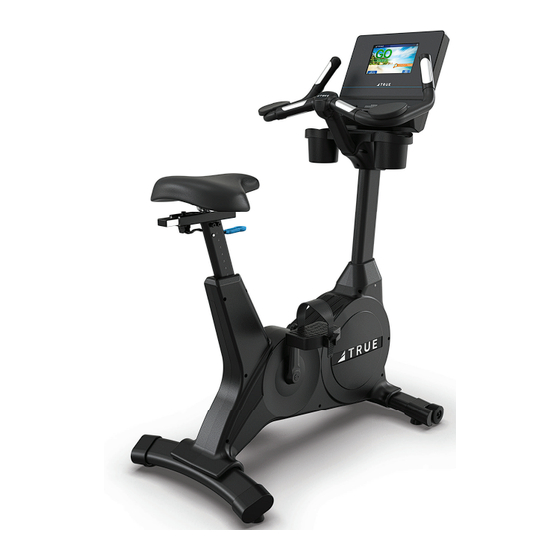

MODEL UR1-0A-35
MAN-UR1-0A-35 REV00
OWNER'S
MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UR1-0A-35 and is the answer not in the manual?

Questions and answers

Related Manuals for True Fitness UR1-0A-35

Summary of Contents for True Fitness UR1-0A-35

  • Page 1 RESIDENTIAL UPRIGHT BIKE OWNER’S MODEL UR1-0A-35 MANUAL MAN-UR1-0A-35 REV00...

  • Page 3: Important-Please Read

    IMPORTANT—PLEASE READ All products shown are prototype. Actual product delivered may vary. Product specifi cations, features, and software are subject to change without notice. For the most up-to-date version of this manual, please see our website: https://shop.truefi tness.com/customer-service/user-manuals/ CONTACTING OUR SUPPORT TEAM To contact TRUE for any of your pre or post installation questions, please call our toll-free numbers Monday - Friday 8:30am - 5:00pm (CST): •...

  • Page 4: Reporting Freight Claims Or Parts Damage

    REPORTING FREIGHT CLAIMS OR PARTS DAMAGE Unfortunately, sometimes materials can be damaged during shipment. If materials are damaged during shipment, please follow the guidelines below to determine the appropriate process for you to follow. Severe Damage—Obvious damage to external packaging and internal product. Please refuse the shipment and it will be returned to TRUE by the carrier.

  • Page 5: Table Of Contents

    TABLE OF CONTENTS SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS—SAVE THESE INSTRUCTIONS............6 POWER REQUIREMENTS..........................8 GROUNDING INSTRUCTIONS........................8 SPACE REQUIREMENTS...........................9 SPECIFICATIONS..........................9 WARNING DECALS..........................10 COMPLIANCES...........................10 PROPER USE............................11 ASSEMBLY INSTRUCTIONS PREASSEMBLY CHECKLIST........................12 ASSEMBLY STEPS..........................16 PRODUCT FEATURES BASE OVERVIEW...........................31 CONSOLE OVERVIEW..........................32 CARE AND MAINTENANCE INSPECTION..........................33 CLEANING THE EQUIPMENT........................33 LEVELING THE EQUIPMENT........................33 PREVENTATIVE MAINTENANCE......................34 LONG TERM STORAGE...........................34...

  • Page 6: Safety Instructions

    SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS—SAVE THESE INSTRUCTIONS This equipment intended for in-home use only. Do not use this product in any commercial, rental, school or institutional setting. • Read and understand all instructions and warnings prior to use. • Obtain a medical exam before beginning any exercise program. If at any time during exercise you feel faint, dizzy, or experience pain, stop and consult your physician.
  • Page 7 • Use a TRUE AC power cord or AC/DC adapter only. • Always follow the console instructions for proper operation. • Position this product so the power cord plug is • Do not use the contact heart rate grips as a handlebar accessible to the user.

  • Page 8: Power Requirements

    (usually on the front of the unit). Depending on where you live voltage requirements grounded differ. outlet grounding pin Power Information Line Rated Number of Max Power Frequency Model Voltage Current Units per Plug/Outlet Dissipation (Hz) (Amps) Circuit (Watt) NEMA 5-15 UR1-0A-35 50/60Hz 1230...

  • Page 9: Space Requirements

    SPACE REQUIREMENTS TRUE recommends leaving a minimum of 24” (61cm) on each side of the equipment and a 79” (200cm) safety zone at the rear of the equipment. 24” (61cm) 24” 79” (61cm) (200cm) 24” (61cm) SPECIFICATIONS • DIMENSIONS (L X W X H) 44”...

  • Page 10: Warning Decals

    WARNING DECALS WARNING: Replace warning labels that may be worn, damaged, or missing. To replace any worn or missing decals contact TRUE product support (service@truefi tness.com | 800.883.8783). console serial number location UR1-0A-35 0A-35 0A-35 24- UR10A001A 24- UR10A0 24- UR10A...

  • Page 11: Proper Use

    PROPER USE Proper Training Position • Once seated, users should place their feet on the pedals (A). • When pedaling, the user should be able to extend their legs fully while pedaling; if users do not have enough room to fully extend their legs, they should adjust their seat position (B) until their legs are able to comfortably extend.

  • Page 12: Assembly Instructions

    ASSEMBLY INSTRUCTIONS NOTE: Supplemental video available @TRUEFitnessservicevids. PREASSEMBLY CHECKLIST BASIC GUIDELINES FOR SETTING UP THE EQUIPMENT After removing the equipment from the packaging, place the equipment on a clean, level surface. Make sure the electrical cord easily reaches a grounded three-pronged outlet. DANGER: Do not use an extension cord or ungrounded outlet.
  • Page 13 BOX CONTENTS ITEM DESCRIPTION Base Left Pedal Right Pedal Seat Saddle Storage Tray Rear Console Cover Handlebar Front Console Cover Left Cup Holder Right Cup Holder Front Mast Mast Boot Front Stabilizer Rear Stabilizer Hardware Bag(s) Manual Chest Strap Power Adapter *The 9V, 1.3A power adapter is for LED consoles only.
  • Page 14 HARDWARE PACK CONTENTS STEP 1 & 2 STEP 8 FRONT AND REAR STABILIZER HARDWARE HANDLEBAR HARDWARE ITEM DESCRIPTION ITEM DESCRIPTION UCS0309 SCREW M8X70L (E. FE0179 SHCS, M8 X P1.25 X 20MM COATING) CS80156 SPRING WASHER M8 (E. CS80156 SPRING WASHER M8 (E. COATING) COATING) CS80157...
  • Page 15 HARDWARE PACK CONTENTS TOOLS ITEM DESCRIPTION 6MM BALL END ALLEN WRENCH 13MM/15MM/17MM COMBINATION WRENCH...

  • Page 16: Assembly Steps

    ASSEMBLY STEPS Step 1—Attach Rear Stabilizer Tools Used in this Step Parts Used in this Step 6mm Ball End Allen Item Part Description Wrench UCS0033-35 SUBASSEMBLY, STABILIZER, REAR UCS0309 SCREW M8X70L (E. COATING) CS80156 SPRING WASHER M8 (E. COATING) CBW0015 WASHER, M8X16X1.2T, BLACK A.
  • Page 17 Step 2—Attach Front Stabilizer Tools Used in this Step Parts Used in this Step 6mm Ball End Allen Item Part Description Wrench UCS0015-35 SUBASSEMBLY, FRONT STABILIZER UCS0309 SCREW M8X70L (E. COATING) CS80156 SPRING WASHER M8 (E. COATING) CBW0015 WASHER, M8X16X1.2T, BLACK A.
  • Page 18 Step 3—Attach Seat Tools Used in this Step Parts Used in this Step 13mm/15mm/17mm Item Part Description Combination Wrench ESB0217 SUBASSEMBLY, UPRIGHT SEAT PS0101 LOCK NUT, M8, BLK C1093 WASHER, FLAT, M8, ZP A. Using the 13mm end of the 13mm/15mm/17mm combination wrench, remove the preassembled nuts and washers from the 3 threaded rods on the bottom of the seat.
  • Page 19 Step 4—Route Front Mast Cables Parts Used in this Step Item Part Description UCS0318-35 SUBASSEMBLY, UC900 CONSOLE MAST UCS0007BK SUBASSEMBLY, CONSOLE MAST BOOT W/GASKET A. Slide the mast boot up the front mast. B. Pull the cables coming from the front of the bike through the front mast using the provided pull tie. C.
  • Page 20 Step 5—Attach Front Mast Tools Used in this Step Parts Used in this Step 6mm Ball End Allen Item Part Description Wrench UCS0318-35 SUBASSEMBLY, UC900 CONSOLE MAST UCS0061 SCREW M8X20L (E. COATING) CS80156 SPRING WASHER M8 (E. COATING) CBW0015 WASHER, M8X16X1.2T, BLACK Using a 6mm ball end allen wrench, secure the front mast to the bike frame using 6 hex screws, 6 spring washers, and 6 fl...
  • Page 21 Step 6—Attach Mast Boot Tools Used in this Step Parts Used in this Step #2 Phillips Item Part Description Screwdriver UCS0007BK SUBASSEMBLY, CONSOLE MAST BOOT W/GASKET UCS0318-35 SUBASSEMBLY, UC900 CONSOLE MAST UCS0304 SCREW M5X10L,BLACK A. Pull the mast boot down onto the plastic shrouds at the bottom of the console mast. B.
  • Page 22 Step 7—Route Handlebar Cables While one person holds the handlebar securely in place, route the handlebar cables through the front mast. I/O Data Network Coaxial Power Heart Rate...
  • Page 23 Step 8—Attach Handlebar Tools Used in this Step Parts Used in this Step 6mm Ball End Allen Item Part Description Wrench UES9007-35 SUBASSEMBLY, HANDLEBAR UES900 FE0179 SHCS, M8 X P1.25 X 20MM CS80156 SPRING WASHER M8 (E. COATING) CS80157 WASHER, FLAT, 8MM X 16MM X 1.2MM, E COAT Using a 6mm ball end allen wrench, install the handlebar onto the front mast using 3 hex screws, 3 spring washers, and 3 fl...
  • Page 24 Step 9—Attach Storage Tray Tools Used in this Step Parts Used in this Step #2 Phillips Item Part Description Screwdriver UCS0025BK SUBASSEMBLY, IPOD TRAY W/CUP HOLDER TL0064 PRHMS M5-0.8x8 BLACK Using a #2 Phillips screwdriver, attach the storage tray to the mounting plate using 4 screws.
  • Page 25 Step 10—Attach Pedals Tools Used in this Step Parts Used in this Step 13mm/15mm/17mm Item Part Description Combination Wrench RCS0352BK FOOT PEDAL, LEFT RCS0353BK FOOT PEDAL, RIGHT Torque Wrench with 15mm Head A. Using the 15mm end of the 13mm/15mm/17mm combination wrench, attach each pedal to its corresponding crank. B.
  • Page 26 Step 11—Attach Console to Front Mast Tools Used in this Step Parts Used in this Step #2 Phillips Item Part Description Screwdriver CONSOLE UCS0318-35 SUBASSEMBLY, UC900 CONSOLE MAST A. If the console has three screws (00567700 // SCREW, M4-.7 X 12 PPHMS SEMS) preassembled, remove and set aside these screws.
  • Page 27 Step 12—Attach Front and Rear Console Covers Tools Used in this Step Parts Used in this Step #2 Phillips Item Part Description Screwdriver UCS0031BK SUBASSEMBLY, REAR CONSOLE COVER UCS0006BK COVER, CONSOLE, FRONT CS80131 SCREW M5X15L (BLACK) A. Using a #2 Phillips screwdriver, attach the front console cover to the front mast using 1 screw. NOTE: Be sure that the front console cover aligns with the storage tray around the handlebar.
  • Page 28 Step 13—Attach Cup Holders Parts Used in this Step Item Part Description UCS0010LBK HOLDER, CUP, LEFT UCS0010RBK HOLDER, CUP, RIGHT Insert each cup holder into its corresponding place on the storage tray as shown below.
  • Page 29 Step 14—Level the Machine Tools Used in this Procedure 13mm/15mm/17mm Combination Wrench A. Using the 13mm end of the 13mm/15mm/17mm combination wrench, adjust all four leveling feet until they contact the fl oor. IMPORTANT! Do not adjust the leveling feet to such a height that they detach or unscrew from the machine. B.
  • Page 30 Step 15—Connect the Power Adapter A. Make the correct power connections for the base and console: • If the console is a touchscreen use the 12V, 3A power adapter. • If the console is an LED use the 9V, 1.3A power adapter. B.

  • Page 31: Product Features

    PRODUCT FEATURES BASE OVERVIEW Contact Heart Console Rate Grip Assembly Contact Heart Rate Grip Seat Bottle Bottle Holder Holder Seat Adjustment Handle Pedals Power Inlet Leveling Feet Console Assembly—The console allows the user to set up a Pedals—Dual sided and weighted with integrated ratcheting workout program and control the machine during a workout.

  • Page 32: Console Overview

    CONSOLE OVERVIEW Touchscreen Console LED Console 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8...

  • Page 33: Care And Maintenance

    CARE AND MAINTENANCE It is important to perform the minor maintenance tasks described in this section. Failure to maintain the bike as described here could void the TRUE Warranty. To reduce the risk of electrical shock, always unplug the unit from its power source before cleaning or performing any maintenance tasks.

  • Page 34: Preventative Maintenance

    SCHEDULING QUARTERLY PREVENTATIVE MAINTENANCE TRUE recommends scheduling quarterly preventative maintenance with a qualifi ed service provider. Please contact your dealer or visit www.truefi tness.com to contact a local TRUE authorized service provider. QUARTERLY PREVENTATIVE MAINTENANCE • Record time, distance, and hours from the console. •...

  • Page 35: Additional Information

    ADDITIONAL INFORMATION TROUBLESHOOTING This troubleshooting information is intended to assist in diagnostics only and is not all inclusive. Technical specifi cations, error codes, and programming are subject to change without notice. TRUE accepts no liability for any damage or loss suffered by persons whom rely wholly or in part on any description or statement contained within this manual.

  • Page 37: Limited Warranty

    Coax/TV, HDMI, USB, mirroring or Ethernet Wear Items*** 180 Days connections, and safety key. All TRUE Fitness products are distributed by TRUE and are • The remedies described herein are your sole and warranted to the original registered product purchaser exclusive remedies and TRUE’...

  • Page 38: Warranty Registration

    • Complete the information below and mail to: TRUE Product Support base serial 865 Hoff Road number location St. Louis, MO 63366 UR1-0A-35 -0A-35 0A-35 24- UR10A001A 24- UR10A0 24- UR10A0 Rating: 9V DC, 40mA Warranty Registration Base Serial Number Console Serial Number (if applicable) NOTE: Some base units require a console serial number.
  • Page 40 1.800.883.8783 865 Hoff Road St. Louis, MO 63366 T R U E F I T N E S S . C O M MAN-UR1-0A-35 Owner’s Manual, Assembly Guide, and Warranty Card REV00 © 2024 TRUE Fitness All Rights Reserved...
