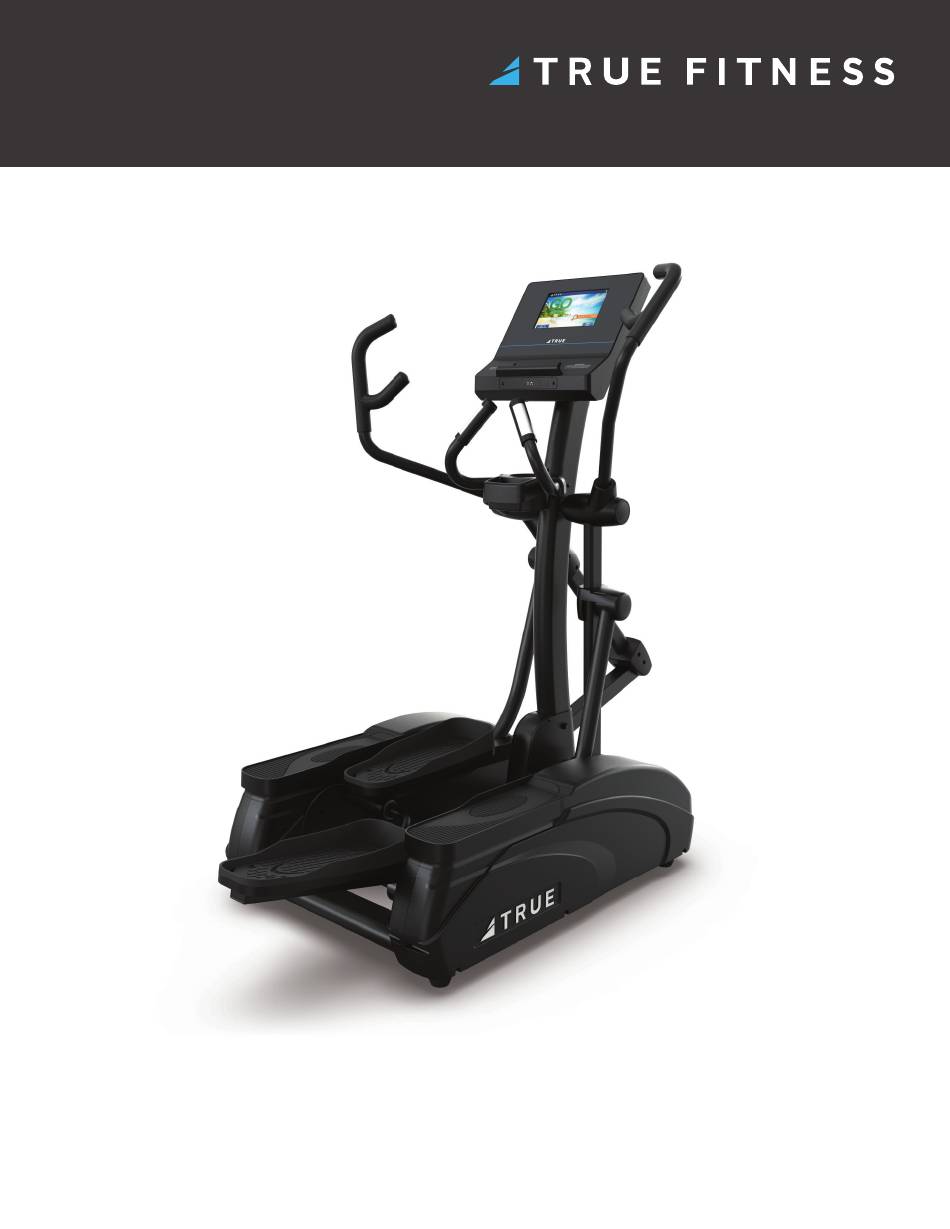

RESIDENTIAL
ELLIPTICAL
MODEL XR1-0A-35
MAN-XR1-0A-35 REV00
OWNER'S
MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XR1-0A-35 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for True Fitness XR1-0A-35

Summary of Contents for True Fitness XR1-0A-35

  • Page 1 RESIDENTIAL ELLIPTICAL OWNER’S MODEL XR1-0A-35 MANUAL MAN-XR1-0A-35 REV00...

  • Page 2: Important-Please Read

    IMPORTANT—PLEASE READ All products shown are prototype. Actual product delivered may vary. Product specifi cations, features, and software are subject to change without notice. For the most up-to-date version of this manual, please see our website: https://shop.truefi tness.com/customer-service/user-manuals/ CONTACTING OUR SUPPORT TEAM To contact TRUE for any of your pre or post installation questions, please call our toll-free numbers Monday - Friday 8:30am - 5:00pm (CST): •...

  • Page 3: Reporting Freight Claims Or Parts Damage

    REPORTING FREIGHT CLAIMS OR PARTS DAMAGE Unfortunately, sometimes materials can be damaged during shipment. If materials are damaged during shipment, please follow the guidelines below to determine the appropriate process for you to follow. Severe Damage—Obvious damage to external packaging and internal product. Please refuse the shipment and it will be returned to TRUE by the carrier.

  • Page 4: Table Of Contents

    TABLE OF CONTENTS SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS—SAVE THESE INSTRUCTIONS............5 POWER REQUIREMENTS..........................7 GROUNDING INSTRUCTIONS........................7 SPACE REQUIREMENTS...........................8 SPECIFICATIONS..........................8 WARNING DECALS...........................9 COMPLIANCES...........................9 PROPER USE............................10 ASSEMBLY INSTRUCTIONS PREASSEMBLY CHECKLIST........................11 ASSEMBLY STEPS..........................14 PRODUCT FEATURES BASE OVERVIEW............................25 CONSOLE OVERVIEW..........................26 CARE AND MAINTENANCE INSPECTION..........................27 CLEANING THE EQUIPMENT........................27 LEVELING THE EQUIPMENT........................27 PREVENTATIVE MAINTENANCE......................28 LONG TERM STORAGE...........................28...

  • Page 5: Safety Instructions

    SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS—SAVE THESE INSTRUCTIONS This equipment intended for in-home use only. Do not use this product in any commercial, rental, school or institutional setting. • Read and understand all instructions and warnings prior to use. • Obtain a medical exam before beginning any exercise program. If at any time during exercise you feel faint, dizzy, or experience pain, stop and consult your physician.
  • Page 6 • Use a TRUE AC power cord or AC/DC adapter only. • Always follow the console instructions for proper operation. • Position this product so the power cord plug is • Do not use the contact heart rate grips as a handlebar accessible to the user.

  • Page 7: Power Requirements

    (usually on the front of the unit). Depending on where you live voltage requirements grounded outlet differ. grounding pin Power Information Line Rated Number of Max Power Frequency Model Voltage Current Units per Plug/Outlet Dissipation (Hz) (Amps) Circuit (Watt) NEMA 5-15 XR1-0A-35 50/60Hz 1230...

  • Page 8: Space Requirements

    SPACE REQUIREMENTS TRUE recommends leaving a minimum of 24” (61cm) on each side of the equipment and a 79” (200cm) safety zone at the rear of the equipment. 24” (61cm) 24” 79” (61cm) (200cm) 24” (61cm) SPECIFICATIONS • DIMENSIONS (L X W X H) Footprint ◦...

  • Page 9: Warning Decals

    WARNING DECALS WARNING: Replace warning labels that may be worn, damaged, or missing. To replace any worn or missing decals contact TRUE product support (service@truefi tness.com | 800.883.8783). console serial number location base serial number location COMPLIANCES This equipment complies with all applicable codes and regulations. For a complete list of compliances, please visit www.truefi...

  • Page 10: Proper Use

    PROPER USE Proper Training Position • Users should keep both feet on the footpads (A) during the workout. • During a workout the user’ s hand should grasp the upper exercise arms (B). • Users should remain standing throughout the workout. Entry and Exit Safety To Enter: •...

  • Page 11: Assembly Instructions

    ASSEMBLY INSTRUCTIONS NOTE: Supplemental video available @TRUEFitnessservicevids. PREASSEMBLY CHECKLIST BASIC GUIDELINES FOR SETTING UP THE EQUIPMENT After removing the equipment from the packaging, place the equipment on a clean, level surface. Make sure the electrical cord easily reaches a grounded three-pronged outlet. DANGER: Do not use an extension cord or ungrounded outlet.

  • Page 12: Box Contents

    BOX CONTENTS ITEM DESCRIPTION Base Lower Frame Cover Console Mast Bullhorn Left Swing Arm Assembly Right Swing Arm Assembly Left Middle Pivot Cover Right Middle Pivot Cover Left Pedal Tube Right Pedal Tube Lower Pivot Covers Left Upper Exercise Arm Right Upper Exercise Left Upper Pivot Cover Right Upper Pivot Cover...

  • Page 13: Hardware Contents

    HARDWARE CONTENTS XR1-0A-35 HARDWARE PACK XR1-0A-35 HARDWARE PACK ITEM DESCRIPTION ITEM DESCRIPTION XM0148 BOLT, M10 X 1.5 X 135MM XM0128 SCREW, COARSE TAPERED , BLK BED PLASTIC M3-0.5 X 16MM XM0236 BHCS, M10 X 85MM X P1.5, BLK BED XM0234 BHCS, M10 X 80MM X P1.5, BLK BED...

  • Page 14: Assembly Steps

    ASSEMBLY STEPS Step 1—Attach Console Mast Tools Used in this Step Parts Used in this Step 6mm Allen Wrench Item Part Description XM0401-35 ASSEMBLY, MAST WITH WIRES XM0148 BHCS, M10 X 135MM X P1.5, BLK ZP 17mm Box End XM0234 BHCS, M10 X 80MM X P1.5, BLK ZP Wrench PS0033...
  • Page 15 Step 2—Attach Lower Frame Cover Tools Used in this Step Parts Used in this Step Phillips Item Part Description Screwdriver XM0135-71 COVER, XM LOWER FRAME PS0114 SCREW, COARSE PLASTIC M4-0.7 X 16MM BLK Using a Phillips screwdriver, attach the lower frame cover to the base using 6 screws. NOTE: Position the cables between the lower frame cover and the console mast.
  • Page 16 Step 3—Attach Bullhorn Tools Used in this Step Parts Used in this Step 4mm Allen Wrench Item Part Description XM011-35 SUBASSEMBLY, BULLHORN PLUS WIRES XM0025 WIRE, XM HR CABLE XM0168 BHCS, M6 X 15MM, BLK ZP A. Connect the bullhorn and console mast cables. B.
  • Page 17 Step 4—Attach Swing Arm Assembly Tools Used in this Step Parts Used in this Step 6mm Allen Wrench Item Part Description XM0107-39 SUBASSEMBLY, SWING ARM LEFT XM0108-39 SUBASSEMBLY, XM SWING ARM RIGHT Phillips XM0324-39 WELDMENT, XM DRIVE TUBE WITH BEARINGS Screwdriver XM0325-39 WELDMENT, XM DRIVE TUBE WITH BEARINGS...
  • Page 18 Step 4—Attach Swing Arm Assembly Continued D. Using a #2 Phillips screwdriver, attach the middle pivot covers to the swing arm assembly using 6 screws.
  • Page 19 Step 5—Attach Pedal Tubes Tools Used in this Step Parts Used in this Step 6mm Allen Wrench Item Part Description XM0110 SUBASSEMBLY, PEDAL TUBE LEFT XM0111 SUBASSEMBLY, PEDAL TUBE RIGHT 17mm Box End XM0133-71 COVER, XM LOWER PIVOT Wrench XM0134-71 COVER, XM LOWER PIVOT XM0236 BHCS, M10 X 85MM X P1.5, BLK ZP...
  • Page 20 Step 5—Attach Pedal Tubes Continued B. Using a Phillips screwdriver, attach the lower pivot covers using 8 screws.
  • Page 21 Step 6—Attach Upper Exercise Arms Tools Used in this Step Parts Used in this Step 6mm Allen Wrench Item Part Description XM0016-35 SUBASSEMBLY, XM MULTI GRIP L XM0017-35 SUBASSEMBLY, XM MULTI GRIP R Phillips XM0126-71 COVER, XM REAR UPPER PIVOT LEFT Screwdriver XM0124-71 COVER, XM FRONT UPPER PIVOT LEFT...
  • Page 22 Step 7—Attach Console Tools Used in this Step Parts Used in this Step #2 Phillips Item Part Description Screwdriver XM0401-35 ASSEMBLY, MAST WITH WIRES A. If the console has three screws (00567700 // SCREW, M4-.7 X 12 PPHMS SEMS) preassembled, remove and set aside these screws.
  • Page 23 Step 8—Connect the Power Adapter A. Make the correct power connections for the base and console: • If the console is a touchscreen use the 12V, 3A power adapter. • If the console is an LED use the 9V, 1.3A power adapter. B.
  • Page 24 Step 9—Level the Machine Tools Used in this Procedure 17mm Wrench A. Using a 17mm wrench, adjust all four leveling feet until they contact the fl oor. IMPORTANT! Do not adjust the leveling feet to such a height that they detach or unscrew from the machine. B.

  • Page 25: Product Features

    PRODUCT FEATURES BASE OVERVIEW Upper Exercise Console Assembly Upper Exercise Contact Heart Contact Heart Rate Grip Rate Grip Power Cord Inlet Foot Pad Side Step Side Step Foot Pad Leveling Feet Console Assembly—The console allows the user to set up a Side Steps workout program and control the machine during a workout.

  • Page 26: Console Overview

    CONSOLE OVERVIEW Touchscreen Console LED Console 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8...

  • Page 27: Care And Maintenance

    CARE AND MAINTENANCE It is important to perform the minor maintenance tasks described in this section. Failure to maintain the elliptical as described here could void the TRUE Warranty. To reduce the risk of electrical shock, always unplug the unit from its power source before cleaning or performing any maintenance tasks.

  • Page 28: Preventative Maintenance

    SCHEDULING QUARTERLY PREVENTATIVE MAINTENANCE TRUE recommends scheduling quarterly preventative maintenance with a qualifi ed service provider. Please contact your dealer or visit www.truefi tness.com to contact a local TRUE authorized service provider. QUARTERLY PREVENTATIVE MAINTENANCE • Record time, distance, and hours from the console. •...

  • Page 29: Additional Information

    ADDITIONAL INFORMATION TROUBLESHOOTING This troubleshooting information is intended to assist in diagnostics only and is not all inclusive. Technical specifi cations, error codes, and programming are subject to change without notice. TRUE accepts no liability for any damage or loss suffered by persons whom rely wholly or in part on any description or statement contained within this manual.

  • Page 30: Limited Warranty

    Coax/TV, HDMI, USB, mirroring or Ethernet Wear Items*** 180 Days connections, and safety key. All TRUE Fitness products are distributed by TRUE and are • The remedies described herein are your sole and warranted to the original registered product purchaser exclusive remedies and TRUE’...

  • Page 31: Warranty Registration

    WARRANTY REGISTRATION Thank you for purchasing a TRUE product! PLEASE RETAIN THIS PORTION FOR YOUR RECORDS To validate your product warranty, you must register BASE SERIAL NUMBER: your product within 30 days of purchaser’ s receipt of this CONSOLE SERIAL NUMBER: product.
  • Page 32 1.800.883.8783 865 Hoff Road St. Louis, MO 63366 T R U E F I T N E S S . C O M MAN-XR1-0A-35 Owner’s Manual, Assembly Guide, and Warranty Card REV00 © 2024 TRUE Fitness All Rights Reserved...
