XFW5710
SEATED CALF
MODEL XFW5710
(MAN-XFW5710 REV00)
SCAN FOR UP-TO-DATE
OWNER'S MANUAL
OWNER'S
MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XFW5710 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for True Fitness XFW5710

Summary of Contents for True Fitness XFW5710

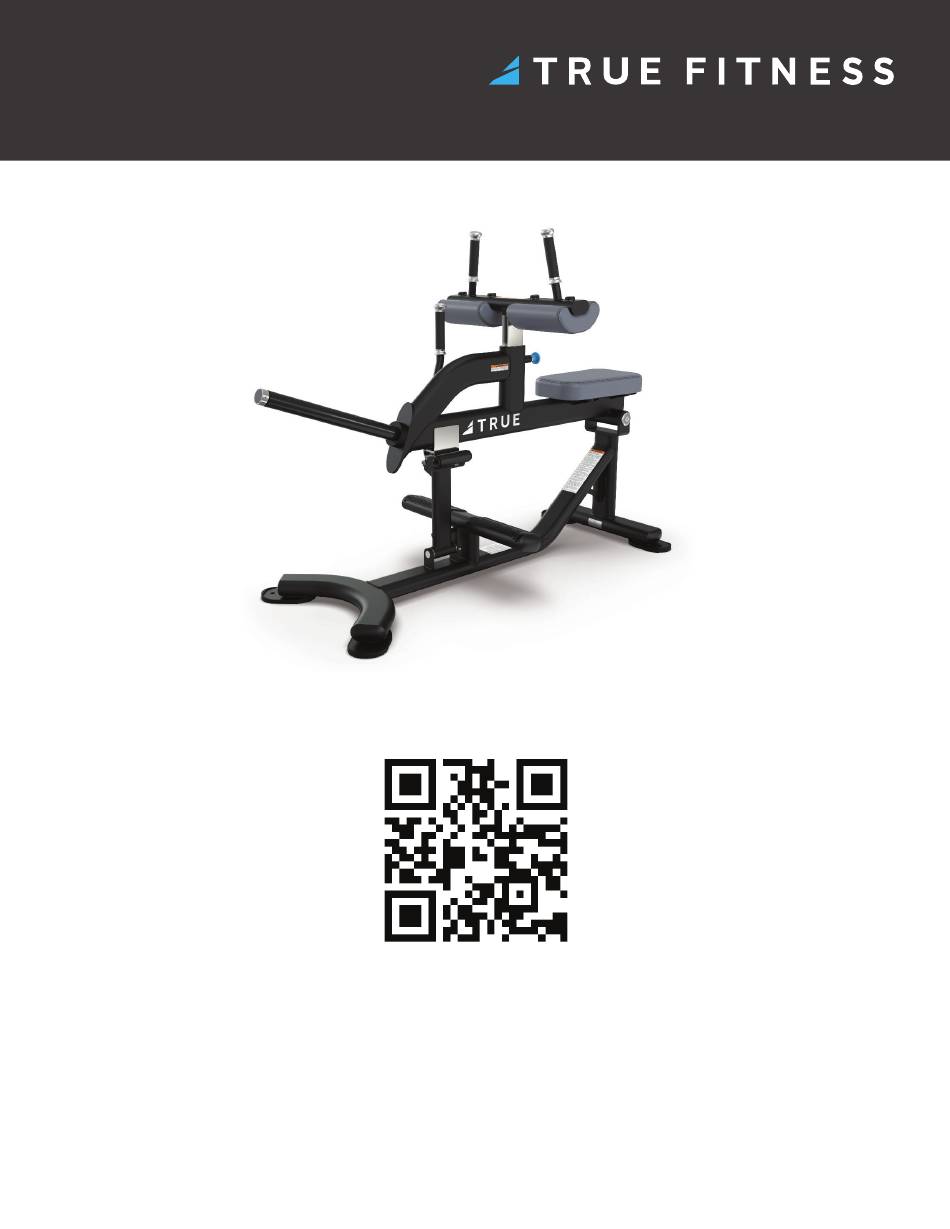

  • Page 1 XFW5710 SEATED CALF SCAN FOR UP-TO-DATE OWNER’S MANUAL OWNER’S MODEL XFW5710 MANUAL (MAN-XFW5710 REV00)

  • Page 3: Important-Please Read

    IMPORTANT—PLEASE READ All products shown are prototype. Actual product delivered may vary. Product specifi cations, features, and software are subject to change without notice. For the most up-to-date version of this manual, please see our website: https://truefi tness.com/services-support/user- manuals/ CONTACTING OUR SUPPORT TEAM To contact TRUE for any of your pre or post installation questions, please call our toll-free numbers Monday - Friday 8:30am - 5:00pm (CST): •...

  • Page 4: Reporting Freight Claims Or Parts Damage

    REPORTING FREIGHT CLAIMS OR PARTS DAMAGE Unfortunately, sometimes materials can be damaged during shipment. If materials are damaged during shipment, please follow the guidelines below to determine the appropriate process for you to follow. Severe Damage—Obvious damage to external packaging and internal product. Please refuse the shipment and it will be returned to TRUE by the carrier.

  • Page 5: Table Of Contents

    TABLE OF CONTENTS SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS—SAVE THESE INSTRUCTIONS..................6 GENERAL CARE AND MAINTENANCE............................8 COMMERCIAL MAINTENANCE SCHEDULE..........................9 COMPLIANCES..................................9 DIMENSIONS AND WEIGHTS..............................10 LABEL LOCATIONS.................................11 WARNING AND INTENDED USE LABELS..........................11 ASSEMBLY INSTRUCTIONS PREASSEMBLY CHECKLIST..............................13 ASSEMBLY STEPS..................................16 PREVENTATIVE MAINTENANCE DAILY INSPECTION AND MAINTENANCE..........................21 WEEKLY INSPECTION AND MAINTENANCE..........................21 OTHER SCHEDULED PREVENTATIVE MAINTENANCE......................21 CLEANING THE EQUIPMENT..............................22...

  • Page 6: Safety Instructions

    SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS—SAVE THESE INSTRUCTIONS FACILITY AND USER SAFETY PRECAUTIONS • Review and understand all of the warning labels affi xed to this machine and on the facility safety sign. • Be certain that the machine operation is understood before it is used. Refer to the instructional procedure label affi xed to the machine.

  • Page 7: Installation Safety Precautions

    INSTALLATION SAFETY PRECAUTIONS • Read this installation manual entirely before assembling this equipment. • Verify that there is adequate space surrounding this piece of equipment for safe access and operation. Installation must meet ADA requirements for accessibility. • Install this piece of equipment on a solid level surface that does not deviate more than 1/8” over a 10’ distance (or as defi...

  • Page 8: General Care And Maintenance

    GENERAL CARE AND MAINTENANCE IMPORTANT Preventative maintenance is crucial to maintaining the function and safety of this equipment. Your facility must establish written guidelines for preventative maintenance and keep written or online records of the maintenance performed on these products. As a minimum, the items presented in the SAFETY section of this document and the items that follow here, should be included in your maintenance program.

  • Page 9: Commercial Maintenance Schedule

    COMMERCIAL MAINTENANCE SCHEDULE Commercial Maintenance Schedule Daily Weekly Monthly 6 Months Annually Inspect all nuts and bolts and tighten if needed. Inspect safety catches, stop rods, and their fasteners. Replace at the fi rst sign of wear. Inspect all anti-slip surfaces and replace as needed. Inspect all accessory bars and handles.

  • Page 10: Dimensions And Weights

    DIMENSIONS AND WEIGHTS • ASSEMBLED DIMENSIONS (W X L X H) 25" x 60” x 44” / 63 cm x 152 cm x 111 cm HEIGHT 44” 111 cm WIDTH LENGTH 25” 60” 63 cm 152 cm ∙ PRODUCT WEIGHT 120 lbs / 54 kg ∙...

  • Page 11: Label Locations

    LABEL, XFW GENERAL WARNING B2065 LABEL, WARNING, COMPLETELY INSERT PIN LBL-WRN-0013 LABEL, SUPPORT LIFTING ARM WITH CATCH SL-XFW5710-35 LABEL, SERIAL NUMBER WARNING AND INTENDED USE LABELS WARNING: Replace all labels that may be worn, damaged, or missing. To replace any worn or missing decals contact TRUE product support (service@truefi tness.com | 800.883.8783).
  • Page 12 LBL-WRN-0013 B2065 (Completely Insert Pin) SERIOUS INJURY CAN OCCUR ON THIS EQUIPMENT IF THE PIN IS NOT COMPLETELY INSERTED BEFORE USE. SL-XFW5710-35 (Serial Number) TRUE FITNESS TECHNOLOGY, INC 865 HOFF RD, ST LOUIS MISSOURI 63366 USA MODEL NO: XFW5710-35 SERIAL NO: 25-XFW571000A...

  • Page 13: Assembly Instructions

    ASSEMBLY INSTRUCTIONS NOTE: Supplemental video available on YouTube: https://www.youtube.com/@TRUEFitnessservicevids PREASSEMBLY CHECKLIST CAUTION: Use caution when assembling this product. Unpacking and assembling this product requires two or more people. Use caution when unpacking this product. Avoid damage to the product and product pads. DO NOT use a box cutter.

  • Page 14: Box Contents

    BOX CONTENTS BOX CONTENTS Item Image Item Image Main Frame Hardware pack Manual Support Arm Pivot Arm Thigh Pad Frame Tapered Pad Thigh Pad Pivot Arm Axle...
  • Page 15 HARDWARE PACK CONTENTS XFW5710 HARDWARE PACK XFW5710 HARDWARE PACK ITEM DESCRIPTION ITEM DESCRIPTION HH SCREW, 3/8"-16, 2-3/4" CAP, PLASTIC, BOLT CAP, BLACK C 451 C 955BK HHS, 3/8"-16, 1-1/4" SHCS, 5/16"-18 X 1" C 446 C 616 LOCK WASHER, 3/8", ZP SHCS, 10-32, 1/2"...

  • Page 16: Assembly Steps

    ASSEMBLY STEPS STEP 1—ATTACH SUPPORT ARM ASSEMBLY TO THE MAIN FRAME ASSEMBLY Tools Used in this Step Parts Used in this Step 5/32" Allen Wrench ITEM PART# DESCRIPTION XFW-5711-00X-35 SUBASSEMBLY, MAIN FRAME XFW-5750-00X ASSEMBLY, SUPPORT ARM XFW-5700-100 AXLE, SUPPORT ARM PIVOT C 603A SHCS, 10-32, 1/2"...
  • Page 17 STEP 2—ATTACH PIVOT ARM ASSEMBLY TO THE MAIN FRAME ASSEMBLY Parts Used in this Step Tools Used in this Step ITEM PART# DESCRIPTION 7/32" Allen Wrench XFW-5700-00X-35 ASSEMBLY, PIVOT ARM XFW-5700-99 AXLE, PIVOT ARM C 659ZP FHCS, 3/8"-16 X 1-1/4", ZP, LOCK PATCH SD0092 CAP, ALUMINUM 50 X 10.5 X 8 Rubber Mallet...
  • Page 18 STEP 3—ATTACH THIGH PAD FRAME ASSEMBLY TO THE PIVOT ARM ASSEMBLY Tools Used in this Step Parts Used in this Step 1/4" Allen Wrench ITEM PART# DESCRIPTION XFW-5740-00X-35 SUBASSEMBLY, THIGH PAD FRAME C 616 SHCS, 5/16"-18 X 1" A. Slide the thigh pad frame assembly into the pivot arm assembly. B.
  • Page 19 STEP 4—ATTACH PADS TO THE THIGH PAD FRAME AND PIVOT ARM ASSEMBLIES Tools Used in this Step Parts Used in this Step 9/16" Socket ITEM PART# DESCRIPTION Wrench PAD-ST004-00X PAD, SEAT, TAPERED, BLACK WITH SINGLE BLACK STITCH PAD-AX004-00X PAD, THIGH, BLACK WITH SINGLE BLACK STITCH C 446 HHS, 3/8"-16, 1-1/4"...
  • Page 20 STEP 5—VERIFY ALL ADJUSTMENTS FUNCTION AS INTENDED Pull the pop pin on the pivot arm assembly out and place it into each of the adjustment holes for the thigh pad frame assembly. NOTE: The thigh pad frame assembly has fi ve adjustment holes. IMPORTANT! Verify the pin inserts in and out of each hole completely.

  • Page 21: Preventative Maintenance

    PREVENTATIVE MAINTENANCE Preventative maintenance is crucial to maintaining the function and safety of this equipment. Your facility must establish written guidelines for preventative maintenance and keep written or online records of the maintenance performed on these products. As a minimum, the items presented in the Safety Instructions section of this document and the items that follow here, should be included in your maintenance program.

  • Page 22: Cleaning The Equipment

    CLEANING THE EQUIPMENT Daily Cleaning Wipe all machines with a water dampened cloth and dry completely. This includes painted parts, chrome plated parts, plastic parts, and upholstered pads. It is important not to leave parts damp. This will increase the potential for corrosion to occur. CAUTION: Certain anti-bacterial cleaners and other harsh cleaning agents can induce corrosion on the machine components.

  • Page 23: Warranty Information

    fi lled in, signed by the original purchaser, and mailed to TRUE. **Labor warranty is available for equipment located within United States. TRUE Fitness equipment is automatically covered under a 6-month Limited Labor Warranty. This 6-month Limited Labor Warranty begins from the date of purchase shown by a valid receipt.

  • Page 24: Warranty Details

    WARRANTY DETAILS All TRUE Fitness products are distributed by TRUE and are warranted to the original product purchaser and the parts of the TRUE product (the “Product”) listed below. During the applicable Warranty Period, the Product, under normal use and service, shall be free of manufacturing defects in workmanship and materials.

  • Page 25: Warranty Registration

    QR Code: Scan the QR code below with your smartphone to be base serial taken directly to the registration page. number location TRUE FITNESS TECHNOLOGY, INC 865 HOFF RD, ST LOUIS MISSOURI 63366 USA OURI 63366 OURI 63366 • By Mail:...
  • Page 28 1.800.883.8783 865 Hoff Road St. Louis, MO 63366 T R U E F I T N E S S . C O M MAN-XFW5710 Owner’s Manual, Assembly Guide, and Warranty Card REV00 © 2025 TRUE Fitness All Rights Reserved...
