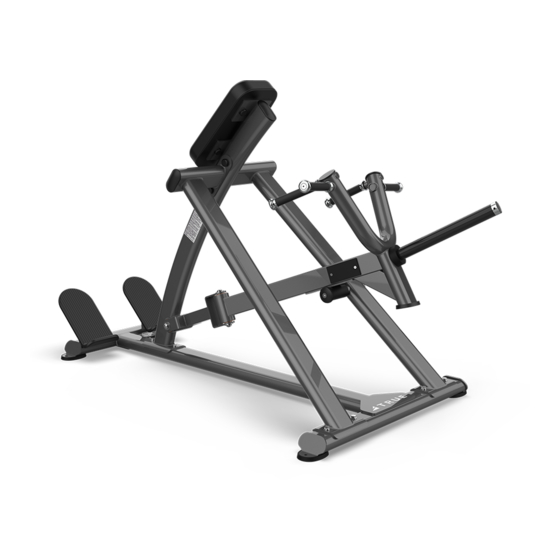

- Page 1 XFW5500 EVER NSTALLATION ANUAL AM-XFW5500 REV: 010913 ECN E00172A...
- Page 2 For your convenience, product questions can be answered by an Authorized Paramount Dealer or by contacting a TRUE Fitness Customer Service Representative at: 1-800-883-8783 or 1-800-721-2121 Office hours are Monday-Friday, 8:00 am - 5:00 pm CST Or email us at service@truefitness.com or paramountservice@truefitness.com...
-
Page 3: Table Of Contents
ABLE ONTENTS ......................AFETY ..............ENERAL ARE AND AINTENANCE & W ............... ACHINE IMENSIONS EIGHTS ......................SSEMBLY ....................ARTS IAGRAM & W ..............NTENDED ARNING ABELS ......................ARRANTY... -
Page 4: Safety
AFETY ACILITY AND AFETY RECAUTIONS 1. Review and understand all of the warning labels affixed to this machine and on the facility safety sign. 2. Be certain that the machine operation is understood before it is used. Refer to the instructional Procedure Label affixed to the machine. - Page 5 AFETY 12d. This equipment is designed for standard olympic size weight plates with a 50mm bore (1.9”). 12e. Do not exceed the maximum weight capacity of the machine. Maximum plate size is 45 lbs. (25 kg.). 13. On Selectorized and Cable equipped machines: 13a.
- Page 6 AFETY AINTENANCE AFETY RECAUTIONS 1. Refer to Maintenance Schedule label on the machine as well as this manual for when to perform maintenance. 2. Check the function of your machine DAILY by verifying the following: • Inspect cables and end fittings for any signs of wear. Replace if worn, frayed or damaged with original Paramount replacement components.
-
Page 7: General Care And Maintenance
13. Be sure all hardware is tight before using the machine. Retain these instructions for future reference. If you have any questions, do not hesitate to contact your Paramount dealer or TRUE Fitness at (800) 883-8783 or (800)721-2121 or service@truefitness.com or paramountservice@truefitness.com... -
Page 8: Machine Dimensions & Weights
IMENSIONS AND EIGHTS Carton Size: 67.5” X 40” X 19.5” 172 cm x 102cm x 49 cm Carton Weight (as shipped) = 214lbs (97 kg.) Assembled Weight (as shown) = 187 lbs (85 kg.) Maximum User Weight = 300 lbs. (136 kg.) Maximum Load Capacity: (user + lifted weight) = 660 LBS. -
Page 9: Assembly
SSEMBLY Tools Required: 14mm (9/16”) socket wrench Ratchet Handle 14mm (9/16”) box/open end wrench 6mm, 5/16” hex (allen) wrenches... -
Page 10: Parts Diagram
ARTS IAGRAM... - Page 11 ARTS IAGRAM...
- Page 12 ARTS IAGRAM...
-
Page 13: Intended Use & Warning Labels
& W NTENDED ARNING ABELS INTENDED USE 1. This bench is intended to support the user in an incline position while performing row exercises. 2. Stand on this bench with feet supported on foot platforms when doing exercise. 3. DO NOT drop the weight at the completion of the exercise. Return the arm in a controlled manner to the stop position. -
Page 14: Warranty
ARAMOUNT IMITED ARRANTY READ PARAMOUNT’S WARRANTY SET FORTH BELOW PRIOR TO USING PARAMOUNT PRODUCTS. BY INITIAL USE OF PARAMOUNT PRODUCT YOU ARE CONSENTING TO BE BOUND BY THE FOLLOWING WARRANTY TERMS AND CONDITIONS. THE WARRANTY PERIODS COMMENCE ON THE INVOICE DATE OF THE ORIGINAL PURCHASE. LABOR COVERED DURING WARRANTY PERIODS REQUIRES PRIOR AUTHORIZATION OF PARAMOUNT. - Page 16 TRUE Fitness 865 Hoff Road O'Fallon, MO 63366 Phone: 1-800-883-8783 or 1-800-721-2121 www.truefitness.com...
