SPL0200
SEATED LEG CURL
MODEL SPL0200
(MAN-SPL0200 REV07)
SCAN FOR UP-TO-DATE
OWNER'S MANUAL
SCAN FOR
ASSEMBLY VIDEO
OWNER'S
MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SPL0200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for True Fitness SPL0200

Summary of Contents for True Fitness SPL0200

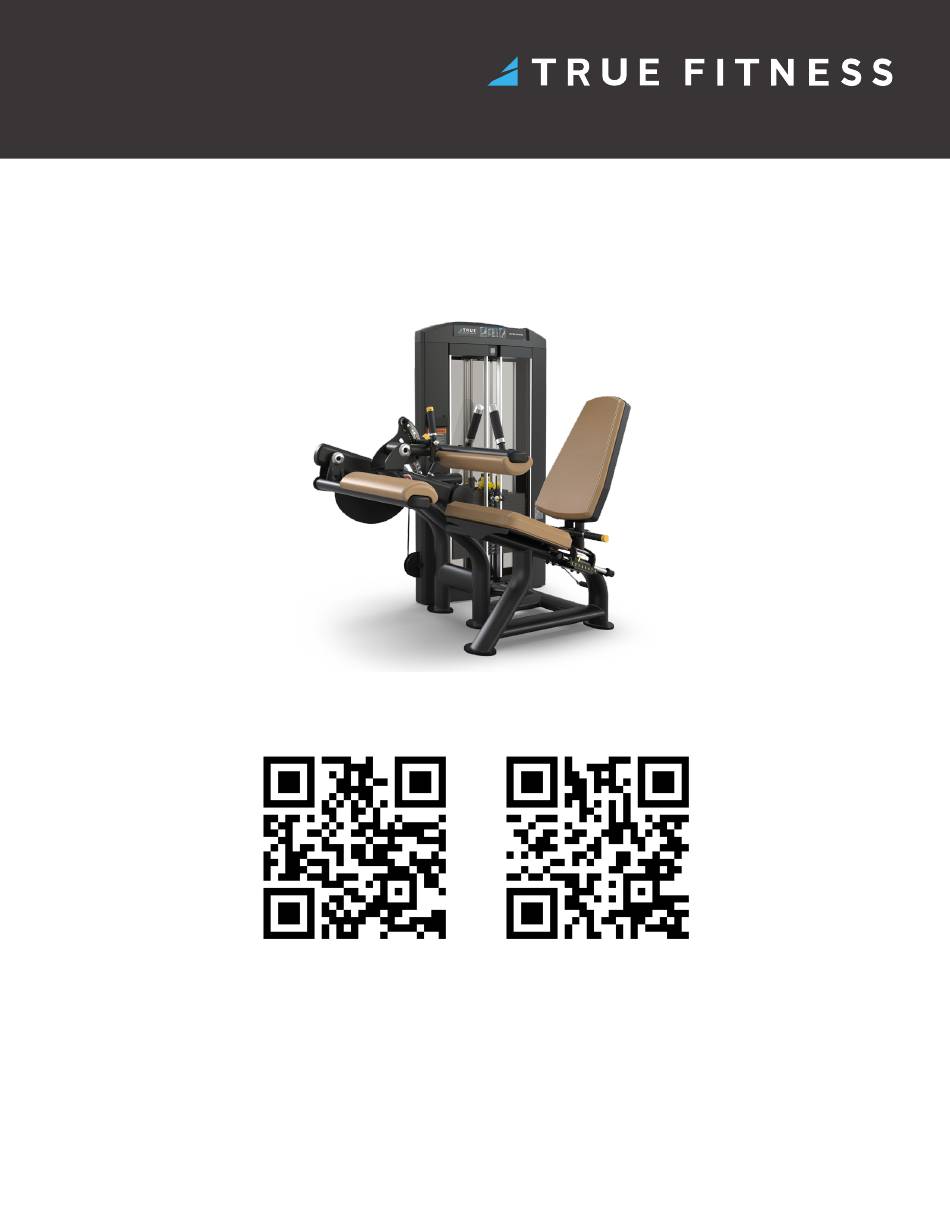

  • Page 1 SPL0200 SEATED LEG CURL SCAN FOR UP-TO-DATE SCAN FOR OWNER’S MANUAL ASSEMBLY VIDEO OWNER’S MANUAL MODEL SPL0200 (MAN-SPL0200 REV07)

  • Page 2: Important-Please Read

    IMPORTANT—PLEASE READ All products shown are prototype. Actual product delivered may vary. Product specifications, features, and software are subject to change without notice. For the most up-to-date version of this manual, please see our website: https://truefitness.com/services-support/user-manuals/ CONTACTING OUR SUPPORT TEAM To contact TRUE for any of your pre or post installation questions, please call our toll-free numbers Monday - Friday 8:30am - 5:00pm (CST): •...

  • Page 3: Reporting Freight Claims Or Parts Damage

    REPORTING FREIGHT CLAIMS OR PARTS DAMAGE Unfortunately, sometimes materials can be damaged during shipment. If materials are damaged during shipment, please follow the guidelines below to determine the appropriate process for you to follow. Severe Damage—Obvious damage to external packaging and internal product. Please refuse the shipment and it will be returned to TRUE by the carrier.

  • Page 4: Table Of Contents

    TABLE OF CONTENTS SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS—SAVE THESE INSTRUCTIONS..................5 GENERAL CARE AND MAINTENANCE.............................7 COMMERCIAL MAINTENANCE SCHEDULE..........................8 COMPLIANCES..................................8 DIMENSIONS AND WEIGHTS..............................9 SHROUD OPTIONS...................................9 WEIGHT STACK CONFIGURATIONS............................10 WARNING AND INTENDED USE LABELS..........................11 ASSEMBLY INSTRUCTIONS PREASSEMBLY CHECKLIST..............................13 ASSEMBLY STEPS..................................15 PREVENTATIVE MAINTENANCE DAILY INSPECTION AND MAINTENANCE..........................35 WEEKLY INSPECTION AND MAINTENANCE..........................35 OTHER SCHEDULED PREVENTATIVE MAINTENANCE......................36 CLEANING THE EQUIPMENT..............................36...

  • Page 5: Safety Instructions

    SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS—SAVE THESE INSTRUCTIONS FACILITY AND USER SAFETY PRECAUTIONS • Review and understand all of the warning labels affixed to this machine and on the facility safety sign. • Be certain that the machine operation is understood before it is used. Refer to the instructional procedure label affixed to the machine.

  • Page 6: Installation Safety Precautions

    INSTALLATION SAFETY PRECAUTIONS • Read this installation manual entirely before assembling this equipment. • Verify that there is adequate space surrounding this piece of equipment for safe access and operation. Installation must meet ADA requirements for accessibility. • Install this piece of equipment on a solid level surface that does not deviate more than 1/8” over a 10’ distance (or as defined and required by local building and architectural codes.) •...

  • Page 7: General Care And Maintenance

    GENERAL CARE AND MAINTENANCE IMPORTANT Preventative maintenance is crucial to maintaining the function and safety of this equipment. Your facility must establish written guidelines for preventative maintenance and keep written or online records of the maintenance performed on these products. As a minimum, the items presented in the SAFETY section of this document and the items that follow here, should be included in your maintenance program.

  • Page 8: Commercial Maintenance Schedule

    COMMERCIAL MAINTENANCE SCHEDULE Commercial Maintenance Schedule Daily Weekly Monthly 6 Months Annually Inspect cables for wear, tension, and proper connection if equipped. Replace at the first sign of wear. Inspect cable length and cable end fittings. Replace at the first sign of wear. Inspect all nuts and bolts and tighten if needed.

  • Page 9: Dimensions And Weights

    190 lbs / 87 kg 250 lbs / 114 kg 310 lbs / 141 kg LENGTH HEIGHT 60” 58” 152 cm 147 cm WIDTH 48” 122 cm SHROUD OPTIONS Shroud Options Shrouds Model Description Acrylic Metal SPL0200 Seated Leg SPLSRDPS SPLSRDMS Curl...

  • Page 10: Weight Stack Configurations

    Number of Weight Plates* Number of Bumpers Top Weight Model Description Light (L) Standard Heavy (H) Light (L) Standard Heavy (H) Generation 2 SPL0200 Seated Leg SPL-00- Curl TPL300X SPL-ADRWT * One box contains four 15lb / 6.8kg weight plates. REV03...

  • Page 11: Warning And Intended Use Labels

    Replace all labels that may be worn, damaged, or missing. .25 radius on corners To replace any worn or missing decals contact TRUE product support (service@truefitness.com | 800.883.8783). PMS 152C TRUE FITNESS TECHNOLOGY, INC 865 HOFF RD, ST LOUIS MISSOURI 63366 USA MODEL NO: SPL0200 SERIAL NO: 25-SPL0200000 SERIOUS INJURY CAN OCCUR ON THIS EQUIPMENT.
  • Page 12 # LBL-ADJ-SPL008 Generation 2 NEE ALIGNMENT LABEL LBL-ADJ-SPL010 Pantone 186c LBL-ADJ-SPL007 2.331” 4.492” LBL-WS-SPL310 LBL-QR-SPL0200 ALIGN .8744” KNEES LBL-ADJ-SPL018 4.58” LBL-ADJ-SPL008 2” S E AT E D L E G C U RL P A L L A D I U M S E R I E S...

  • Page 13: Assembly Instructions

    ASSEMBLY INSTRUCTIONS PREASSEMBLY CHECKLIST CAUTION: Use caution when assembling this product. Unpacking and assembling this product requires two or more people. Use caution when unpacking this product. Avoid damage to the product and product pads. DO NOT use a box cutter. DO NOT slice into the packaging. VERIFY BOX CONTENTS IMPORTANT! Please verify all box contents.
  • Page 14 SPL-00-RCK001 HOLDER, PHONE SPL02PDKT SEATED LEG CURL PAD KIT SPL-00-CVR021 CAP, UPRIGHT SPL-00-CVR022 TRAY, UPRIGHT COVER SPL-02-CBL000 SUBASSEMBLY, CABLE SPL0200 SPLSRDPS* SHROUD SET SHORT ACRYLIC, SPL SPLSRDMS* SHROUD SET, SPL, SHORT METAL SPL-00-GRD101X GUIDE ROD ASSEMBLY 11** SPL-00-WBR002** WEIGHT STACK BUMPER...

  • Page 15: Assembly Steps

    ASSEMBLY STEPS STEP 1—ATTACH MAIN FRAME ASSEMBLY TO UPRIGHT ASSEMBLY NOTE: Supplemental assembly video available on vimeo.com: https://vimeo.com/723458894?share=copy. TOOL NEEDED ITEM PART DESCRIPTION Allen Wrench SPL-02-MFR400X MAIN FRAME ASSEMBLY SPL-02-UPR300X UPRIGHT ASSEMBLY C 623A SHCS, 3/8"-16, 1" BLK ZP C 749B LOCK WASHER, 3/8”, BLK ZP C 754B WASHER, FLAT, 3/8”...
  • Page 16 STEP 1—ATTACH MAIN FRAME ASSEMBLY TO UPRIGHT ASSEMBLY CONTINUED B. Align the main frame assembly with the upright assembly. Using an allen wrench, attach the main frame assembly to the upright assembly using the 6 hex screws, 6 lock washers, and 4 flat washers you removed previously. NOTE: To help align parts, loosely attach all screws before fully tightening.
  • Page 17 SPL-02-BKT002 SPACER SD0183 PULLEY 114MM Socket Wrench SPL-02-CAM001 SPL-01-CAP201 CAP, CAM SPL-02-CBL000 SUBASSEMBLY, CABLE SPL0200 SPL-00-CBL001 CABLE BLOCK C1258 LPSHCS, 3/8”-16 X 1-3/4” E-COAT C 766A LOCK NUT, 3/8”-16 X 17/64”, NYLON C 754B WASHER, FLAT, 3/8” SAE, BLK C 629A LPSHCS, 3/8”-16 X 2”...
  • Page 18 STEP 2—ROUTE CABLE THROUGH UPRIGHT AND MAIN FRAME ASSEMBLIES CONTINUED A. Using an allen wrench and a socket wrench or open end wrench, remove and set aside the top upright pulleys using 2 hex screws, 4 flat washers, and 2 lock nuts. B.
  • Page 19 STEP 2—ROUTE CABLE THROUGH UPRIGHT AND MAIN FRAME ASSEMBLIES CONTINUED C. Route the cable through the top of the upright assembly and around the pulleys. D. Using an allen wrench and a socket wrench or open end wrench, reattach the top upright pulleys using 2 hex screws, 4 flat washers, and 2 lock nuts.
  • Page 20 STEP 2—ROUTE CABLE THROUGH UPRIGHT AND MAIN FRAME ASSEMBLIES CONTINUED G. Using an allen wrench, remove and set aside Using an allen wrench, reattach the cam assembly the cam assembly and cable block using 4 hex using 4 hex screws, 5 lock washers, and 1 shorter screws, 5 lock washers, and 1 shorter hex screw.
  • Page 21 SPL-00-GRD101X GUIDE ROD ASSEMBLY Cloth SPL-00-WBR002* WEIGHT STACK BUMPER SPL-00-PIN030X SUBASSEMBLY, SELECTORY PIN SPL-02-CBL000 SUBASSEMBLY, CABLE SPL0200 Lubricant D1261 CABLE BOLT FTG, 1/2-13 X 1-3/4” C 623A SHCS, 3/8"-16, 1" BLK ZP C 749B LOCK WASHER, 3/8”, BLK ZP C 754B WASHER, FLAT, 3/8”...
  • Page 22 STEP 3—ATTACH WEIGHT STACK TO UPRIGHT ASSEMBLY CONTINUED A. Using an allen wrench, remove and set aside the guide rod bracket from the upright assembly using 2 hex screws, 2 lock washers, and 2 flat washers. B. Slide the 2 guide rods into place on the upright assembly.
  • Page 23 STEP 3—ATTACH WEIGHT STACK TO UPRIGHT ASSEMBLY CONTINUED E. Using an allen wrench, reattach the guide rod bracket to the upright assembly using 2 hex screws, 2 lock washers, and 2 flat washers.
  • Page 24 STEP 3—ATTACH WEIGHT STACK TO UPRIGHT ASSEMBLY CONTINUED F. Insert the selector pin and route the cable down through the hole on the upright assembly. Using an open end wrench, attach the cable bolt to the top weight assembly. IMPORTANT! A minimum of 1/2" (12.7 mm) of the threaded portion of the cable bolt must be threaded into the top weight assembly.
  • Page 25 STEP 3—ATTACH WEIGHT STACK TO UPRIGHT ASSEMBLY CONTINUED H. Insert the hex screw through the lock washer, flat washer, and selector pin attachment and reattach it to the top weight assembly using an allen wrench. Using a degreaser and cloth, remove oil from the weight plates that was applied for anti corrosion during the manufacturing process.
  • Page 26 STEP 3—ATTACH WEIGHT STACK TO UPRIGHT ASSEMBLY CONTINUED J. After selecting the appropriate weight stack label, peel and remove the backing from the weight stack label. Using the selector pin retainer tube and the selector pin in the heaviest weight plate option, align the weight stack label with the plates.
  • Page 27 STEP 4—ATTACH ACRYLIC SHROUDS TO UPRIGHT ASSEMBLY NOTE: Supplemental acrylic shroud video available on vimeo.com: https://vimeo.com/723539522?share=copy. NOTE: Supplemental metal shroud video available on vimeo.com: https://vimeo.com/774417897?share=copy. TOOLS NEEDED ITEM PART DESCRIPTION Allen Wrench SPL-02-UPR300X UPRIGHT ASSEMBLY SPLSRDPS* SHROUD SET SHORT ACRYLIC, SPL SPLSRDMS* SHROUD SET, SPL, SHORT METAL Flat Head Screwdriver...
  • Page 28 STEP 4—ATTACH ACRYLIC SHROUDS TO UPRIGHT ASSEMBLY CONTINUED B. Assemble the acrylic front shrouds and insert them into the upright assembly using a rubber mallet. C. Using an allen wrench and a socket wrench or open end wrench, insert and tighten the 4 hex screws and 4 lock nuts into the front shrouds.
  • Page 29 STEP 4—ATTACH METAL SHROUDS TO UPRIGHT ASSEMBLY A. Using an allen wrench, socket wrench or open end wrench, and a flat head screwdriver, remove and set aside the shroud fasteners from the upright assembly using 4 hex screws, 4 lock nuts, 2 twist lock screws, and 2 lock washers.
  • Page 30 STEP 4—ATTACH METAL SHROUDS TO UPRIGHT ASSEMBLY CONTINUED B. Slide the front metal shrouds onto the upright assembly. C. Using an allen wrench and a socket wrench or open end wrench, secure the front shrouds to the upright assembly using the 4 hex screws and 4 lock nuts.
  • Page 31 STEP 5—ATTACH TOP COVER TO UPRIGHT ASSEMBLY NOTE: Supplemental top cover video available on vimeo.com: https://vimeo.com/723539522?share=copy. TOOLS NEEDED ITEM PART DESCRIPTION Allen Wrenches SPL-02-UPR300X UPRIGHT ASSEMBLY 3/32" and 5/32" SPL-00-CVR021 CAP, UPRIGHT SPL-00-CVR022 TRAY, UPRIGHT COVER SPL-00-CVR023 MAT, UPRIGHT TRAY C1239 FHCS, 8-32 X 1/2”...
  • Page 32 STEP 5—ATTACH TOP COVER TO UPRIGHT ASSEMBLY CONTINUED E. Reattach the tray cover onto the top cover using the 4 F. Fully press the tray mat onto the tray cover. previously set aside the tray cover hex screws. top cover ...
  • Page 33 STEP 6—ATTACH PHONE HOLDER TO UPRIGHT ASSEMBLY TOOL NEEDED ITEM PART DESCRIPTION #2 Phillips Screwdriver SPL-02-UPR300X UPRIGHT ASSEMBLY SPL-00-RCK001 HOLDER, PHONE C1226 PHCS, #10-32 X 1”, BLK Using a #2 Phillips screwdriver, attach the phone holder to the upright assembly using 2 screws.
  • Page 34 STEP 7—ATTACH PADS TO MAIN FRAME ASSEMBLY TOOL NEEDED ITEM PART DESCRIPTION Allen Wrench SPL-02-MFR400X MAIN FRAME ASSEMBLY SPL02PDKT SEATED LEG CURL PAD KIT C 631A SHCS, 3/8”-16 X 3” BLK C 749B LOCK WASHER, 3/8”, BLK ZP C1257 LPSHCS, 3/8”-16 X 1-1/4” E-COAT C 754B WASHER, FLAT, 3/8”...

  • Page 35: Preventative Maintenance

    PREVENTATIVE MAINTENANCE Preventative maintenance is crucial to maintaining the function and safety of this equipment. Your facility must establish written guidelines for preventative maintenance and keep written or online records of the maintenance performed on these products. As a minimum, the items presented in the Safety Instructions section of this document and the items that follow here, should be included in your maintenance program.

  • Page 36: Other Scheduled Preventative Maintenance

    CLEANING THE EQUIPMENT Daily Cleaning Wipe all machines with a water dampened cloth and dry completely. This includes painted parts, chrome plated parts (except guide rods), plastic parts, and upholstered pads. It is important not to leave parts damp. This will increase the potential for corrosion to occur.

  • Page 37: Cable Inspection And Maintenance

    CABLE INSPECTION AND MAINTENANCE One of the most critical areas that require frequent inspection on any weight machine is the cable or belt system that lifts the weight stack if the machine is equipped with those items. Sudden failure of a worn cable can, in some instances, result in injury to the user.
  • Page 38 CABLE TENSION (IF APPLICABLE) Ensure that the cables are adjusted to remove any slack using the threaded end fittings. These are normally located at the weight stack connection. Depending upon the machine, there may be multiple threaded fitting on multiple cables. You can determine if there is too much slack by performing the exercise.
  • Page 39 CABLE FITTING ATTACHMENTS (IF APPLICABLE) Depending upon the machine, cable end fittings can either be securely fixed, rotate about a single axis, or can be free floating. On machines where the cable fitting is designed to rotate about a single axis, verify that the fitting rotates freely and that the hardware used to secure the cable pivot axle (most likely a pin or a bolt) is correctly fastened.

  • Page 40: Weight Stack Selector Pin Inspection

    WEIGHT STACK SELECTOR PIN INSPECTION Verify that the weight stack selector pin is attached with the coiled lanyard to the top plate (if equipped). Verify the selector pin slides in and out of each weight plate. Place the selector pin in the top plate. Cycle the machine through the intended motion.

  • Page 41: Warranty Information

    TRUE. **Labor warranty is available for equipment located within United States. TRUE Fitness equipment is automatically covered under a 6-month Limited Labor Warranty. This 6-month Limited Labor Warranty begins from the date of purchase shown by a valid receipt.

  • Page 42: Warranty Details

    WARRANTY DETAILS All TRUE Fitness products are distributed by TRUE and are warranted to the original product purchaser and the parts of the TRUE product (the “Product”) listed below. During the applicable Warranty Period, the Product, under normal use and service, shall be free of manufacturing defects in workmanship and materials.

  • Page 43: Warranty Registration

    Scan the QR code below with your smartphone to be location taken directly to the registration page. SERIAL NUMBER EXAMPLE TRUE FITNESS TECHNOLOGY, INC • By Mail: 865 HOFF RD, ST LOUIS MISSOURI 63366 USA Complete the information below and mail to:...
  • Page 44 1.800.883.8783 865 Hoff Road St. Louis, MO 63366 T R U E F I T N E S S . C O M MAN-SPL0200 Owner’s Manual, Assembly Guide, and Warranty Card REV07 © 2025 TRUE Fitness All Rights Reserved...
