Page 2

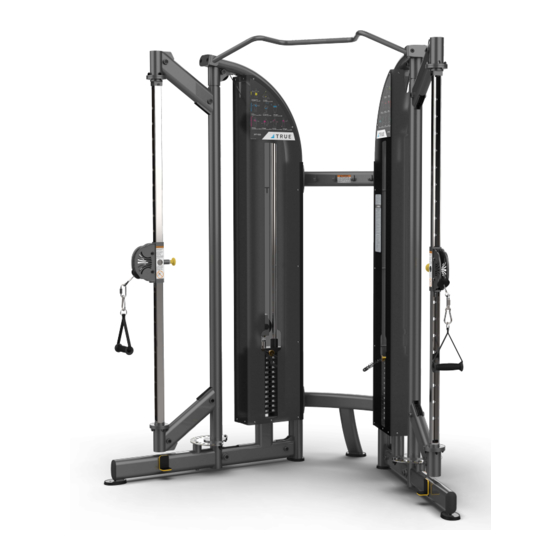

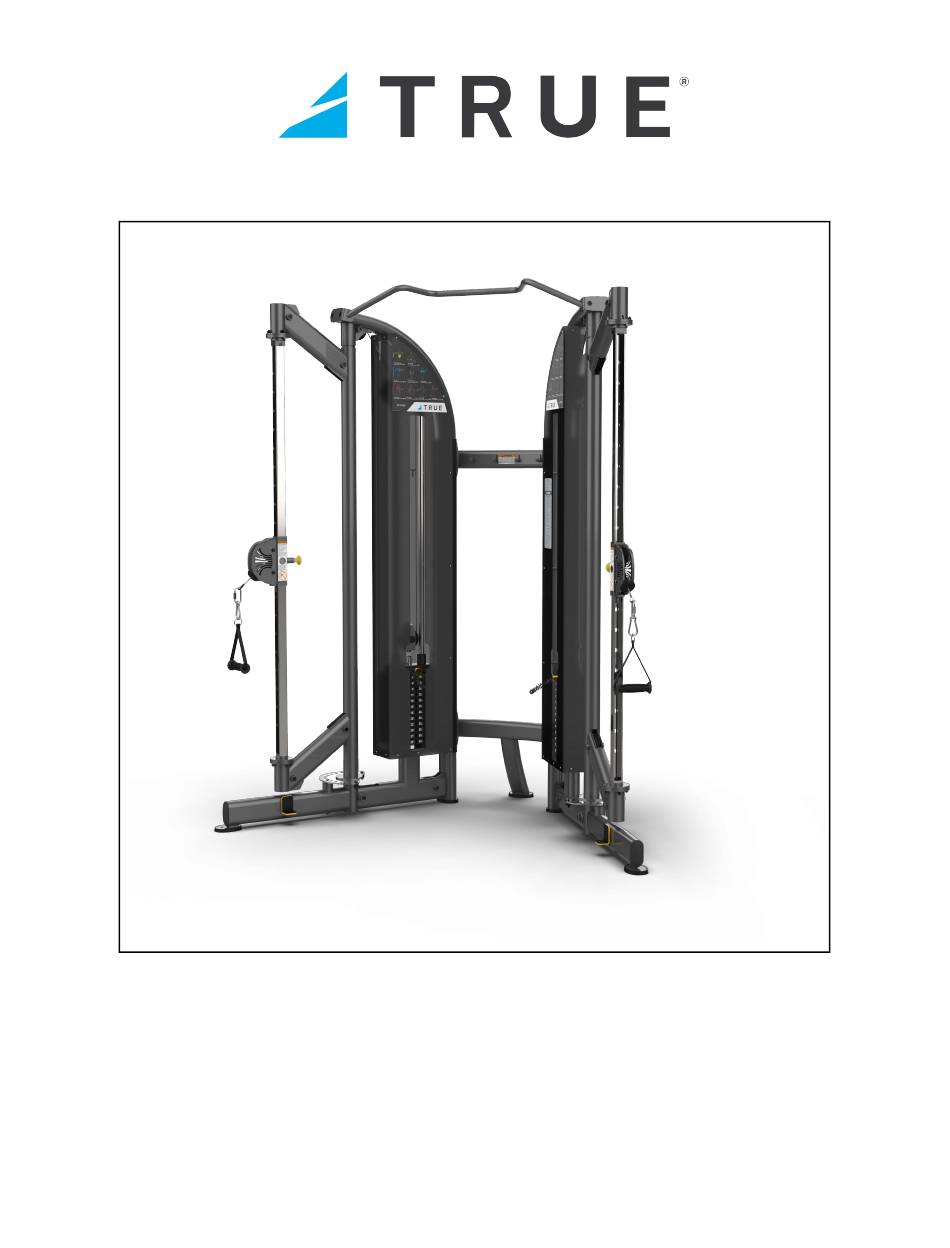

USTOMERS Thank you for purchasing the Paramount Series XFT-100 Functional Trainer. Because of the many unique features included on the XFT-100, this manual was created to provide you with information on how to properly install and maintain your equipment. Proper maintenance will ensure that your new equipment will last for years.
ABLE OF ONTENTS ............................4 AFETY ....................5 ENERAL ARE AND AINTENANCE ......................6 ACHINE PECIFICATIONS ..........................7 REPARATION ........................8 ARTON ONTENTS 1: A ..................10 SSEMBLE DJUSTMENT ISCS 2: A ..................11 SSEMBLE THE XTENSIONS 3: A ................... 12 SSEMBLE THE ROSS RACES...
AFETY ACILITY AND AFETY RECAUTIONS 1. Review and understand all of the warning labels affixed to this machine and on the facility safety sign. 2. Be certain that the machine operation is understood before it is used. Refer to the instructional Procedure Label affixed to the machine.
Page 5
3. Install this piece of equipment on a solid level surface that does not deviate more then 1/8” over a 10’ distance (or as defined and required by local building and architectural codes. 4. TRUE Fitness strongly recommends that all equipment be anchored to the floor to prevent movement and increase stability.
Page 6
• Frames and Lifting Arms: Inspect weekly for integrity and function. Replace any component at first signs of wear. Use only TRUE Fitness supplied components. 4. Replace any warning label at first sign of wear. Labels and the Facility Safety Sign may be obtained from TRUE Fitness free of charge.
Page 7
TRUE Fitness recommends Magnalube brand. ® 11. When replacing any component, use only TRUE Fitness Paramount Series supplied parts. 12. Please refer to the General Maintenance Manual (part number: AM-GMM) for other important safety and maintenance information. 13. Be sure all hardware is tight before using the machine.
Page 8
ARTON ONTENTS CARTON 1 (XFT100-CTN1) UMBER ESCRIPTION XFT100-HFA000X FRAME ASSEMBLY, RIGHT SIDE XFT100-CBR000X CROSS BRACE, LOWER XFT100-CBR100X CROSS BRACE, UPPER XFT100-MFR200X FOOT EXTENSION, RIGHT SIDE XFT100-ADJ000X ADJUSTMENT DISC, RIGHT XFT100-HW HARDWARE BOX CARTON 2 (XFT100-CTN2) UMBER ESCRIPTION XFT100-HFA100X FRAME ASSEMBLY, LEFT SIDE XFT100-CBR200 CHIN UP BAR XFT100-MFR300X...
O P T I O N A L A D D E R W E I G H T K I T An optional adder weight kit is available for this machine. The kit contains (2) 5 lb. adder weights, each of which will provide 2.5 lbs. of resistance at the handle. Part number is XFT-100-ADR.
Page 10
1: A SSEMBLE DJUSTMENT ISCS The lower adjustment discs can be assembled while the unit is still horizontal in the box. This will make it easier to handle the frame assembly when it is out of the box. ESCRIPTION C 657ZP Flat Head Screw, 3/8”-16 x 3/4”, ZINC C 754C Flat Washer, 3/8”...
Page 11
2: A SSEMBLE XTENSIONS 1. Assemble the base frame FOOT ESCRIPTION EXTENSIONS on the Right and Left Side frames as shown. C 749 Split Lock Washer, 3/8” C 624 Socket Head Screw, 3/8”-16 x 1-1/4” Align the edges of the tubes and fully tighten hardware.
3: A SSEMBLE ROSS RACES 1. Assemble the upper and lower cross braces as shown. Note that the upper cross brace has accessory hooks on the front. Loosely assemble the hardware, DO NOT TIGHTEN! 2. Assemble the Chin-up bar and loosely assemble the hardware. 3.
4: A SSEMBLE THE EIGHT LATES 1. The machine should be in its final position. Depending upon the space surrounding your machine, either the front or rear shrouds will need to be removed to install the weight plates. These instructions will show weight plate installation with the front shroud removed.
Page 14
5: A TTACH THE EIGHT TACK ABELS 1. Verify that there are 12 weight plates installed on each stack. 2. Wipe the front surface of the weights, in the area that the label will be installed, with isopropyl alcohol. Allow to dry completely before proceeding. 3.
Page 15
XFT-100 C ABLE OUTING IAGRAM Cable Retainer Pin Correct ENSURE THAT THE CABLE IS NOT ROUTED ON THE OUTSIDE OF THE CABLE RETAINER PIN. TYPICAL ALL PULLEYS. Wrong SCREW TO RETAIN CABLE END. REPLACE CABLES at the first sign of wear OR on an annual basis.
Page 16
ACHINE ABELS The following are the Warning labels required for this XFT-100. If any of these labels are missing or become damaged contact TRUE Fitness. Note: these labels are not to scale. LBL-WRN-0006 LBL-PR-XFT100AL LBL-PR-XFT100AR LBL-WRN-0012 B2141C LBL--WSEM-01065 LBL-WRN-0202 (contains LB. & KG.)
Page 17
B T A I N E R V I C E For warranty service, contact an Authorized Paramount Series Dealer or a TRUE Fitness Customer Service representative at 1-800-883-8783 or 1-800-721-2121. You can also email us at service@truefitness.com or paramountservice@truefitness.com...
Page 27
If you prefer to mail your warranty card, have the owner of the product complete the information below and return it to TRUE Fitness within 30 days from the date of equipment installation.
Page 28
CORPORATE OFFICER OF TRUE. THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH MAY VARY, FROM STATE TO STATE. CONTACT TRUE FITNESS TECHNOLOGY., 865 HOFF ROAD., ST. LOUIS MISSOURI 63366, FOR A LIST OF AUTHORIZE DEALERS OR BEFORE RETURNING ANY DEFECTIVE EQUIPMENT.
