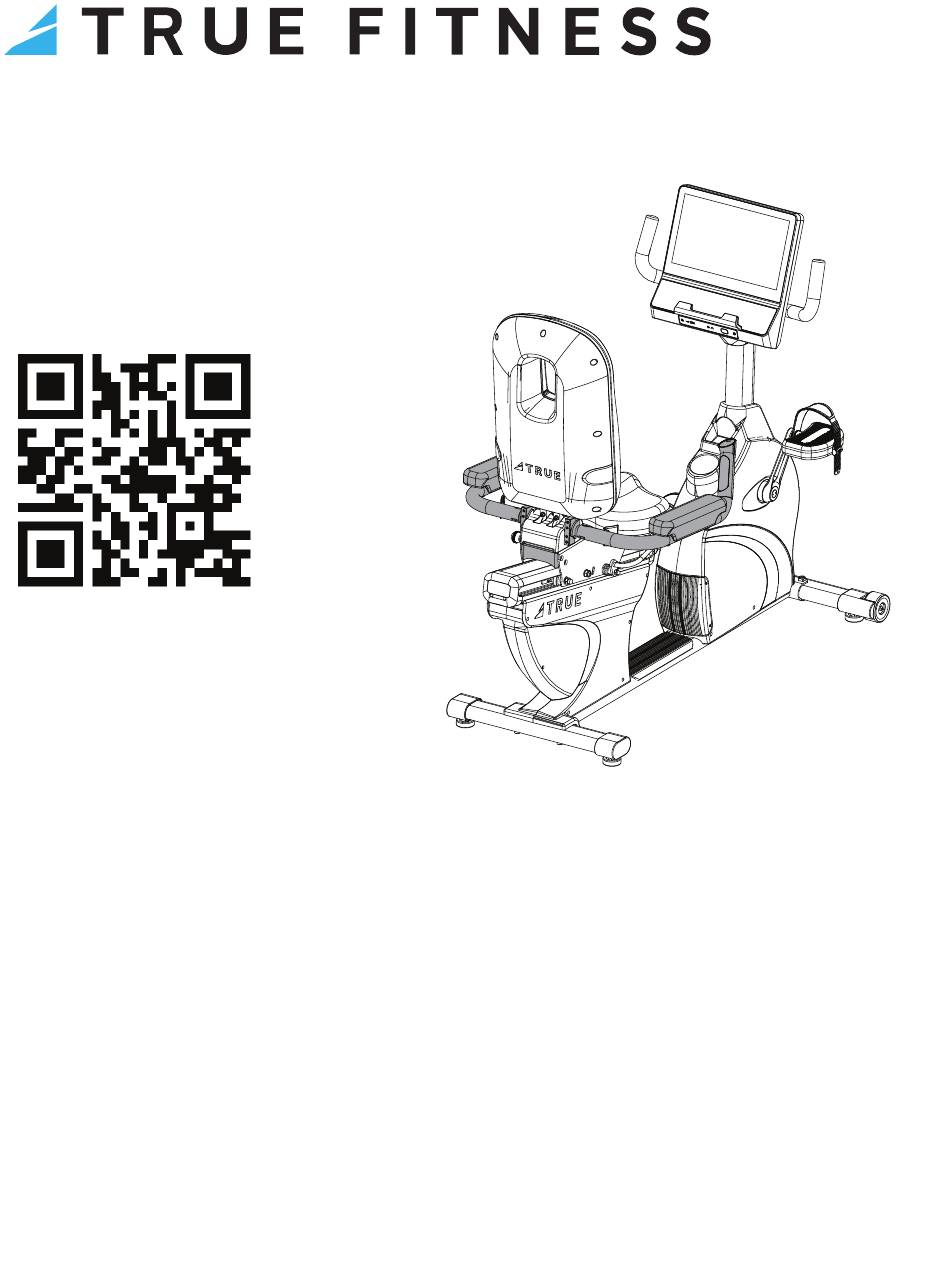

APEX RECUMBENT BIKE
ARMREST HANDLEBAR
ASSEMBLY INSTRUCTIONS
IMPORTANT—READ CAREFULLY
FOR IMPORTANT SAFETY INFORMATION AND DOWNLOAD OF
THE COMPLETE OWNER'S MANUAL AND ASSEMBLY GUIDE SEE
TRUEFITNESS.COM OR SCAN THE QR CODE ABOVE FOR DIRECT ACCESS
IF YOU NEED IMMEDIATE ASSISTANCE PRE OR POST ASSEMBLY
CONTACT OUR SUPPORT TEAM MONDAY–FRIDAY 8:30AM–5:00PM (CST)
800.883.8783 | SERVICE@TRUEFITNESS.COM
MODEL 00703100-35
MANUAL 00703100-35 REV02

Advertisement

loading
Need help?

Need help?

Do you have a question about the 00703100-35 and is the answer not in the manual?

Questions and answers

Related Manuals for True Fitness 00703100-35

Summary of Contents for True Fitness 00703100-35

  • Page 1 THE COMPLETE OWNER’S MANUAL AND ASSEMBLY GUIDE SEE TRUEFITNESS.COM OR SCAN THE QR CODE ABOVE FOR DIRECT ACCESS IF YOU NEED IMMEDIATE ASSISTANCE PRE OR POST ASSEMBLY CONTACT OUR SUPPORT TEAM MONDAY–FRIDAY 8:30AM–5:00PM (CST) 800.883.8783 | SERVICE@TRUEFITNESS.COM MODEL 00703100-35 MANUAL 00703100-35 REV02...

  • Page 2: Pre-Assembly Check List

    ASSEMBLY INSTRUCTIONS NOTE: Supplemental video available @TRUEFitnessservicevids: https://www.youtube.com/playlist?list=PLr3Igv32UruqBUtfzhrzF90543ENHp0F1 PREASSEMBLY CHECKLIST VERIFY BOX CONTENTS IMPORTANT! Please verify box contents. If you have questions, or if there are any missing parts, contact product support (service@truefi tness.com | 800.883.8783). NOTE: If you are installing this accessory on a fully assembled machine, TOOLS NEEDED FOR INCLUDED you need to remove the original seat back cover, seat back frame, rear...

  • Page 3: Assembly Steps

    ASSEMBLY STEPS Step 1—Attach Seat Back Frame Assembly Tools Used in this Step Parts Used in this Step 4mm Allen Wrench Item Part Description RCS0025 SEAT BACK FRAME W/O ARMS ASSEMBLY RCS0347 SEAT BACK 5mm Allen Wrench 00703200 SEAT BACK FRAME ASSEMBLY - ADJUSTABLE ARMS MODEL RCS0407 SCREW, M8 X P1.25 X 55...
  • Page 4 Step 1—Attach Seat Back Frame Assembly Continued C. Using a 5mm allen wrench, attach the seat back frame to the seat carriage using 8 hex screws, 8 lock washers, and 8 fl at washers.
  • Page 5 Step 2—Insert Armrest Handlebars Parts Used in this Step Item Part Description RCSA005-35 LEFT ADJUSTABLE ARM ASSEMBLY RCSA006-35 RIGHT ADJUSTABLE ASSEMBLY A. Route the thumbswitch and contact heart rate cables from the armrest handlebars through the seat back frame. NOTE: Verify that the armrest pads are facing up and that the thumbswitch cable is on the right. B.
  • Page 6 Step 3—Attach Seat Back Brackets Parts Used in this Step Tools Used in this Step Item Part Description 4mm Allen Wrench RCSA009 ADJUSTABLE SEAT BACK BRACKET ASSEMBLY RCS0442 SHCS, M5 X 30MM, BLK ZP A. Using a 4mm allen wrench, remove the 4 hex screws from the seat back brackets. B.
  • Page 7 Step 4—Connect Handlebar Cables Tools Used in this Step Zip Tie A. Route the cables coming out of the armrest tubes through the holes in the seat carriage. B. Connect the thumbswitch and contact heart rate cables. C. Using a zip tie, secure the cables in place in the seat carriage. Thumbswitch Thumbswitch Cable...
  • Page 8 Step 5—Attach Pivot Cover Parts Used in this Step Tools Used in this Step Item Part Description 5mm Allen Wrench RCSA001-35 PIVOT COVER - ADJUSTABLE ARMS CONNECTION FE0179 SOCKET HEX HD BOLT, M8 X P1.25 X 20 PS0099 WASHER, SPRING M8 6mm Allen Wrench CM8-19FW FLAT WASHER, 8MM X 19MM X 2MM...
  • Page 9 Step 6—Attach Rear Seat Pivot Cover Parts Used in this Step Tools Used in this Step Item Part Description #2 Phillips Screwdriver RCS0036RBK REAR PIVOT COVER FE0187 BHCS, M5-0.85 X 15MM RCS0382 WASHER, FLAT, 5.5MM X 15MM, T=1MM A. Install the rear seat pivot cover onto the seat carriage. NOTE: The rear seat pivot cover should attach cleanly to the front seat pivot cover.
  • Page 10 Step 7—Attach Seat Back Frame Cover Parts Used in this Step Tools Used in this Step Item Part Description #2 Phillips Screwdriver RCS0024BK SEAT BACK FRAME COVER ASSEMBLY FE0187 BHCS, M5-0.85 X 15MM Using a #2 Phillips screwdriver, attach the seat back frame cover to the seat back frame using 7 screws. NOTE: The hardware used for attaching the seat back frame cover comes with the RC1-0A-35.
  • Page 11 Step 8—Attach Slot Covers Parts Used in this Step Item Part Description RCSA017 SLOT COVER, ADJUSTABLE ARM A. Rotate the armrest handlebars up to expose the seat back cover slot openings. B. Attach the slot cover inserts into the seat back cover openings. Press the fl exible inserts until full engagement is achieved.
  • Page 12 CONTACT US service@truefi tness.com 800.883.8783 865 Hoff Road St. Louis, MO 63366 T R U E F I T N E S S . C O M 00703100-35 ASSEMBLY INSTRUCTIONS REV02 © 2024 TRUE Fitness All Rights Reserved.
