True Fitness XR1-SA-35 Owner's Manual

Residential elliptical
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

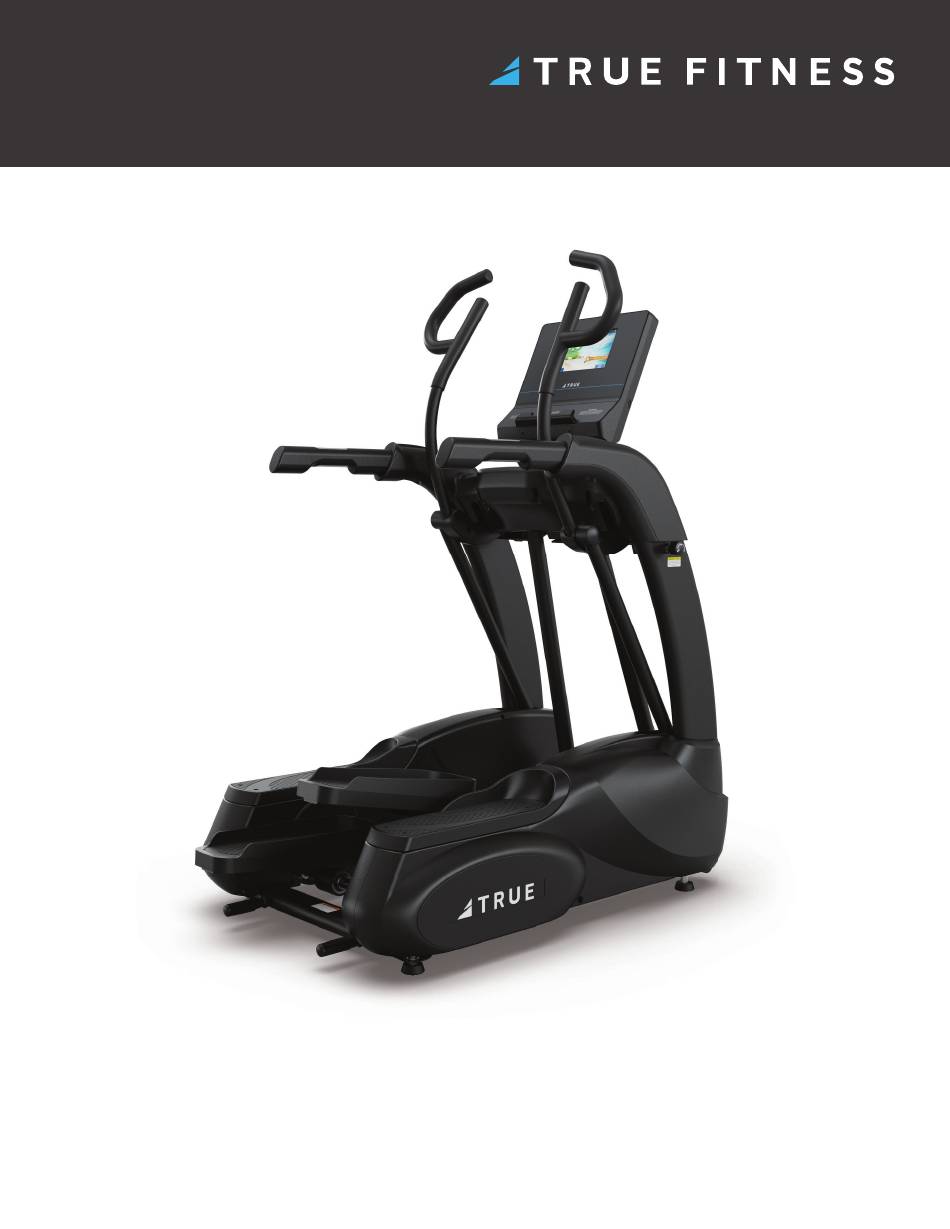

RESIDENTIAL
ELLIPTICAL
MODEL XR1-SA-35
MAN-XR1-SA-35 REV00
OWNER'S
MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XR1-SA-35 and is the answer not in the manual?

Questions and answers

Related Manuals for True Fitness XR1-SA-35

Summary of Contents for True Fitness XR1-SA-35

  • Page 1 RESIDENTIAL ELLIPTICAL OWNER’S MODEL XR1-SA-35 MANUAL MAN-XR1-SA-35 REV00...

  • Page 3: Important-Please Read

    IMPORTANT—PLEASE READ All products shown are prototype. Actual product delivered may vary. Product specifi cations, features, and software are subject to change without notice. For the most up-to-date version of this manual, please see our website: https://shop.truefi tness.com/customer-service/user-manuals/ CONTACTING OUR SUPPORT TEAM To contact TRUE for any of your pre or post installation questions, please call our toll-free numbers Monday - Friday 8:30am - 5:00pm (CST): •...

  • Page 4: Reporting Freight Claims Or Parts Damage

    REPORTING FREIGHT CLAIMS OR PARTS DAMAGE Unfortunately, sometimes materials can be damaged during shipment. If materials are damaged during shipment, please follow the guidelines below to determine the appropriate process for you to follow. Severe Damage—Obvious damage to external packaging and internal product. Please refuse the shipment and it will be returned to TRUE by the carrier.

  • Page 5: Table Of Contents

    TABLE OF CONTENTS SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS—SAVE THESE INSTRUCTIONS............6 POWER REQUIREMENTS..........................8 GROUNDING INSTRUCTIONS........................8 SPACE REQUIREMENTS...........................9 SPECIFICATIONS..........................9 WARNING DECALS..........................10 COMPLIANCES...........................10 PROPER USE............................11 ASSEMBLY INSTRUCTIONS PREASSEMBLY CHECKLIST........................12 ASSEMBLY STEPS..........................16 PRODUCT FEATURES BASE OVERVIEW............................31 CONSOLE OVERVIEW..........................33 CARE AND MAINTENANCE INSPECTION..........................34 CLEANING THE EQUIPMENT........................34 LEVELING THE EQUIPMENT........................34 PREVENTATIVE MAINTENANCE......................35 LONG TERM STORAGE..........................35...

  • Page 6: Safety Instructions

    SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS—SAVE THESE INSTRUCTIONS This equipment intended for in-home use only. Do not use this product in any commercial, rental, school or institutional setting. • Read and understand all instructions and warnings prior to use. • Obtain a medical exam before beginning any exercise program. If at any time during exercise you feel faint, dizzy, or experience pain, stop and consult your physician.
  • Page 7 • Use a TRUE AC power cord or AC/DC adapter only. • Always follow the console instructions for proper operation. • Position this product so the power cord plug is • Do not use the contact heart rate grips as a handlebar accessible to the user.

  • Page 8: Power Requirements

    (usually on the front of the unit). Depending on where you live voltage requirements grounded outlet differ. grounding pin Power Information Line Rated Number of Max Power Frequency Model Voltage Current Units per Plug/Outlet Dissipation (Hz) (Amps) Circuit (Watt) NEMA 5-15 XR1-SA-35 50/60Hz 1230...

  • Page 9: Space Requirements

    SPACE REQUIREMENTS TRUE recommends leaving a minimum of 24” (61cm) on each side of the equipment and a 79” (200cm) safety zone at the rear of the equipment. 24” (61cm) 24” 79” (61cm) (200cm) 24” (61cm) SPECIFICATIONS • DIMENSIONS (L X W X H) Footprint ◦...

  • Page 10: Warning Decals

    WARNING DECALS WARNING: Replace warning labels that may be worn, damaged, or missing. To replace any worn or missing decals contact TRUE product support (service@truefi tness.com | 800.883.8783). console serial number location XR1-SA-35 SA-35 SA-35 24- XR1SA001A 24- XR1SA0 24- XR1SA...

  • Page 11: Proper Use

    PROPER USE Proper Training Position • Users should keep both feet on the footpads (A) during the workout. • During a workout the user’ s hand should grasp the upper exercise arms (B). • Users should remain standing throughout the workout. Entry and Exit Safety To Enter: •...

  • Page 12: Assembly Instructions

    ASSEMBLY INSTRUCTIONS NOTE: Supplemental video available @TRUEFitnessservicevids. PREASSEMBLY CHECKLIST BASIC GUIDELINES FOR SETTING UP THE EQUIPMENT After removing the equipment from the packaging, place the equipment on a clean, level surface. Make sure the electrical cord easily reaches a grounded three-pronged outlet. DANGER: Do not use an extension cord or ungrounded outlet.

  • Page 13: Box Contents

    BOX CONTENTS ITEM DESCRIPTION Base Pedestal Drawbars Left Drawbar Cover Right Drawbar Cover Side Arms Left Upper Exercise Arm Right Upper Exercise Arm Left Exercise Arm Cover Right Exercise Arm Cover Pedal Tubes Rocker Arm Covers Console Mast Front Lower Console Cover Rear Console Cover Push Rods Left Pedestal Base Cover...

  • Page 14: Hardware Contents

    HARDWARE CONTENTS STEP 1 STEP 3 ITEM DESCRIPTION ITEM DESCRIPTION XPS0225 CAP, PLASTIC XPS0047 UPPER LINKAGE COVER XPS0400 BOLT SHCS NYLOC M10- PX0153 HEX. HD. BOLT 1.5 X 55 BZ XPS0421 SPRING WASHER STEP 2 ITEM DESCRIPTION XPS0413 FLAT WASHER 10 X 25 X TI0229 BOLT, HEX SOC.
  • Page 15 HARDWARE CONTENTS STEP 6 TOOLS ITEM DESCRIPTION ITEM DESCRIPTION SX0115 HHS, M10-1.5 X 81.5MM XCS0050008 HEX KEY, 10MM SX0116 NUT, HEX, M10, ZP SX0004 PHMS, M5-0.8X12MM, XCS0050009 HEX KEY, 6MM, BALL CRE, RE STEP 7 ITEM DESCRIPTION TI0229 BOLT, HEX SOC. HD. CAP, M8X1.25X12MM XCS0388 M8X20 SOCKET HEAD...

  • Page 16: Assembly Steps

    ASSEMBLY STEPS Preassembly Step 1—Attach Transport Handles Parts Used in this Step Item Part Description XPS0100-35 XES700 BASE XES0033 HANDLE, REMOVABLE A. With the machine still on the pallet, attach the 4 transport handles to the front and rear of the machine. NOTE: Transport handles will provide assistance in moving the machine.
  • Page 17 Preassembly Step 2—Measure Doorways Tools Used in this Step Parts Used in this Step Tape Measure Item Part Description XPS0100-35 XES700 BASE NOTE: Follow these instructions if the unit needs to be moved. A. Using a tape measure, measure all doorways, hallways, and stairwells to make sure that the 33” frame can fi t through them.
  • Page 18 Step 1—Attach Push Rods Tools Used in this Step Parts Used in this Step 8mm Allen Wrench Item Part Description XPS0035R-35 RIGHT EXTERNAL LINKAGE ASSEMBLY XPS0035L-35 LEFT EXTERNAL LINKAGE ASSEMBLY XPS0225 CAP, PLASTIC XPS0400 BOLT SHCS NYLOC M10-1.5 X 55 BZ A.
  • Page 19 Step 2—Attach Pedestal Parts Used in this Step Tools Used in this Step Item Part Description 6mm Ball End Allen Wrench XPS0101-35 XES700 PEDESTAL ASSEMBLY XPS0034 PEDESTAL BASE COVER ASSEMBLY RH 10mm Allen XPS0033 PEDESTAL BASE COVER ASSEMBLY LH Wrench TI0229 BOLT, HEX SOC.
  • Page 20 Step 2—Attach Pedestal Continued D. Using a #2 Phillips screwdriver, attach the pedestal base covers to the pedestal using 4 screws.
  • Page 21 Step 3—Attach Top of Push Rods Tools Used in this Step Parts Used in this Step 17mm Socket Item Part Description Wrench XPS0035R-35 RIGHT EXTERNAL LINKAGE ASSEMBLY XPS0035L-35 LEFT EXTERNAL LINKAGE ASSEMBLY XPS0047 UPPER LINKAGE COVER PX0153 HEX. HD. BOLT XPS0421 SPRING WASHER XPS0413...
  • Page 22 Step 4—Attach Side Arms Tools Used in this Step Parts Used in this Step 6mm Ball End Allen Item Part Description Wrench XPS0011 HANDLEBAR WITH HR TI0229 BOLT, HEX SOC. HD. CAP, M8X1.25X12MM A. Connect the side arm heart rate cables. C.
  • Page 23 Step 5—Attach Upper Exercise Arms and Exercise Arm Covers Tools Used in this Step Parts Used in this Step 6mm Ball End Allen Item Part Description Wrench XPS0075R-35 RIGHT HANDLEBAR ASSEMBLY XPS0075L-35 LEFT HANDLEBAR ASSEMBLY #2 Phillips XPS0046 HANDLEBAR COVER ASSEMBLY RH Screwdriver XPS0045 HANDLEBAR COVER ASSEMBLY LH...
  • Page 24 Step 6—Attach Pedal Tubes and Rocker Arm Covers Tools Used in this Step Parts Used in this Step 17mm Socket Item Part Description Wrench XPS0154 SUBASSEMBLY, PEDAL TUBE - XES700-20 (+15mm) XCS0099BK KIT, ROCKER ARM COVER SET BLACK 17mm Wrench SX0115 HHS, M10-1.5 X 81.5MM SX0116...
  • Page 25 Step 7—Attach Console Mast and Console Continued Tools Used in this Step Parts Used in this Step 6mm Ball End Allen Item Part Description Wrench XCS0005BK SUBASSEMBLY, CONSOLE MAST - XC400, BLACK XCS0022BK SUBASSEMBLY, FRONT LOWER CONSOLE COVER, BLACK #2 Phillips XCS0038BK SUBASSEMBLY, REAR CONSOLE COVER - XC400 Screwdriver...
  • Page 26 Step 7—Attach Console Mast and Console Continued C. Using a #2 Phillips screwdriver, attach the front lower console cover to the console mast using 2 screws.
  • Page 27 Step 7—Attach Console Mast and Console Continued D. If the console has three screws (00567700 // SCREW, M4-.7 X 12 PPHMS SEMS) preassembled, remove and set aside these screws. They are not used in the installation. Remove and set aside the four screws (00567800 // SCREW, M5-.8X12 COMBO PHILLIPS/COMMON TRUSS HEAD - ACG BLACK) preassembled to the console.
  • Page 28 Step 7—Attach Console Mast and Console Continued H. Using a #2 Phillips screwdriver, attach the rear console cover to the console mast using 2 screws.
  • Page 29 Step 8—Level the Machine Tools Used in this Procedure 17mm Wrench A. Using a 17mm wrench, adjust all four leveling feet until they contact the fl oor. IMPORTANT! Do not adjust the leveling feet to such a height that they detach or unscrew from the machine. B.
  • Page 30 Step 9—Connect Power Adapter A. Make the correct power connections for the base and console: • If the console is a touchscreen use the 12V, 3A power adapter. • If the console is an LED use the 9V, 1.3A power adapter. B.

  • Page 31: Product Features

    PRODUCT FEATURES BASE OVERVIEW Upper Exercise Upper Exercise Contact Heart Console Rate Grip Assembly Contact Heart Rate Grip TRUE Lock Foot Pad Side Step Foot Pad Power Cord Inlet Leveling Feet Side Step Leveling Feet Console Assembly—The console allows the user to set up a Side Steps workout program and control the machine during a workout.
  • Page 32 TRUE Lock The XR1-SA-35 elliptical includes the TRUE Lock. This feature allows users to immobilize the foot pedals. By locking the exercise machine, a user can create a more stable foot pedal when entering and exiting the machine. TRUE Lock also prevents unintentional foot pedal movement when the machine is stored and not in use.

  • Page 33: Console Overview

    CONSOLE OVERVIEW Touchscreen Console LED Console 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8...

  • Page 34: Care And Maintenance

    CARE AND MAINTENANCE It is important to perform the minor maintenance tasks described in this section. Failure to maintain the elliptical as described here could void the TRUE Warranty. To reduce the risk of electrical shock, always unplug the unit from its power source before cleaning or performing any maintenance tasks.

  • Page 35: Preventative Maintenance

    SCHEDULING QUARTERLY PREVENTATIVE MAINTENANCE TRUE recommends scheduling quarterly preventative maintenance with a qualifi ed service provider. Please contact your dealer or visit www.truefi tness.com to contact a local TRUE authorized service provider. QUARTERLY PREVENTATIVE MAINTENANCE • Record time, distance, and hours from the console. •...

  • Page 36: Additional Information

    ADDITIONAL INFORMATION TROUBLESHOOTING This troubleshooting information is intended to assist in diagnostics only and is not all inclusive. Technical specifi cations, error codes, and programming are subject to change without notice. TRUE accepts no liability for any damage or loss suffered by persons whom rely wholly or in part on any description or statement contained within this manual.

  • Page 37: Limited Warranty

    Coax/TV, HDMI, USB, mirroring or Ethernet Wear Items*** 180 Days connections, and safety key. All TRUE Fitness products are distributed by TRUE and are • The remedies described herein are your sole and warranted to the original registered product purchaser exclusive remedies and TRUE’...

  • Page 38: Warranty Registration

    • Complete the information below and mail to: number location TRUE Product Support 865 Hoff Road St. Louis, MO 63366 XR1-SA-35 SA-35 SA-35 24- XR1SA001A 24- XR1SA0 24- XR1SA0 Rating: 9V DC, 40mA Warranty Registration Base Serial Number Console Serial Number (if applicable) NOTE: Some base units require a console serial number.
  • Page 40 1.800.883.8783 865 Hoff Road St. Louis, MO 63366 T R U E F I T N E S S . C O M MAN-XR1-SA-35 Owner’s Manual, Assembly Guide, and Warranty Card REV00 © 2024 TRUE Fitness All Rights Reserved...
