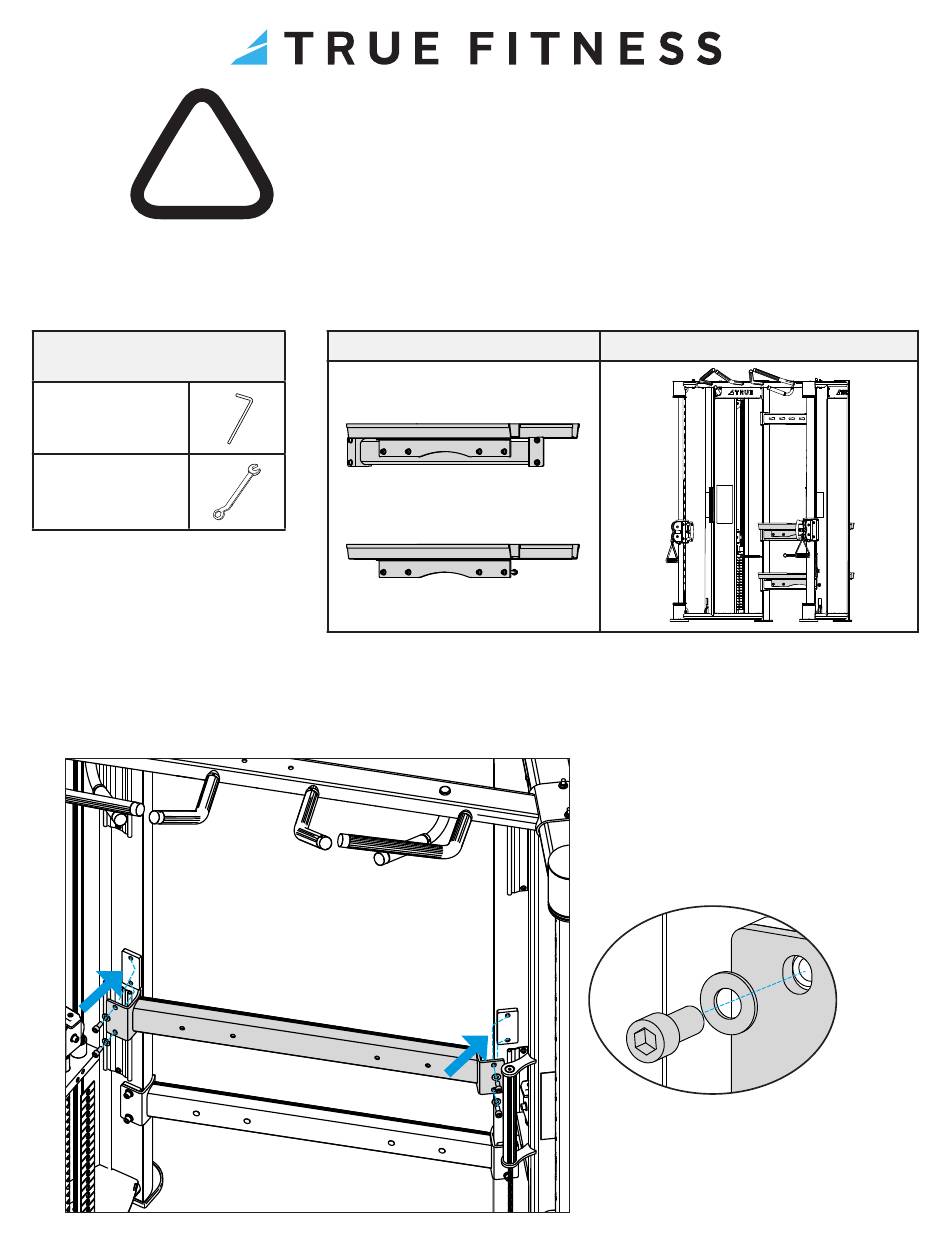

IF YOUR XFT900 COMES WITH THE OPTIONAL ACCESSORY TRAYS (XFT-900-TRY)
ASSEMBLE THE TRAYS BEFORE STEP 14—ATTACHING THE SHROUDS
TOOLS NEEDED
5/16" Allen Wrench
9/16" Wrench
STEPS
IMPORTANT! ASSEMBLE THE ACCESSORY TRAYS BEFORE ATTACHING THE SHROUDS
1.
Using a 5/16" allen wrench, attach the upper connecting frame cross bar with 4 socket head cap screws and 4 flat washers
to the left and right uprights.
XFT900 ASSEMBLY MANUAL ADDENDUM FOR ACCESSORY TRAYS REV00
NOTICE TO INSTALLERS
XFT-900-TRY
XFT-900 with Tray Accessory
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XFT900 and is the answer not in the manual?

Questions and answers

Related Manuals for True Fitness XFT900

Summary of Contents for True Fitness XFT900

  • Page 1 NOTICE TO INSTALLERS IF YOUR XFT900 COMES WITH THE OPTIONAL ACCESSORY TRAYS (XFT-900-TRY) ASSEMBLE THE TRAYS BEFORE STEP 14—ATTACHING THE SHROUDS XFT-900-TRY XFT-900 with Tray Accessory TOOLS NEEDED 5/16” Allen Wrench 9/16” Wrench STEPS IMPORTANT! ASSEMBLE THE ACCESSORY TRAYS BEFORE ATTACHING THE SHROUDS Using a 5/16”...
  • Page 2 2. Using a 5/16” allen wrench and 9/16” wrench, assemble the trays to the connecting frame cross bars. Each tray is secured in place with 4 socket head cap screws, 8 flat washers, 4 lock washers, and 4 nuts. XFT900 ASSEMBLY MANUAL ADDENDUM FOR ACCESSORY TRAYS REV00...
  • Page 3 Videos, and more) To sign up for the customer portal, send an email to service@truefitness.com and include the following information: Account Director First and Last Name, Email Address, Phone Number, and TRUE/Octane Account Number. XFT900 ASSEMBLY MANUAL ADDENDUM FOR ACCESSORY TRAYS REV00...
  • Page 4 XFT-900 Functional Trainer OWNER’S MANUAL Model # XFT-900 Revision 112420...
  • Page 5 Технические характеристики, особенности и программного обеспечения могут быть изменены без предварительного уведомления. Для получения самой последней на сегодняшний день руководство по эксплуатации пожалуйста, посетите www.truefitness.com .Для документов на другие языки, пожалуйста, посетите www.truefitness.com/resources/document-library/ Page # 2 of 39 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...

  • Page 6: A Message To Our Customers

    XFT-900 A MESSAGE TO OUR CUSTOMERS Frank Trulaske began TRUE Fitness® over thirty-five year ago with the simple philosophy of delivering superior fitness products, service, and support. Today, TRUE is the global leader in premium fitness equipment for the commercial and residential markets. Our goal is to be the leader in technology, innovation, performance, safety and style.

  • Page 7: Table Of Contents

    CHAPTER 4: CUSTOMER SERVICE ..........................34 • CONTACTING SERVICE: ......................34 • CONTACTING SALES: .......................34 • REPORTING FREIGHT OR PARTS DAMAGE: ..............35 CHAPTER 5: WARRANTY INFORMATION: ......................36 Page # 4 of 39 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...

  • Page 8: Chapter 1: Safety Instructions

    Be certain members are instructed on how to operate and adjust all safety mechanisms. Page # 5 of 39 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 9 7. Some assembly materials may come preassembled in the carton. Refer to Chapter 2: Assembly Guide for instructions on disassembling assembly materials where appropriate before beginning assembly. Page # 6 of 39 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 10 E E A A S S U U R R I I N N G G U U I I D D E E FLAT HEAD SCREW BUTTON HEAD SCREW HEX HEAD SCREW SOCKET HEAD SCREW Page # 7 of 39 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 11 Be sure all hardware is tight before using the machine. Retain these instructions for future reference. If you have any questions, do not hesitate to contact your TRUE dealer or TRUE Fitness Technology at (800)883-8783 or service@truefitness.com. Page # 8 of 39...

  • Page 12: Commerical Maintenance Schedule

    CLEAN: Guide rods and lubricate with a teflon lubricant if equipped. CLEAN: Upholstery LUBRICATE: Pivot bearings and linear bearings. REPLACE: Cables if equipped. Page # 9 of 39 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...

  • Page 13: Chapter 2: Assembly Guide

    Floor loading: 58.47 lb/ft2 (285.33kg/m2) COMPLIANCES: This equipment complies with all fitness product standards. For a complete list of compliances, please visit www. TrueFitness.com. Page # 10 of 39 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...

  • Page 14: Required Tools

    CHAPTER 2: ASSEMBLY GUIDE REQUIRED TOOLS: Ratchet Handle Socket Head Hex Bit Sockets Open Ended wrench Allen wrench (supplied) Rubber Mallet Step Ladder LABELS: LBL-XFT90-310V LBL-XFT90-001 LBL-XFT90-002 Page # 11 of 39 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...

  • Page 15: Pre-Assembly Checklist

    LEFT FRT REAR their respective locations. Refer SHROUD to the Assembly Steps section for XFT90-FSD204X FRONT LEFT SHROUD assembling the XFT-900. W PROCEDURE LABEL Page # 12 of 39 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 16 Assembly Steps section for XFT90-TPL100X TOP CAP ASSEMBLY assembling the XFT-900. XFT90-FSD201 FRT RT REAR SHROUD XFT90-FSD203X FRONT RIGHT SHROUD W PROCEDURE LABEL Page # 13 of 39 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...

  • Page 17: Assembly Steps

    SH SCREW, 3/8”-16, 3/4” and right upright assemblies. C 754C 3/8” FLAT WASHER 13/16 OD X .07 THK C 749SS 3/8 MED SPLIT LOCKWASHER S.S. Page # 14 of 39 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 18 C 754C 3/8” FLAT WASHER 13/16 OD X .07THK C 749SS 3/8 MED SPLIT LOCKWASHER S.S. XFT90-CBR200X CONNECTING FRAME CROSS BAR ASSEMBLY Page # 15 of 39 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 19 C 754C 3/8” FLAT WASHER 13/16 OD X .07 THK XFT90-CBR300X CHIN BAR X ASSY C 766A NYLON LOCK NUT 3/8- 16 X 17/64 Page # 16 of 39 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 20 TOP PLATE PLY HSG ASSY the weight stacks on the left and right upright assemblies. Note: The weight plate boxes are four weight plates per box. Page # 17 of 39 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 21 NYLON LOCKNUT 3/8- and right upright assemblies. 16 X 17/64 XFT90-GRD200 GUIDE ROD BRACKET C 754C 3/8” FLAT WASHER 13/16 OD X .07 THK Page # 18 of 39 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 22 16 X 17/64 PULLEY 89MM DIA Note: This assembly step applies to the left and 2000PL500 right upright assemblies. Page # 19 of 39 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 23 PULLEY 89MM DIA 2000PL500 Note: This assembly step applies to the left and C 761ASS 3/8-16 X 1-3/4 BHCS SS right upright assemblies. Page # 20 of 39 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 24 Route the cable as shown below. Note: Use the provided pull string to route the cable through the top of the left and right upright assemblies. Page # 21 of 39 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 25 Step 9 (Cable Routing): Route the cable as shown below. Note: After routing the cables, tighten the nut on the bottom of the Top Plate Pulley Assembly. Page # 22 of 39 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 26 Route the cable as shown below. Note: Use the provided pull string to route the cable through the bottom of the left and right upright assemblies. Page # 23 of 39 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 27 REQUIRED ASSEMBLY STEPS: Step 11 (Cable Routing): Insert the cable end into the bolt identified below and then secure the bolt to the pulley housing. Page # 24 of 39 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 28 Description Quantity C 631 SHCS 3/8-16 X 3 Note: This assembly step applies to the left and SM-2000PL500 PULLEY 89MM DIA right upright assemblies. Page # 25 of 39 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 29 C 754C 3/8” FLAT WASHER and right upright assemblies. 13/16 OD X .07THK C 766A NYLON LOCKNUT 3/8-16 X 17/64 SM-2000PL500 PULLEY 89MM DIA Page # 26 of 39 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 30 Note: This assembly step applies to the left and XFT90-FSD204X FRONT LEFT right upright assemblies. SHROUD W PROCEDURE LABEL C 992 SHCS #10-32 x 1/2’ Page # 27 of 39 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 31 XFT90-FCV101 UPRIGHT COVER hardware. C 992 SHCS #10-32 x 1/2’ Note: This assembly step applies to the left and right upright assemblies. Page # 28 of 39 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...

  • Page 32: Optional Assembly Steps

    XFT900 XFT90-0003 SELECTOR PIN Note: This assembly step applies to the XFT90-0004 PLUG left and right upright assemblies. B1110B HANDLE NYLON STRAP - BLACK Page # 29 of 39 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...

  • Page 33: Care And Maintenance

    The following items are critical to the safety of users and maintenance staff as well as ensuring the optimum performance of the machines. These inspections should be performed each day before the equipment is subject to use. TRUE Fitness is not responsible for performing or scheduling regular maintenance or inspections.

  • Page 34: Other Scheduled Preventive Maintenance

    CAUTION: Do not use any acidic cleaners. Doing so will weaken the paint or powder coatings and may void the TRUE Fitness Warranty. Never pour or spray liquids on any part of the equipment. Allow the equipment to dry completely before using.

  • Page 35: Cable Inspection & Maintenance

    If any of these conditions are apparent, the machine should immediately be taken out of service and repaired. Be sure to use only cables supplied by TRUE Fitness. DO NOT use cables that have fittings attached with hand- crimp tools.
  • Page 36 Ensure that the snap-link opens and closes easily and is fully engaged when closed. Replace the snap-link as needed. Page # 33 of 39 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com Truefitness.com / 800.426.6570 / 636.272.7100...

  • Page 37: Chapter 4: Customer Service

    CHAPTER 4: CUSTOMER SERVICE CONTACTING SERVICE: TRUE Fitness recommends that you gather the serial number, model number, and a brief description of the reason for the request. After information has been gathered you may choose to contact your selling dealer or local service company to set an appointment.

  • Page 38: Reporting Freight Or Parts Damage

    Obvious damage to external packaging / internal product. Please refuse the shipment and it will be returned to TRUE Fitness by the carrier. Contact the TRUE Fitness customer support team by calling 800.883.8783 or sales support team by calling 800.426.6570 Monday-Friday during normal hours of operation to notify us that the shipment has been refused.
  • Page 39 Page # 36 of 39 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 40 LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. 10. THE REMEDIES DESCRIBED ABOVE ARE YOUR SOLE Keep this page for your records AND EXCLUSIVE REMEDIES AND TRUE’S ENTIRE LIABILITY Page # 37 of 39 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...

  • Page 41: Chapter 5: Warranty Information

    If you prefer to mail your warranty card, have the owner of the product complete the information below and return it to TRUE Fitness within 30 days from the date of equipment installation.
