Atdec AWM-A46HT Installation Manual page 3

Awm heavy duty 460 arm

Advertisement

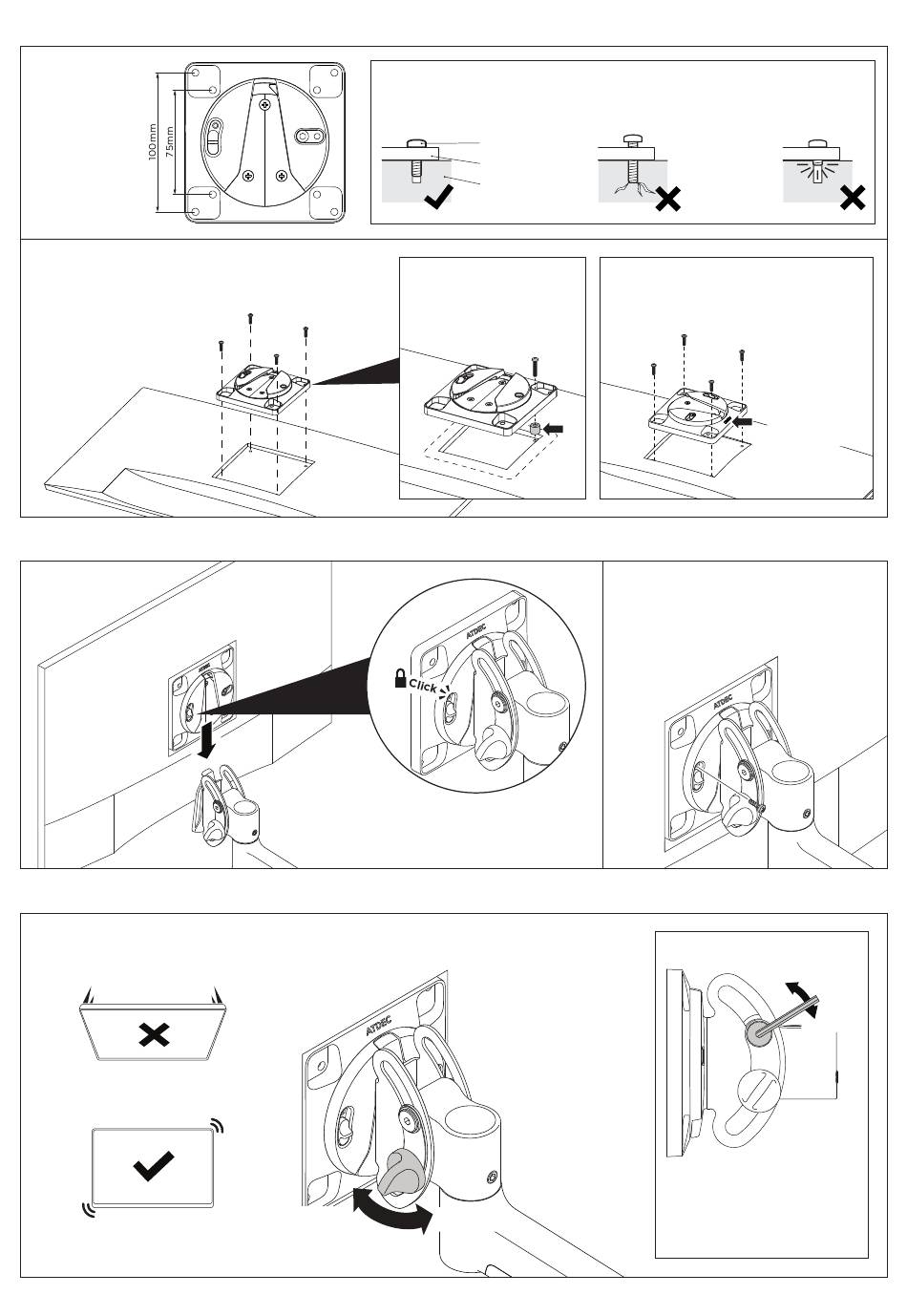

4. Attach VESA head to monitor
4.1 Check
VESA
mounting
compatibility
of monitor
4.2 Attach VESA head onto monitor with
provided screws. (Alternatively, use fasteners
specified by the monitor manufacturer.)
5. Attach monitor to arm
5.1 Fit monitor
onto arm.
6. Adjust tilt tension
6.1 Adjust the tilt tension by using the knob.
DROOPS FORWARD
HOLDS POSITION
NOTE: Ensure screw length suits the monitor VESA mounting holes.
OK
NOTE: Recessed
75x75 VESA interfaces
will require a Spacer
Kit (sold separately)
NOTE: VESA Head
will automatically
latch onto the tilt link.
TIGHTEN
LOOSEN
Too long
VESA Screw
VESA Plate
Monitor
TIP! To allow monitor to be rotated
upside down, mount VESA head in
the alternate orientation shown.
5.2 OPTIONAL SECURITY SCREW
If desired, once monitor is attached
to the arm, install the security screw
which disables the release switch.
NOTE: Support monitor
while adjusting.
Too short
NOTE: Logo
position
LOOSEN
TIGHTEN
NOTE: If more tension is
required, use the 4mm hex
key to tighten tilt screw.
AWM-A46HT Page 3 of 4
