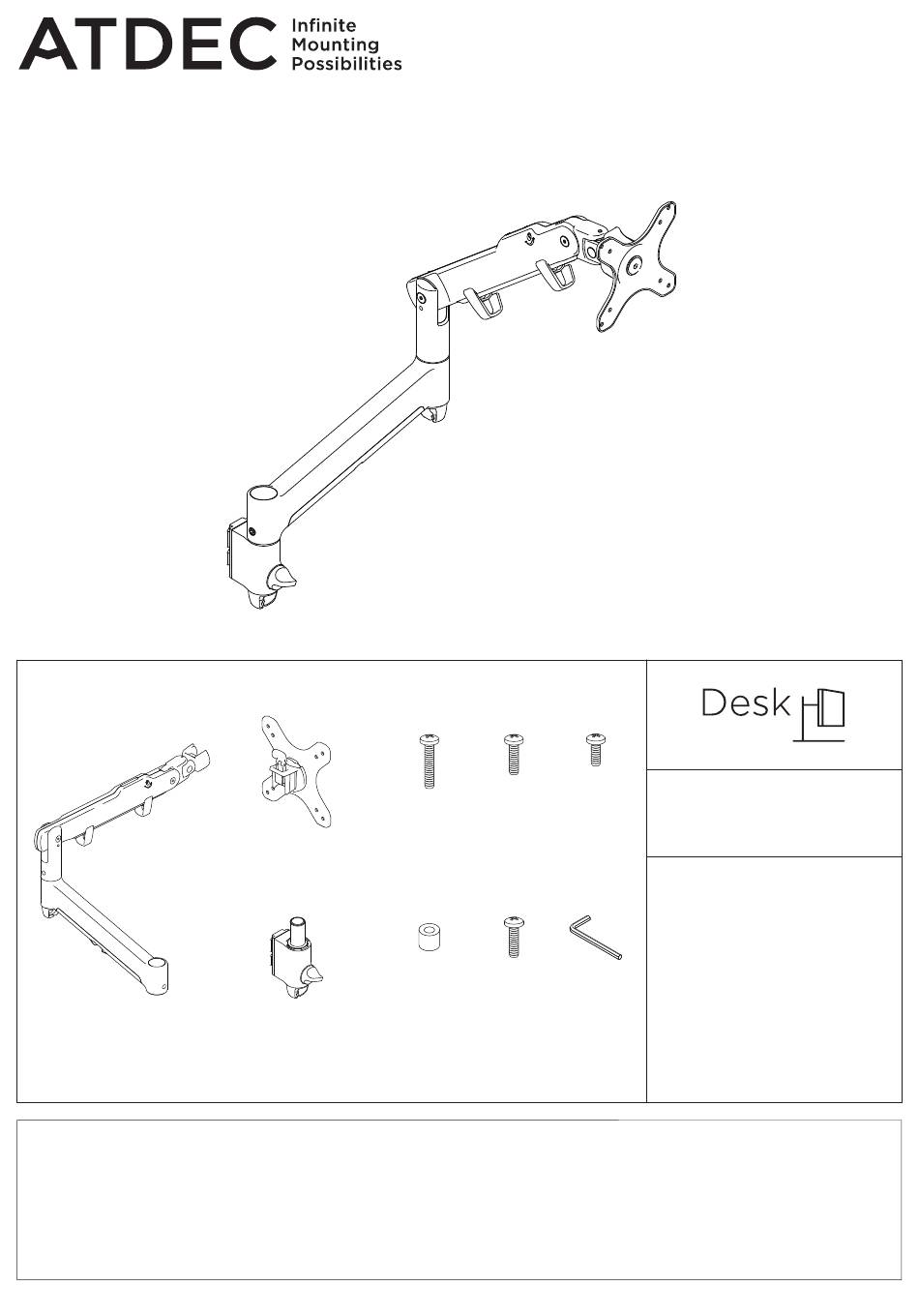

Dynamic Arm with Clamp
COMPONENT CHECKLIST
A
Dynamic
Monitor Arm
(x1)
IMPORTANT INFORMATION
! Please ensure this product is installed as per these installation instructions.
! This product is compatible with Atdec AWM Series products.
! The Dynamic Arm with Channel Clamp (AWM-ADC) is for installation on AWM Posts or Wall Channels.
! The manufacturer accepts no responsibility for incorrect installation.
! Curved monitors, deep devices (such as all-in-one PCs) and offset VESA locations exert additional leverage that can exceed the
capacity of the mount even though the monitor weight may be within the stated range. Please contact Atdec if you would like
further information.
D
Screw
B
M4x25mm
VESA Head
(x4)
(x1)
G
C
Spacer
(x4)
Channel
Clamp
(x1)
Installation Guide
E
F
Screw
Screw
M4x16mm
M4x12mm
(x4)
(x4)
H
I
Security
4mm
screw
allen key
(x1)
(x1)
AWM-ADC
REQUIRED TOOLS
• Phillips Head Screwdriver
WEIGHT RANGE
Flat Monitors
0 - 9kg
(0 - 20lbs)
Curved Monitors
0 - 6kg
(0 - 13.5lbs)
Monitor weight should be within the
weight range of all modular elements
that make up the complete monitor
mounting solution.
AWM-ADC Page 1 of 4
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Atdec AWM-ADC
Summary of Contents for Atdec AWM-ADC
- Page 1 ! Curved monitors, deep devices (such as all-in-one PCs) and offset VESA locations exert additional leverage that can exceed the capacity of the mount even though the monitor weight may be within the stated range. Please contact Atdec if you would like further information.
- Page 2 100mm 12mm 75mm Note: Spacers may be 100mm required for curved, Flush Spacer 75mm recessed or uneven monitor surfaces. 100mm Note: For other sizes, use a suitable adaptor plate Too long Too short (sold separately). AWM-ADC Page 2 of 4...
- Page 3 Monitor Falls Monitor Springs Monitor ‘Floats’ (from top) (all positions) (from bottom) Increase Tension Reduce Tension Balanced AWM-ADC Page 3 of 4...
- Page 4 No portion of this document or any artwork contained herein should be reproduced in any way without the express written consent of Atdec Pty Ltd. Due to continuing product development, the manufacturer reserves the right to alter specifications without notice. ©20220526...
