Atdec AWM-A46HT Installation Manual

AWM Heavy Duty 460 Arm

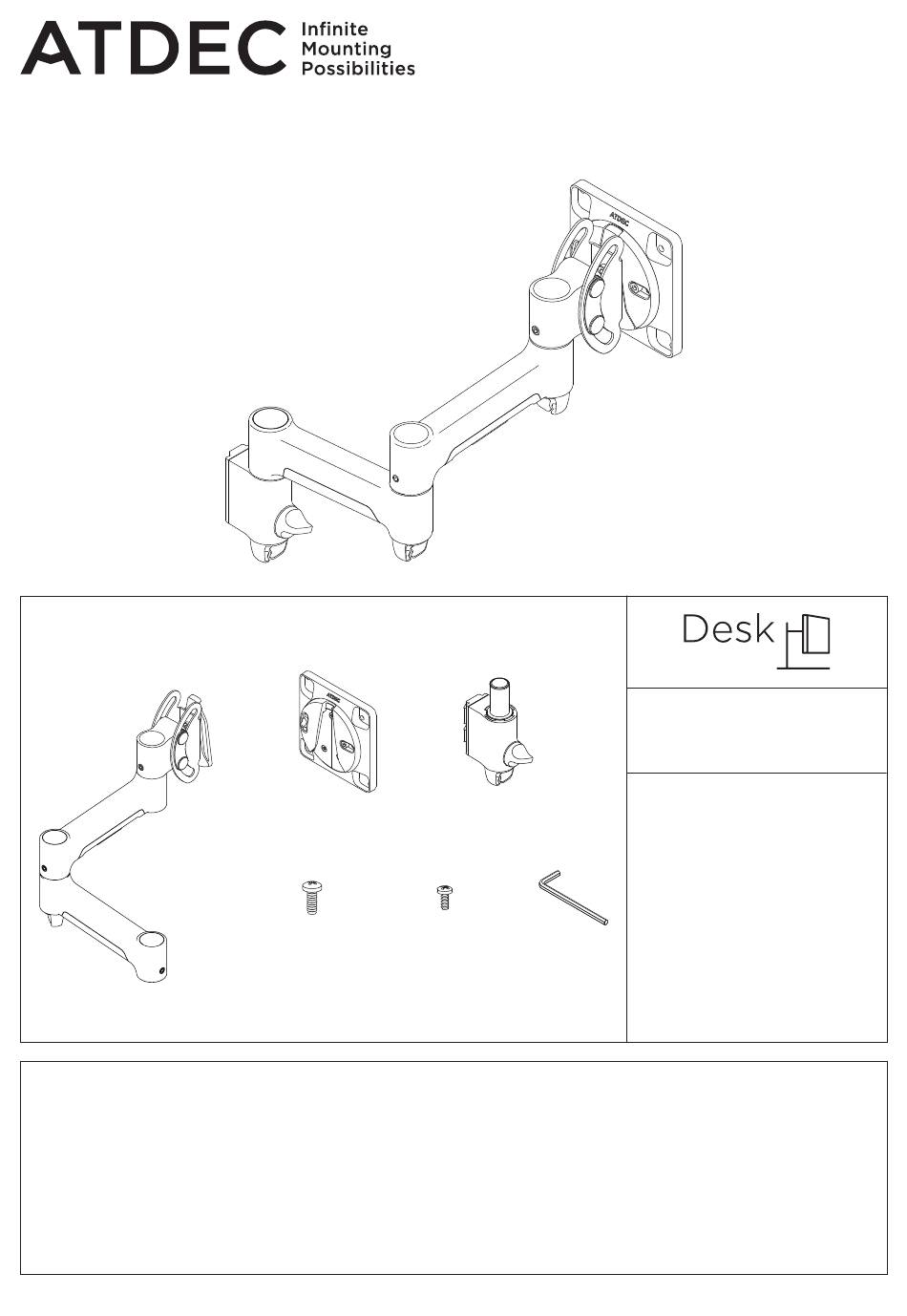

COMPONENT CHECKLIST
A
Monitor
Arm
(x1)
IMPORTANT INFORMATION
! Please ensure this product is installed as per these installation instructions.
! Do not remove/ throw away the black plastic sleeve on the channel clamp or arm links.
! The manufacturer accepts no responsibility for incorrect installation.
! This product is not suitable for outdoor use or mobile applications.
! Do not over-tighten screws and adjustment points on product.
! This product is not compatible with the Atdec AWM Wall Channel products (including AWM-WS Slat Wall Adaptor,
AWM-W6 60 Wall Channel, and AWM-W35 350 Wall Channel).
! VESA mounted accessories (such as mini PC brackets and mounts), offset VESA locations, and unevenly weighted monitors
(relative to the center of the VESA mounting interface) exert additional leverage that can exceed the capacity of the mount
even though the monitor weight may be within the stated range. Please contact Atdec if you would like further information.
B
VESA Head Channel Clamp
(x1)
D E
Screw Security
M4x10mm Screw
(x4) (x1)
Installation Guide
REQUIRED TOOLS
• Phillips Head Screwdriver
WEIGHT RANGE
C
Flat Monitor
0 - 14kg
(x1)
(0 - 31lbs)
Curved Monitor
0 - 12kg
F
(0 - 26.5lbs)
4mm
Hex Key Monitor weight should be within the
weight range of all modular elements
(x1)
that make up the complete monitor
mounting solution.
AWM-A46HT
AWM-A46HT Page 1 of 4
