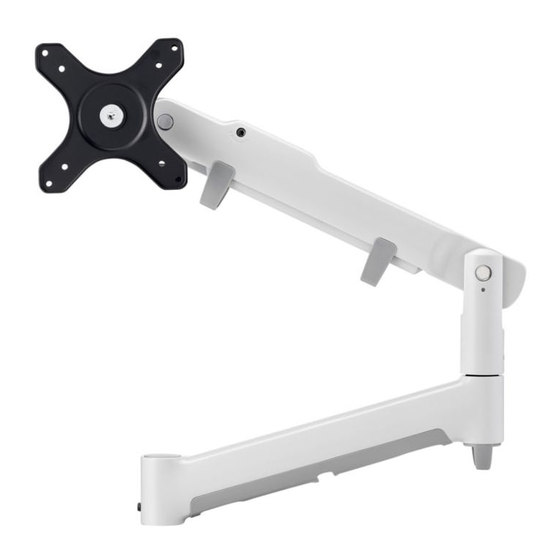

Atdec AF Series Installation Manual

INSTALLATION WITH ATDEC AF- POST

Step 1. Step 2.
D
Step 4.
No portion of this document or any artwork contained herein should be reproduced in any way
without the express written consent of Atdec Pty Ltd. Due to continuing product development,
the manufacturer reserves the right to alter specifications without notice. ©20171013A
atdec.com | atdec.co.uk | atdec.com.au
Step 3.
A
A
Installed Position
AC-GC Page 4 of 4
Grommet Clamp
ATDEC AWM-P ATDEC AWM-ADB
Go to Page 2

COMPONENT CHECKLIST

Clamp Plate Clamp Bar
D
M4x12mm
Screw (x2) 5mm Allen key

IMPORTANT INFORMATION

! IMPORTANT - Install Atdec Grommet Clamp as per Installation Instructions.
! The manufacturer accepts no responsibility for incorrect installation.
! This product is compatible with Atdec products AF- posts, AWM-P posts,
AWM-ADB, APM range, VFS range posts, SD-DP range posts.
! The product is compatible with grommet hole sizes from 60-80mm
! The product is compatible with desk thicknesses from 18-36mm
Installation Guide
ATDEC AF-
Go to Page 3 Go to Page 4
B
A M8x30mm M8x16mm
M8 Stud screw

TOOL REquIRED

Phillips Head
M8 Nut 13mm Spanner Screwdriver
AC-GC Page 1 of 4
AC-GC
C
screw
