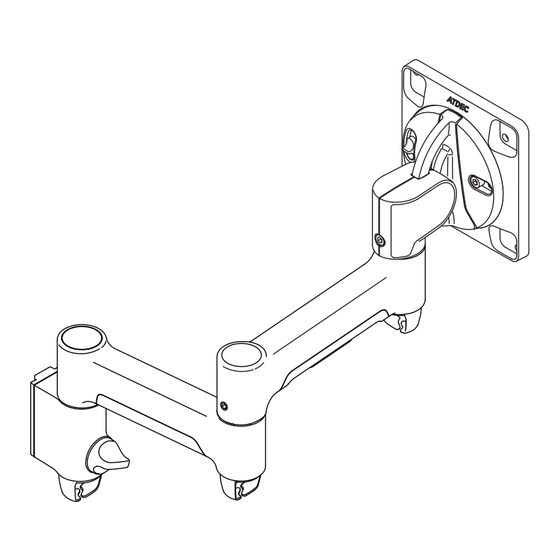

AWM 460 Arm

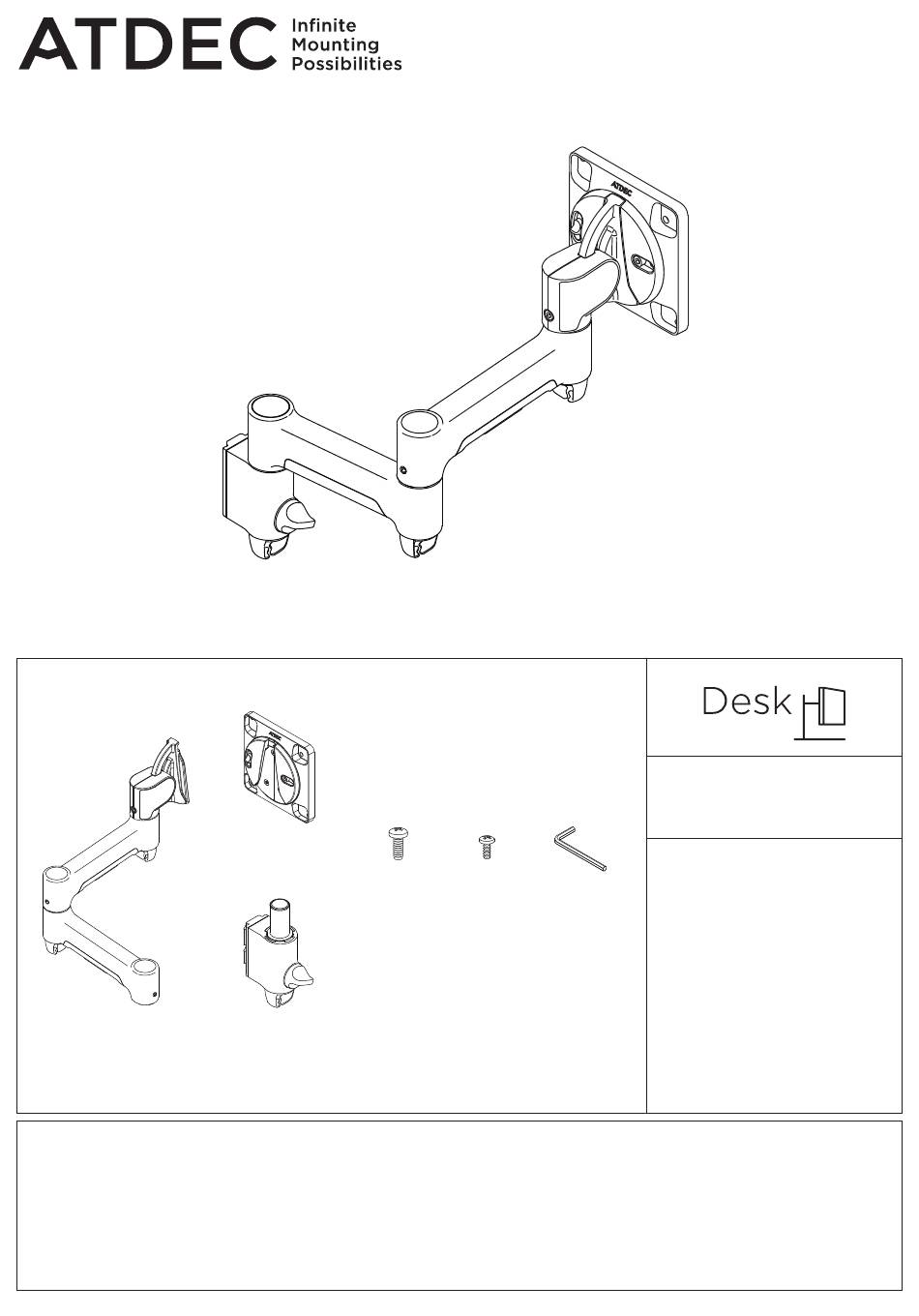

COMPONENT CHECKLIST
A
Monitor Arm
(x1)
IMPORTANT INFORMATION
! Please ensure this product is installed as per these installation instructions.
! Do not remove or throw away the plastic sleeve on the channel clamp.
! The manufacturer accepts no responsibility for incorrect installation.
! This product is compatible with Atdec AWM Series Posts and Wall Channels
! This product is not suitable for outdoor use or mobile applications
! Do not over-tighten screws and adjustment points on product.
! VESA mounted accessories (such as mini PC brackets and mounts), and offset VESA locations, and unevenly weighted monitors
(relative to the center of the VESA mounting interface) exert additional leverage that can exceed the capacity of the mount even
though the monitor weight may be within the stated range. Please contact Atdec if you would like further information.
B
VESA Head
(x1)
D
Screw
M4x10mm
(x4)
C
Channel Clamp
(x1)
E
F
Security
4mm
Screw
Allen Key
(x1)
(x1)
Installation Guide
AWM-A46T
REQUIRED TOOLS
• Phillips Head Screwdriver
WEIGHT RANGE
Flat Monitor
0 - 12kg
(0 - 26.5lb)
Curved Monitor
0 - 10kg
(0 - 22lb)
Curved monitors with an overall
depth up to 140mm (5.5").
Monitor weight should be within the
weight range of all modular elements
that make up the complete monitor
mounting solution.
AWM-A46T Page 1 of 4
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Atdec AWM 460 Arm
Summary of Contents for Atdec AWM 460 Arm
- Page 1 (relative to the center of the VESA mounting interface) exert additional leverage that can exceed the capacity of the mount even though the monitor weight may be within the stated range. Please contact Atdec if you would like further information.
- Page 2 1. Fix channel clamp to post or wall channel ure Knob is undone 1.1 Ensure knob is undone. 1.3 Hold clamp in desired position on 1.2 Slide channel clamp into channel. channel and turn knob to lock in place. Push knob to aid insertion 2.
- Page 3 4. Attach VESA head to monitor 4.1 Check VESA mounting 4.2 Attach VESA head compatibility of monitor onto monitor with Note: Recessed 75x75 Note: ensure screw length provided screws. VESA interfaces will suits the monitor VESA (Alternatively, use require a Spacer Kit mounting holes.
- Page 4 No portion of this document or any artwork contained herein should be reproduced in any way without the express written consent of Atdec Pty Ltd. Due to continuing product development, the manufacturer AWM-A46T Page 4 of 4...
