Atdec AWM-A46HT Installation Manual page 2

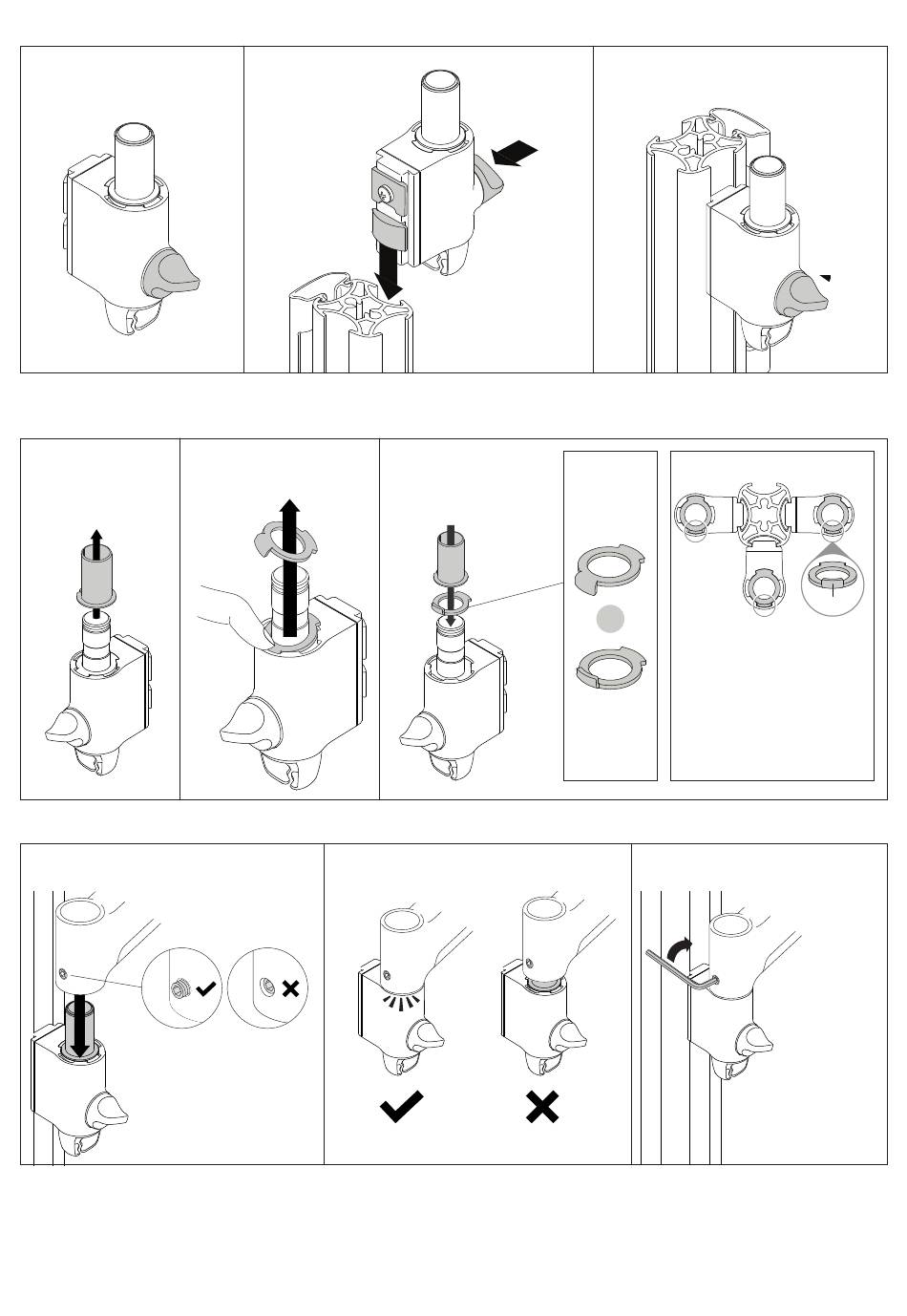

1. Fix channel clamp to post
1.1 Ensure knob is undone.
2. (OPTIONAL) Set arm rotation to 180°
NOTE: Rotation is set to 360° by default.
2.1 Remove plastic
sleeve from
channel clamp.
3. Fit arm onto channel clamp
3.1 Push lower link onto shaft.
IMPORTANT
Ensure plastic
sleeve is fitted
on post clamp.
1.2 Slide channel
clamp into channel.
2.2 Remove
rotation ring.
2. Lift
1. Press
3.2 Ensure arm is fully pushed onto shaft.
Push knob to
aid insertion
2.3 Place rotation ring
in desired position and
replace plastic sleeve.
1.3 Hold clamp in desired position on
channel and turn knob to lock in place.
Default
Position
360°
OR
180°
NOTE: Rotation ring
placement depends on
Flipped
the position of the clamp
Position
on the post. The tag on
the ring should always
face toward the user.
3.3 Tighten joint screw.
AWM-A46HT Page 2 of 4
Tag
NOTE:
Check the
arm rotation is
smooth after
tightening.
