Installation Guide | iC7 Series Liquid-cooled LC Filter OF7Z1
Table 1: Recommended Connectors
Connector
Parker 69111621 MALE STUD
1/2"BSPP SS STEEL 31 6L D16
EPDM SEAL
LC10L
3
1 2

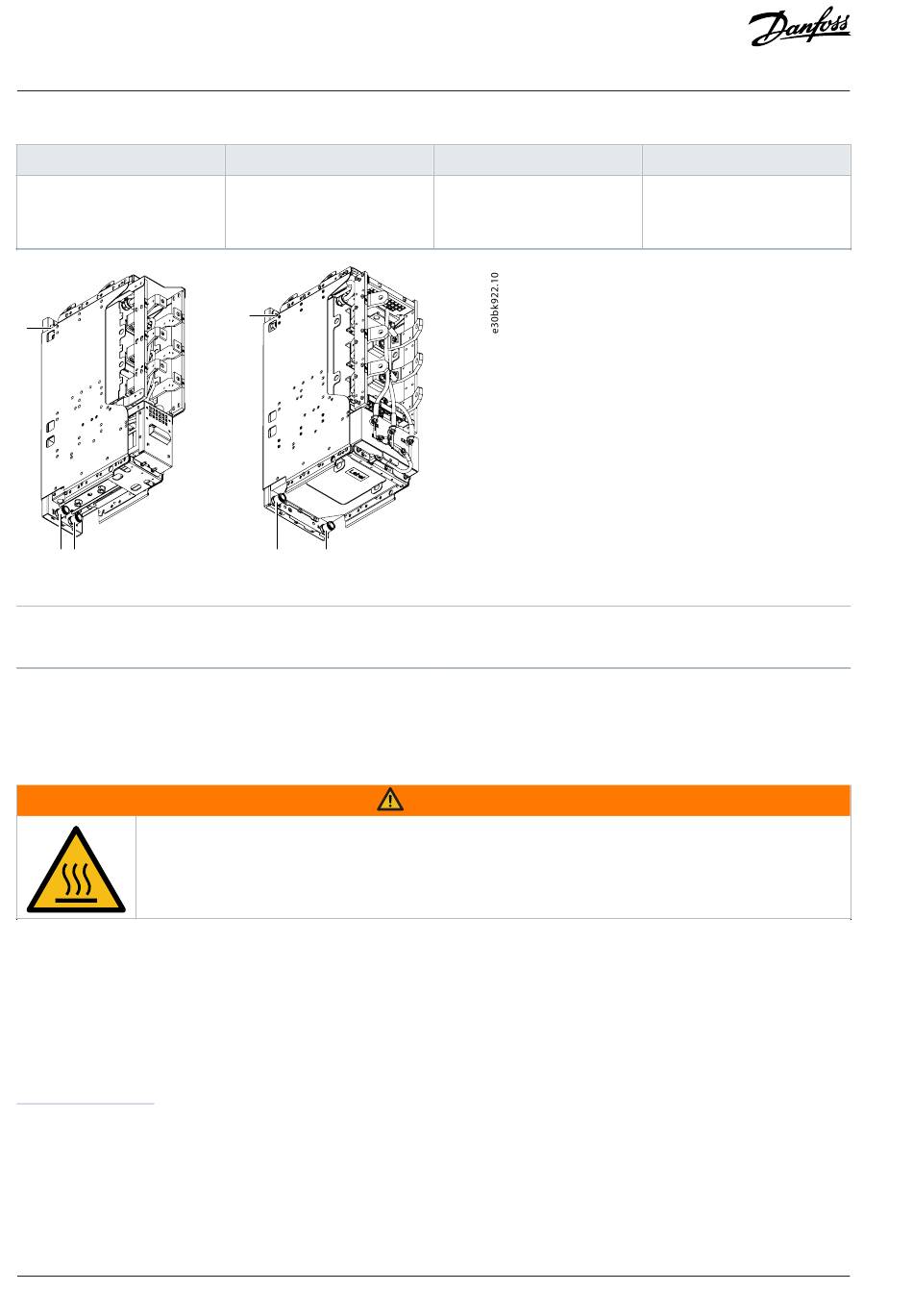

Figure 9: Location of the Cooling Circuit Connectors
1
Outlet connector
3 Alternative outlet connector
4 Electrical Installation
Electrical Installation Safety
4.1
OVERHEATED CABLES
Overheated cables are a fire hazard.
Because of several possible cable installations and environmental conditions, it is important to consider
l
local regulations and IEC/EN standards.
Route the wires away from sharp edges, screw threads, burrs, fins, moving parts, drawers, and similar parts, which can abrade the wire
insulation.
For the main circuit, use double insulated wires or protect the wires with, for example, a protective sleeve or wrap to minimize the risk of
short circuit. Maintain separation between the main and control circuit wires.
4.2 Installing the LC Filter
Install the LC Filter between the AFE and the AC grid. If the AFE has parallel power units, install a separate LC Filter for each of them. See
4.11 Wiring Diagrams.
Cable Requirements
4.3
For information about recommended cable types and required cable sizes, see the iC7 Series Liquid-cooled System Modules Design
Guide.
8 | Danfoss Drives Oy © 2024.11
Tightening torque
20–30 Nm
(177–265 in-lb)
LC12L
3
1 2
WARNING
Pipe
PA 16/13 pipe
2
Inlet connector
Electrical Installation
Pipe ferrule
Parker 1827-16-13
