Installation Guide | iC7 Series Liquid-cooled LC Filter OF7Z1
Table 2: LC Filter Terminal Descriptions
Terminal
L1
L2
L3
L1'
L2'
L3'
PE
Installing the AuxBus Isolation Board
4.8
Install the AuxBus isolation board on the system module.
1. Release the cover of the AuxBus isolation board. Remove the M4x8 combi screw with a TX20 bit.

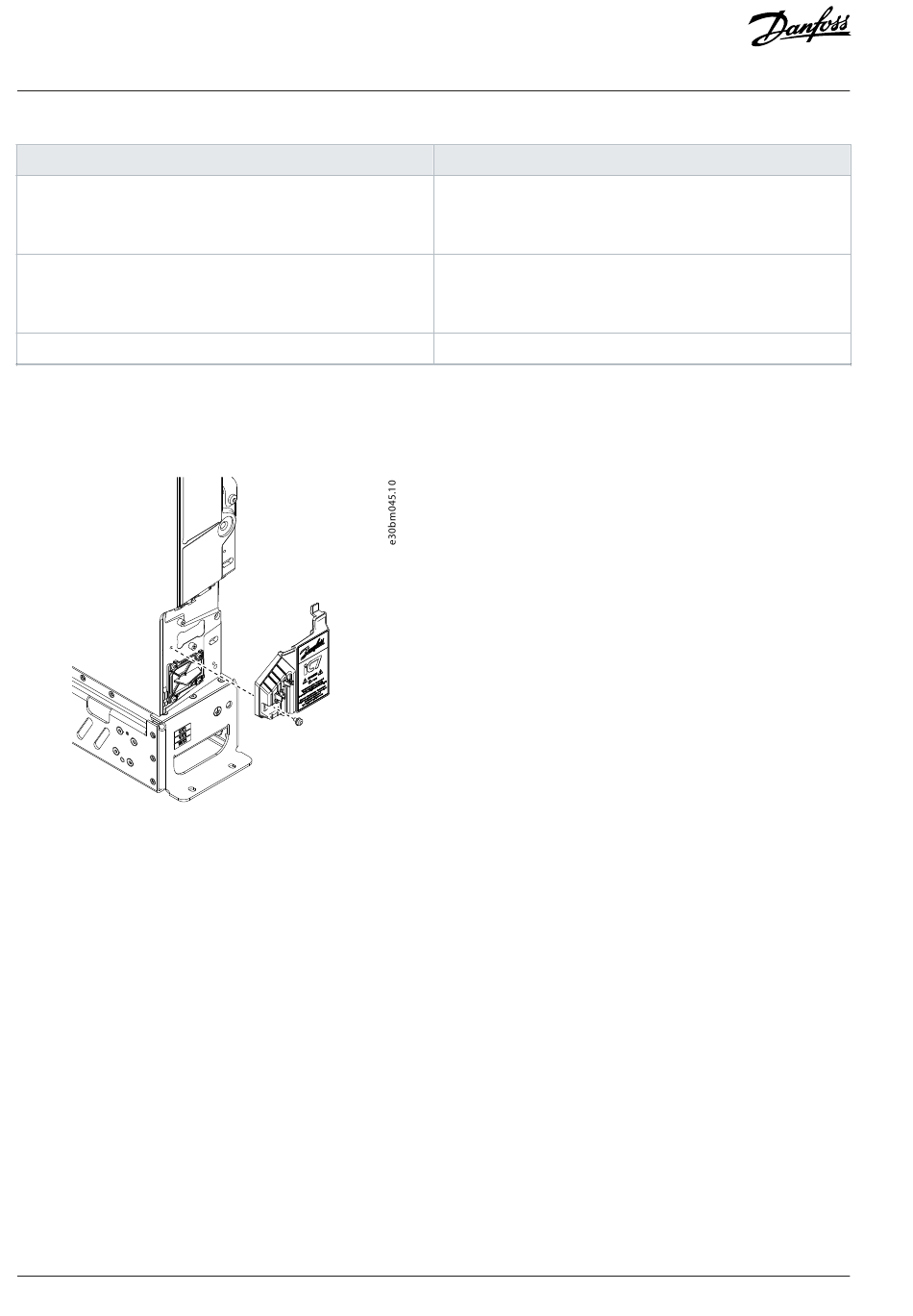

Figure 11: Removing the Cover of the AuxBus Isolation Board
2.
Install the PCB insulator.
a. Mount the spacer screw on the front of the module. Use an 8 mm hex bit and tighten the screw to torque 0.4 Nm.
b.
Mount the PCB insulator on the spacer screw.
10 | Danfoss Drives Oy © 2024.11
Description
AC connection point for mains input
AC connection point for output to AFE
Grounding terminal for filter frame
Electrical Installation
AN447722908366en-000201 / 172K1110B
