Installation Guide | iC7 Series Liquid-cooled LC Filter OF7Z1

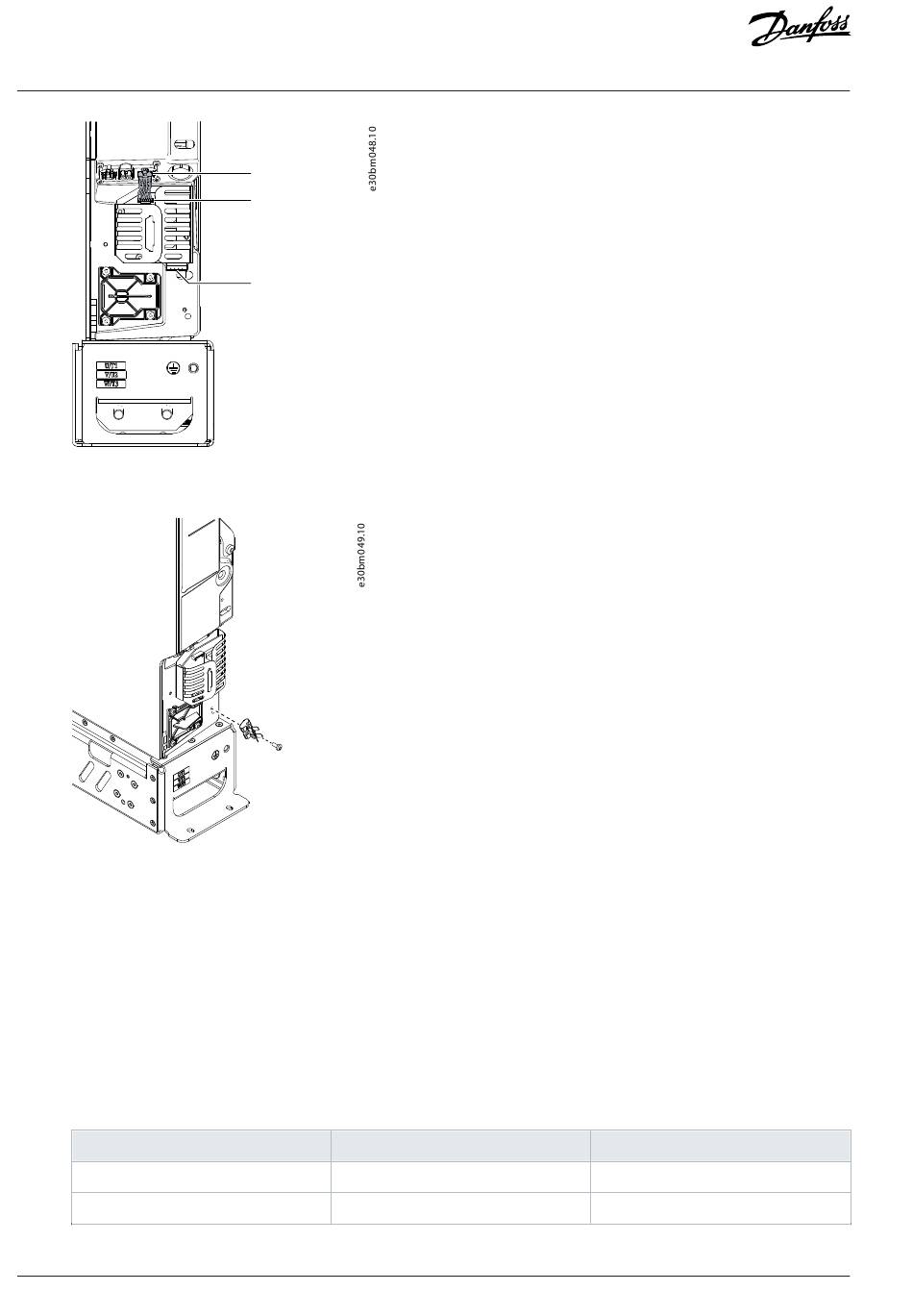

Figure 14: AuxBus Wire Harness Connection
5.
Mount the relief plate with a M4x8 screw. Use a TX20 bit and tighten the screw to torque 2.2 Nm.
Figure 15: Mounting the Relief Plate
6. Reinstall the cover of the AuxBus isolation board. Use the old M4x8 combi screw or the spare one provided in the delivery. Use a
TX20 bit and tighten the screw to torque 2.2 Nm.
Preparing the AuxBus Cable
4.9
1.
Cut the cable to the required length.
2.
To reveal the wires, strip the cable at both ends.
3. At 1 end of the cable, remove approximately 15 mm (0.59 in) of the cable insulation.
4. Strip the wires 7 mm (0.28 in).
5.
Connect the wires to the terminals included in the delivery. Use the tightening torque 0.22–0.25 Nm (1.9–2.2 in-lb).
Table 3: Wiring of the AuxBus Terminals
Pin
1
2
12 | Danfoss Drives Oy © 2024.11
X77
X78
X79
Wire color
White
Brown
Electrical Installation
Signal
+24 V
GND
