Installation Guide | iC7 Series Liquid-cooled LC Filter OF7Z1

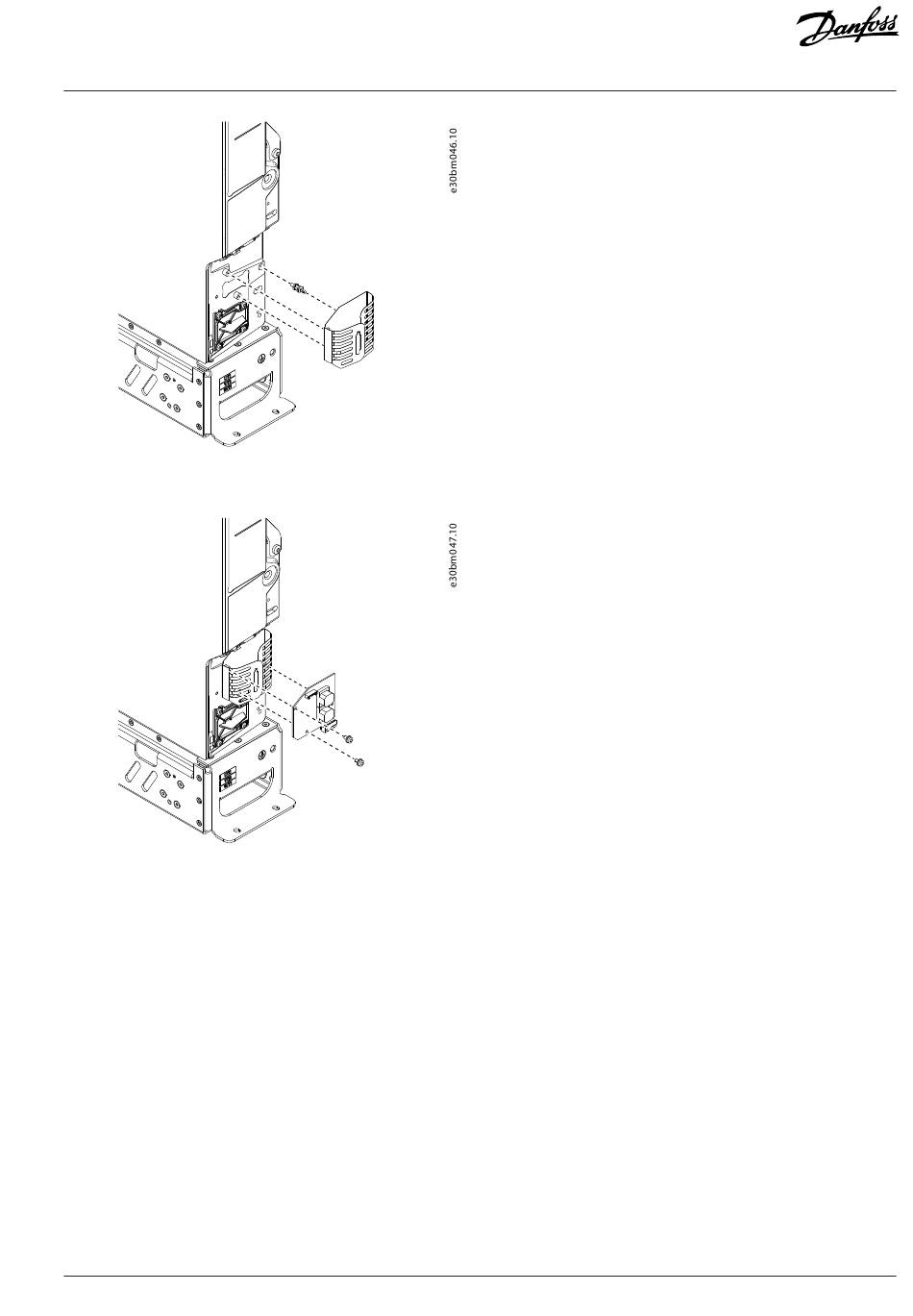

Figure 12: Installing the PCB Insulator
3.
Mount the AuxBus isolation board with 2 size M4x8 combi screws. Use a TX20 bit and tighten the screws to torque 2.2 Nm.
Figure 13: Mounting the AuxBus Isolation Board
4.
Connect the AuxBus wire harness to terminal X78 on the AuxBus isolation board and to terminal X77 on the system module.
Danfoss Drives Oy © 2024.11
Electrical Installation
AN447722908366en-000201 / 172K1110B |
11
