NOTE
When the output voltage has DC voltage, the output terminal L is positive, and N is
negative.

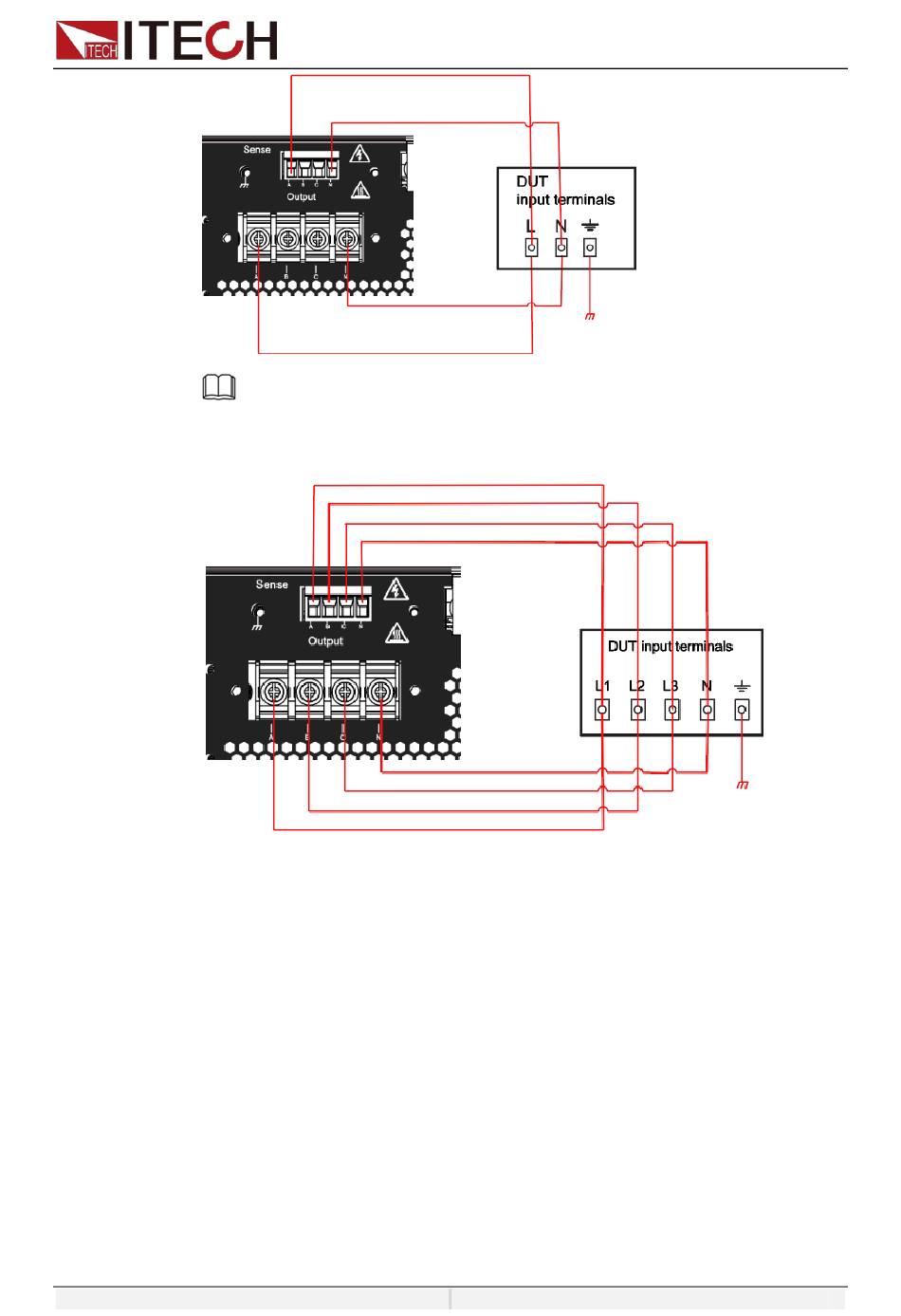

The connection diagram of three phase is shown as follow:
The above diagram shows Y-type wiring as an example. If the user needs △-
type wiring, the N terminal of the IT7900P does not need to be connected to the
object, but the N line of the Sense terminal needs to be connected to the N
terminal of the output terminal.
Copyright ©ITECH Electronic Co., Ltd.
Installation
32
