AC power input
socket

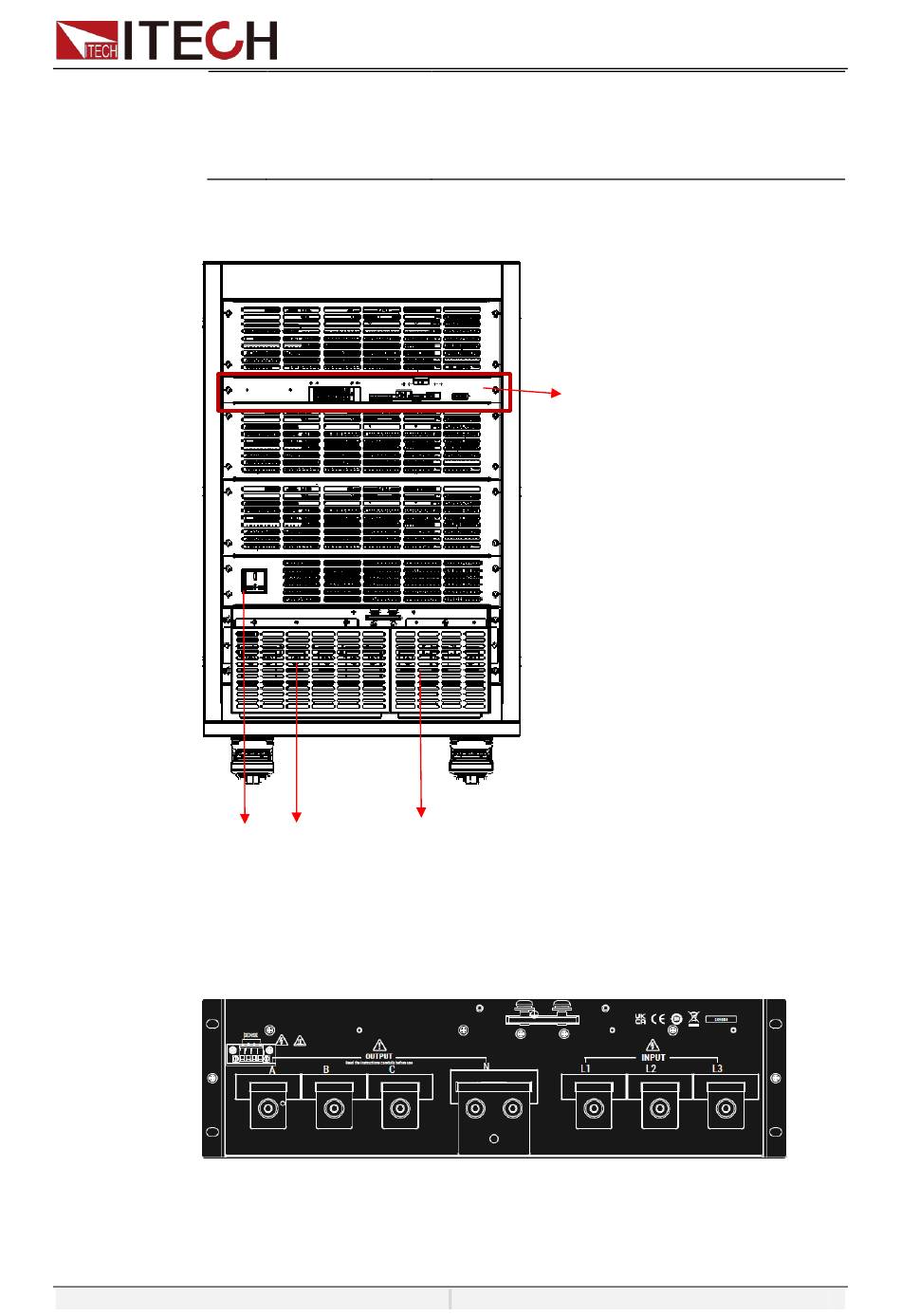

The rear panel of IT7900P series 15U and above series cabinets are the same.
Take IT7945P-350-270 as an example, the rear panel is introduced as shown
below.
2
1
1: Output socket, which can be used when users need single-phase lower than
220V/10A power supply
2: Output terminals and protective cover, remove the protective cover to show
ABCN terminals and sense terminals (M8 hole size)
3: Input terminal, connected to the instrument's power supply (M8 hole size)
4: The communication interface for cabinet, the detailed diagram as follows, and
the descriptions are the same as 3U model.
Copyright ©ITECH Electronic Co., Ltd.
Used to connect AC power to start instrument.
No need to remove the protective cover, insert
the cable connection directly from the left side
of the protective cover. Port spacing is
10.16mm, screw M4 hole size.
4
3
