8.11 Remote Measurement Function
The IT7900P series power supply supports two connection methods: Local
measurement and Remote sensing. The remote sensing is used for maximizing
measurement accuracy. (Refer to 2.4 Connecting Test Lines).
The procedures to set the menu item are as follows.
1. Press the composite keys [Shift] +
2. Press the up/down key or rotate the knob to select Sense compensation
⚫
⚫
3. After the parameter settings are complete, press [Enter].
8.12 Digital I/O Function
This series power supply supports digital I/O function. The user can realize logic
control over high and low level input or output by related configurations in the
system menu.
Pins Introduction
Different I/O implements different functions. The detailed functions description
are shown in the figure below:

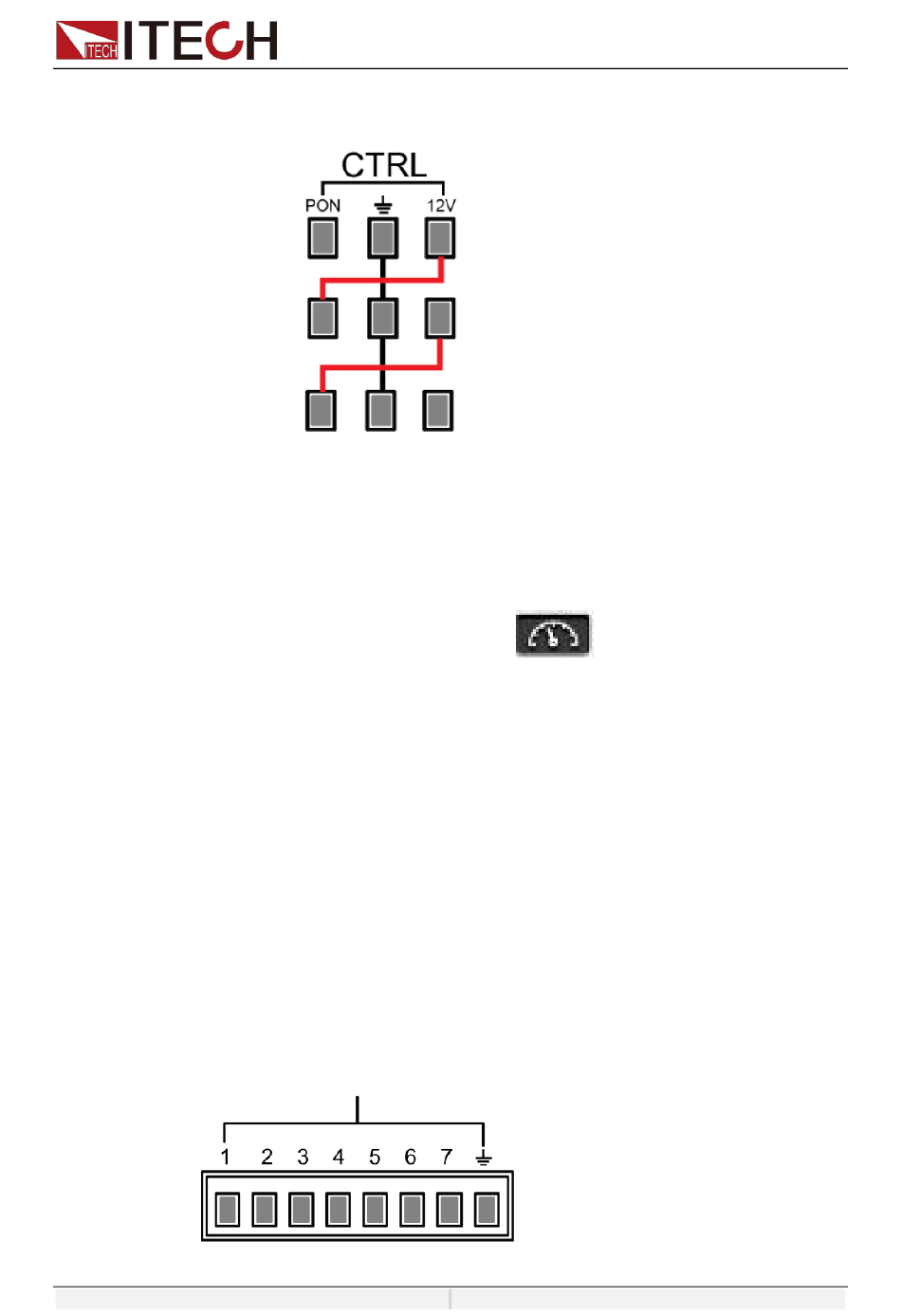

down power to follow the host operation, at this time the slave
cabinet and the master cabinet need to connect the CTRL interface.
The wiring method is shown in the figure below.
enter the system menu.
and press [Enter].
Local: Default value, indicates turn the sense function off.
Remote: Indicates turn the sense function on.
Digital-IO
