INSTALLATION INSTRUCTIONS
C-PHB Series
OCCUPANCY SENSOR ACCESSORY
1. Remove two screws holding wiring chamber cover in place and
remove wiring chamber cover. Set cover and screws aside to
reinstall later. See Figure 2 for location of wiring chamber cover.
2. Remove one 1/2" knockout on one end of the fixture.
3. Mount the sensor by passing the threaded nipple through the 1/2"
knockout opening and secure sensor in place with conduit nut.
4. Make the following wire connections:
• Connect the voltage supply lead to the black wire from the
sensor.
• Connect the neutral supply lead to the white wire from the
sensor.
• Connect the black wire from the driver to the red wire from the
sensor.
5. Replace wiring chamber cover and secure in place with the two
screws removed in Step 1.
6. Adjust sensor settings and choose lens using instructions included
with occupancy sensor.
PENDANT MOUNTING ACCESSORY
1. Remove screw from top of fixture near silver wiring access cover.
Slide wiring access cover towards screw hole and then lift to
remove. Discard screw and wiring access cover.
2. Attach end of 1/2" threaded suspension conduit to pendant box,
using one conduit locknut on the inside of the box and one conduit
locknut on the outside of the box. Conduit and locknuts supplied
by others.
3. Attach pendant box to wiring chamber on top of fixture using the
four bolts provided. Place a lock washer followed by a flat washer
underneath the head of each bolt. See Figure 3.
4. Make wire splices inside pendant box as detailed in Electrical
Connections section.
5. Once the electrical connections are made, complete enclosure of
the pendant box using the supplied face plates and screws. Insert
each face plate into slot on the top of the wiring chamber and then
attach the plates to the pendant box using supplied screws. See
Figure 4.
WIRE GUARD ACCESSORY
1. Position wireguard on face of fixture.
2. Clip four retention brackets onto wire guard at locations to align
with holes in sides of fixture. See Figure 5.
3. Pass supplied screws through holes in the retention brackets.
Thread screws into holes in walls of fixture and tighten.
DIFFUSE LENS ACCESSORY
1. Remove two screws holding lens retention bracket in place at one
end of the fixture. See Figure 1.
2. Set bracket and screws aside to reinstall later.
3. Slide supplied clear lens out of fixture and replace with diffuse
lens.
4. Replace lens retention bracket and secure in place with two
screws removed in Step 1.
http://lighting.cree.com/warranty
Document LPN00480X0001A1_A
Created By: TMT

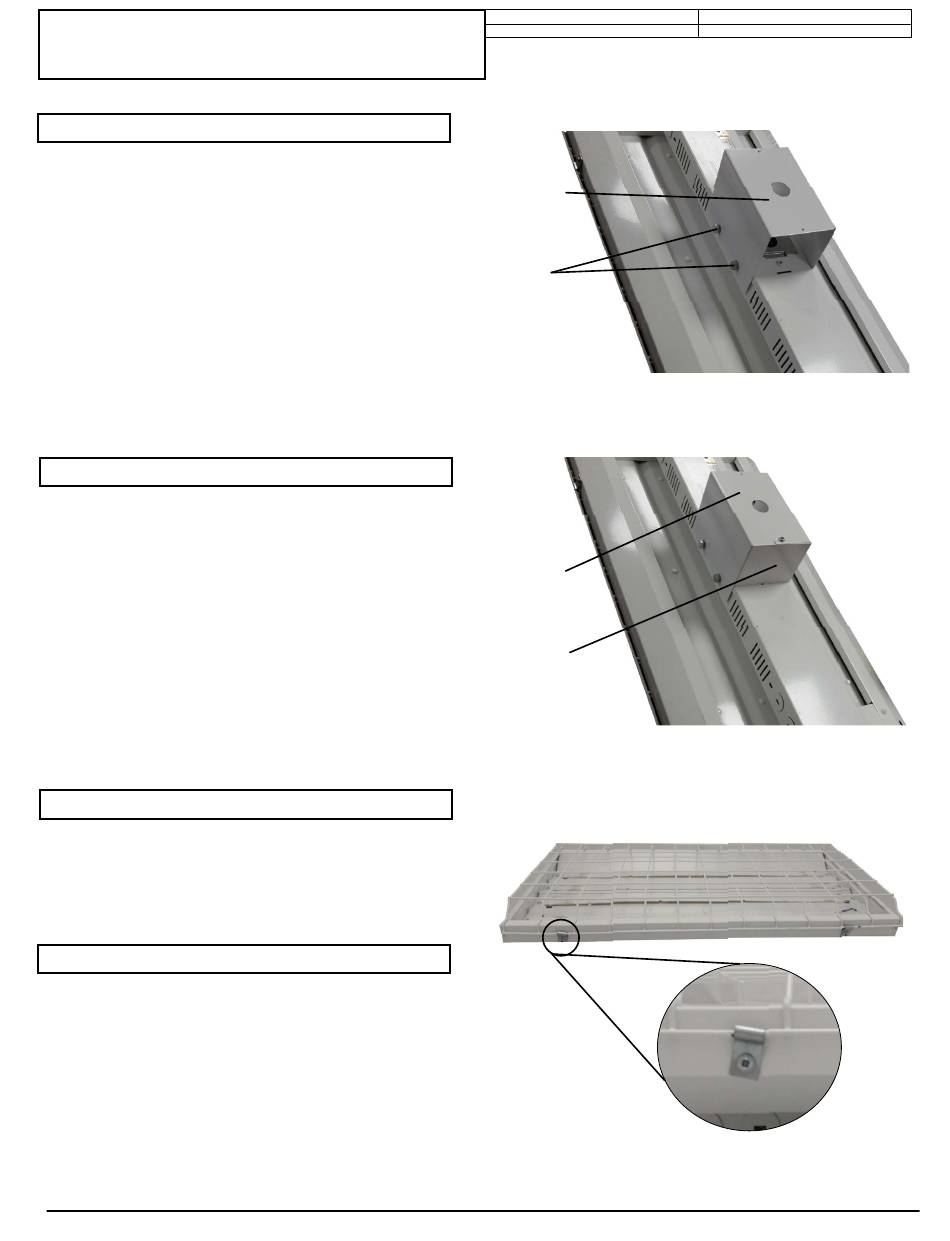

FIGURE 3
Pendant Box
(4) Bolts
FIGURE 4
Pendant Box
Face Plate
FIGURE 5
