Cree OSQ Series Installation Instructions

IMPORTANT SAFEGUARDS

When using electrical equipment, basic safety precautions should
always be followed including the following:
READ AND FOLLOW ALL SAFETY
INSTRUCTIONS
1. DANGER- Risk of shock- Disconnect power before installation.
DANGER – Risque de choc – Couper l'alimentation avant
l'installation.
2. This luminaire must be installed in accordance with the NEC or
your local electrical code. If you are not familiar with these codes
and requirements, consult a qualified electrician.
Ce produit doit être installé conformément à NEC ou votre code
électrique local. Si vous n'êtes pas familier avec ces codes et ces
exigences, veuillez contacter un électricien qualifié.
SAVE THESE INSTRUCTIONS FOR
FUTURE REFERENCE
TO INSTALL:

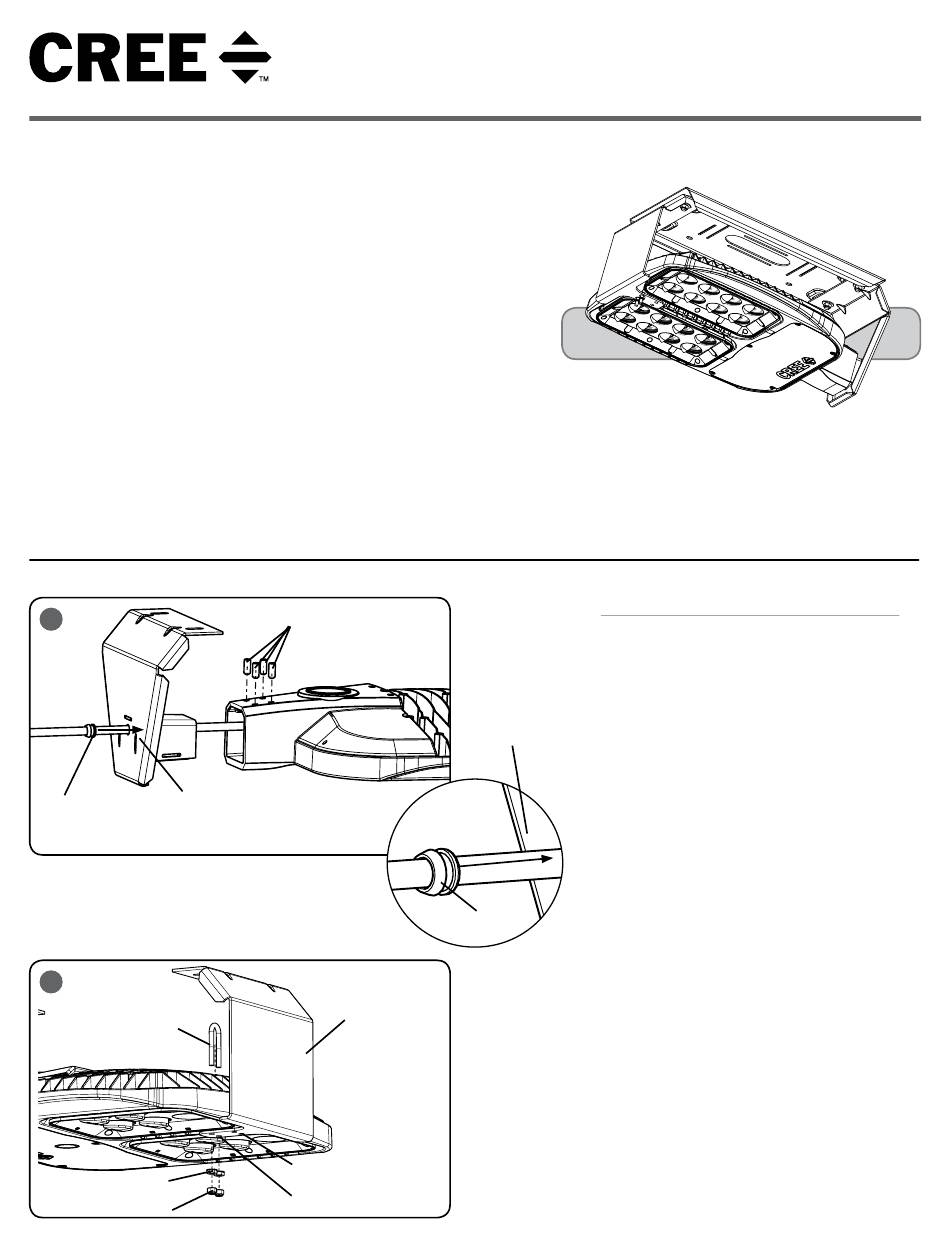

1
Rear Mounting
Grommet
Bracket
2
U-Bolt
Nuts
Lock Nuts
1 of 3
Socket Head Set Screws
Front Plate
• First 2 holes for OSQ Large
Luminaires
• Second 2 holes for OSQ Medium
luminaires
NOTES:
• Before installing, ensure the mounting surface and
securement points are structurally sound and capable of
supporting the weight of the luminaire.
• DO NOT lift the luminaire by the cord.
DIRECT MOUNT
STEP 1:
Install grommet into rear mounting bracket. Orient
grommet as shown in Figure 1.
STEP 2:
Route power cord from luminaire through grommet in
rear mounting bracket. See Figure 1.
Rear Mounting
Bracket
STEP 3:
Slide the rear mounting bracket into the luminaire
housing. See Figure 1.
STEP 4:
Tighten (4) 3/8-16 socket head set screws located
on the luminaire housing to 85 in-lbs (9.6 N-m). See
Figure 1.
STEP 5:
Align front plate with luminaire housing and insert
Grommet
U-bolt. U-bolt position is dependent on luminaire size.
See Figure 2 and 3.
STEP 6:
Install (2) 1/4-20 nuts with integral lock washer
onto U-bolt. The lockwasher should be against the
mounting plate. Torque to 60 in-lbs (7 N-m). See
Figure 2.
STEP 7:
Install (2) 1/4-20 lock nuts and torque to 120 in-lbs
(14 N-m) while holding the nuts installed previously in
Step 7 to prevent rotation. See Figure 2.
OSQ Series
LED Area Light
Transportation Mount
INSTALLATION INSTRUCTIONS
INSTRUCTIONS D'INSTALLATION
LPN00598X0001A0_A
