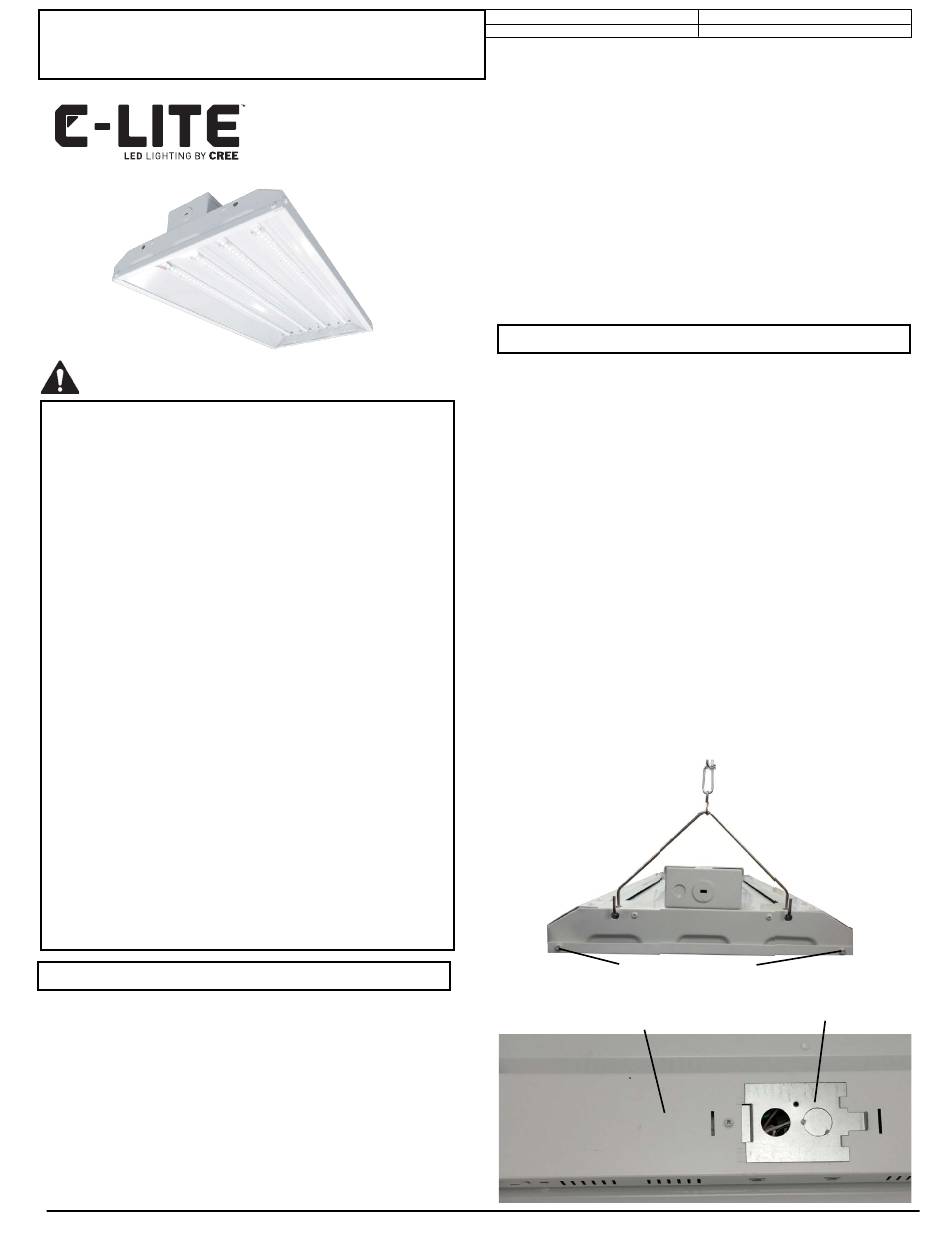

Cree C-LITE C-PHB Series Installation Instructions Manual

INSTALLATION INSTRUCTIONS
C-PHB Series
CAUTIONS
IMPORTANT SAFEGUARDS
When using electrical equipment, basic safety
precautions should always be followed including the
READ AND FOLLOW ALL
SAFETY INSTRUCTIONS
1. DANGER- Risk of shock- Disconnect power before
installation.
DANGER – Risque de choc – Couper l'alimentation
avant l'installation.
2. This luminaire must be installed in accordance with the
NEC or your local electrical code. If you are not familiar
with these codes and requirements, consult a qualified
electrician.
Ce produit doit être installé conformément à NEC ou votre
code électrique local. Si vous n'êtes pas familier avec ces
codes et ces exigences, veuillez contacter un électricien
qualifié.
3. MIN. 90°C SUPPLY CONDUCTORS.
LES FILS D'ALIMENTATION 90°C MIN.
4. To prevent wiring damage or abrasion, do not expose
wiring to edges of sheet metal or other sharp objects.
SAVE THESE INSTRUCTIONS
FOR FUTURE REFERENCE
CHAIN SUSPENSION
1. Insert the supplied wire hangers through the slotted holes on the
top of the fixture and pass the ends of the hangers through the
round holes on the ends of the fixture (See Figure 1). To prevent
wire hangers from disconnecting from the fixture, pinch the ends
of the wire hangers shut.
2. Attach the s-hook on the end of one of the supplied hanging
chains to one of the wire hangers. Pinch the s-hook closed to
prevent accidental disconnection from the wire hanger. Repeat
with second chain at other end of the fixture.
3. Attach opposite ends of the chains to mounting surface. Make
sure mounting surface and customer supplied hardware can
support the weight of the fixture.
following:
http://lighting.cree.com/warranty
Document LPN00480X0001A1_A
Created By: TMT
4. Remove screw from top of fixture near silver wiring access cover.
Slide wiring access cover towards screw hole and then lift to
remove. Remove 1/2" knockout in wiring cover. See Figure 2.
Cord Kit:
5.
Insert leads of cord through hole in wiring access cover and snap
strain relief into cover
Conduit:
Insert leads from conduit through hole in wiring access cover.
Secure conduit to cover with conduit nut on opposite side of the
cover.
6. See Electrical Connections for wiring.
7. Replace wiring access cover by reversing sequence used to
remove it. Make sure both ends of cover are engaged with the top
of the wiring chamber. Secure cover in place using screw removed
in Step 4.
ELECTRICAL CONNECTIONS
Fixture is equipped with universal volt driver 120-277V
(ie. 120V, 208V, 240V or 277V)
PHASE TO NEUTRAL WIRING 120/277V
1. Connect supply ground to fixture ground (green) lead.
2. Connect supply common to fixture neutral (white) lead.
3. Connect supply Vin to fixture hot (black) lead.
Tuck all wires carefully into wiring chamber ensuring that no
wires are pinched.
PHASE TO PHASE WIRING 208/240V
1. Connect supply ground to fixture ground (green) lead.
2. Connect supply L1 (Hot) to fixture neutral (white) lead.
3. Connect supply L2 (Hot) to fixture hot (black) lead.
Tuck all wires carefully into wiring chamber ensuring that no
wires are pinched.
DIMMING
1. Grey and violet leads are for 0-10V dimming systems.
Cap off if not used.
FIGURE 1
Lens Retention Bracket Screws
FIGURE 2 Wiring Chamber Cover
| 866.924.3645
Date: 02-26-2019
Wiring Access Cover
