Cree LS Series Installation Instructions

IMPORTANT SAFEGUARDS

When using electrical equipment, basic safety precautions should always be
followed including the following:
READ AND FOLLOW ALL

SAFETY INSTRUCTIONS

1. DANGER- Risk of shock- Disconnect power before installation.
DANGER – Risque de choc – Couper l'alimentation avant
l'installation.
2. This luminaire must be installed in accordance with the NEC or your
local electrical code. If you are not familiar with these codes and
requirements, consult a qualified electrician.
Ce produit doit être installé conformément à NEC ou votre code
électrique local. Si vous n'êtes pas familier avec ces codes et ces
exigences, veuillez contacter un électricien qualifié.
SAVE THESE INSTRUCTIONS
FOR FUTURE REFERENCE
TO INSTALL:
1
2
1 of 2
Push The Connected
Connectors Inside
Luminaire

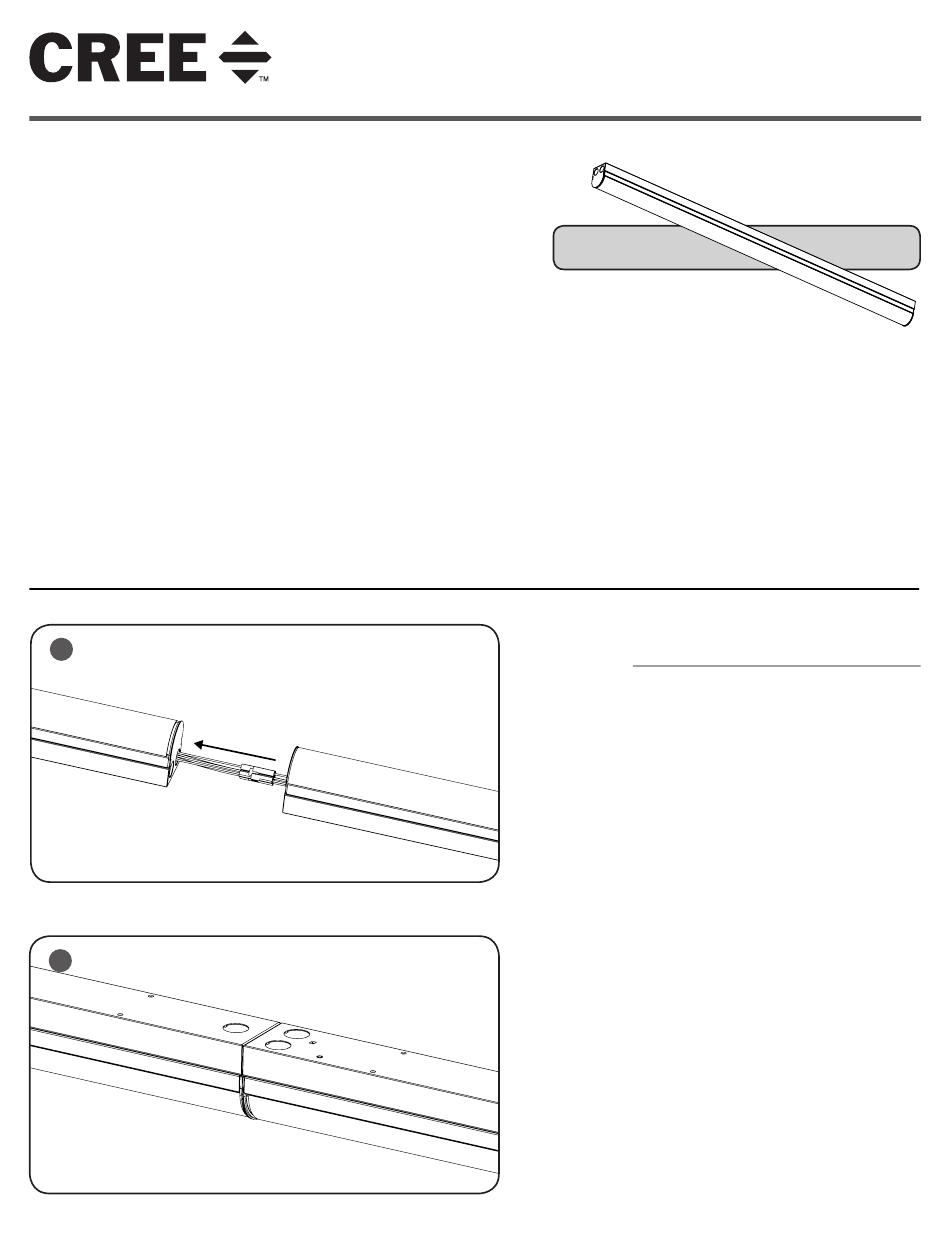

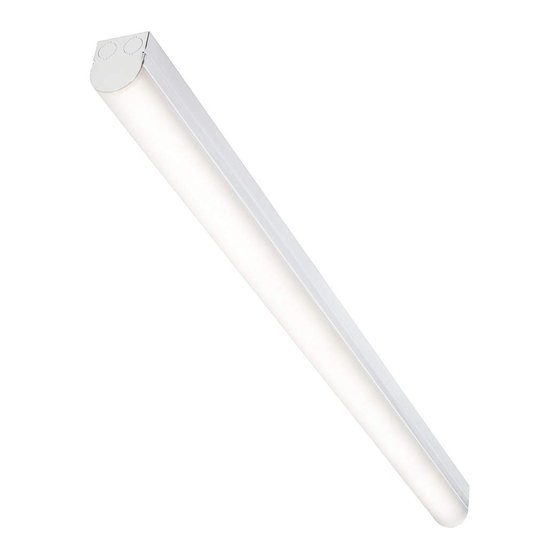

LED Surface Ambient Luminaire with Through-Wiring/Quick-Connects
NOTES:
INSTALLATION INSTRUCTIONS
• Available luminaire length are 4' and 8'.
• Suitable for Damp Locations
• Designed for use in 120-277V 60Hz protected circuit
(fuse box, circuit breaker). Supply wire size as per
NEC or governing code(s), 90C rated.
LUMINAIRE INSTALLATION
STEP 1:
Attach LS luminaire to mounting surface.
STEP 2:
Attach the connectors from adjoining luminaires
and push the connection into the luminaire. See
Figure 1.
STEP 3:
Push the two adjoining luminaires against each
other as shown in Figure 2.
LS Series
Includes: LS4 and LS8
LPN00434X0001A0_B
