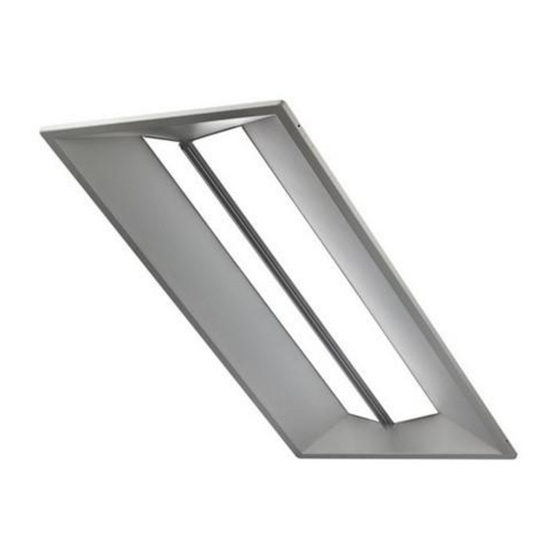

Cree CR24 UPKIT Installation Instructions

CR24-UPKIT Includes:
(2) Outer Adapter Mount (2) Inner Adapter Mount
(2) Side Panels (2) Ground Wire Assembly (5) Mount Plugs
(1) Light Engine
(Packaged Separately)
TO INSTALL:
1a
1b
CR24 UPKIT
NOTICE: Do not install with total power input greater
than power rating of original fixture.
WARNING – Risk of fire or electric shock. LED
Retrofit Kit installation requires knowledge of
luminaires electrical systems. If not qualified, do not
attempt installation. Contact a qualified electrician.
WARNING – Risk of fire or electric shock. Install this
kit only in the luminaires that have the construction
(2) End Mounts
features and dimensions shown in the photographs
and/or drawings. Do not make or alter any open
holes in an enclosure of wiring or electrical
components during kit installation.
WARNING – To prevent wiring damage or abrasion,
do not expose wiring to edges of sheet metal or
other sharp objects.
NOTICE: This kit is intended for use with existing
light fixtures where the host light fixture is either
(a) provided with no open holes larger than 26mm
(0.04in
non-fire rated installations.
NOTE: Suitable for bi-level switching only on line
voltage input for low voltage dimming connections,
Class 1 wiring methods shall be employed.
NOTE: This kit is intended for use with existing light
fixtures with standard 2' width, 4' length and an
internal height of minimum 3".
NOTE: This retrofit is suitable for use in Type IC
applications.
1b
Light Engine Flange
Tab Holes
Snap Tabs
Flange Slot
Guide Slot
Guide Rail
Lamp
Lamp Holder
2b
Holder Leads
Ballast
Ballast Cover
Fluorescent
Light Bulbs
Lens/Louver
CR24 UPKIT
INSTALLATION INSTRUCTIONS
) in area, or (b) rated, and marked, for use in
2

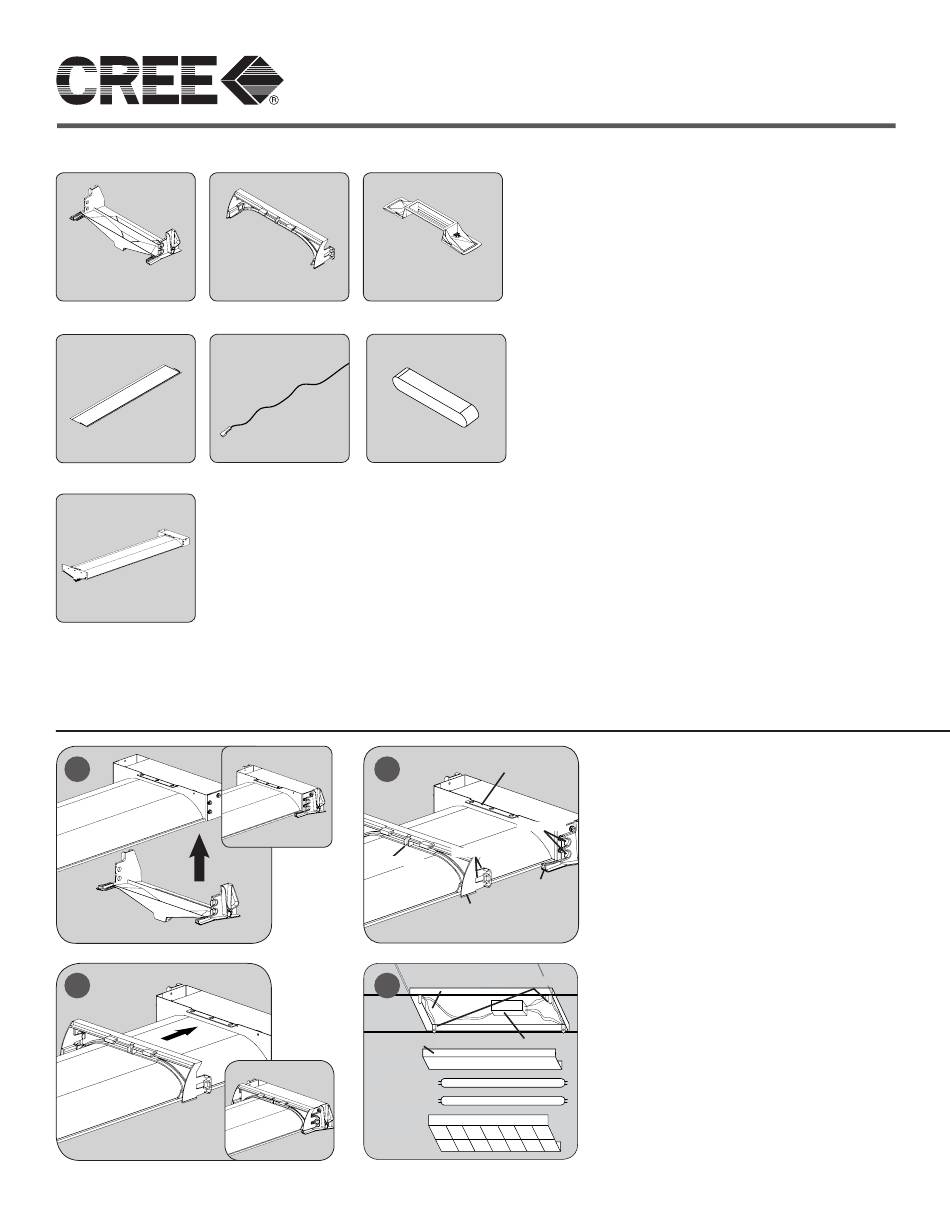

PREPARE LIGHT ENGINE FOR INSTALLATION
Step 1:
a. Slide Outer Adapter Mount up around the
Driver Enclosure on the Light Engine.
b. Install the Inner Adapter Mount by sliding it
along the Light Engine Reflector making sure
that the guide rail on the Inner Adapter enters
the guide slot on the Outer Adapter. Also
ensure that the flange on the Light Engine
glides into the flange slot on the Inner Adapter
Mount. Once together, verify that the snap tabs
are fully engaged in the tab holes.
c. Repeat the steps on the other end of the
Light Engine that doesn't have the Driver
Enclosure.
PREPPING THE HOST LIGHTING FIXTURE
Step 2:
a. Disconnect power to the host lighting fixture
to be replaced.
b. Remove the Lens/Louver, Fluorescent Light
Bulbs, Lamp Holders, Lamp Holder Leads and
Ballast Cover from lighting fixture.
2
