10.5.3.3 Single Measurement Info panel

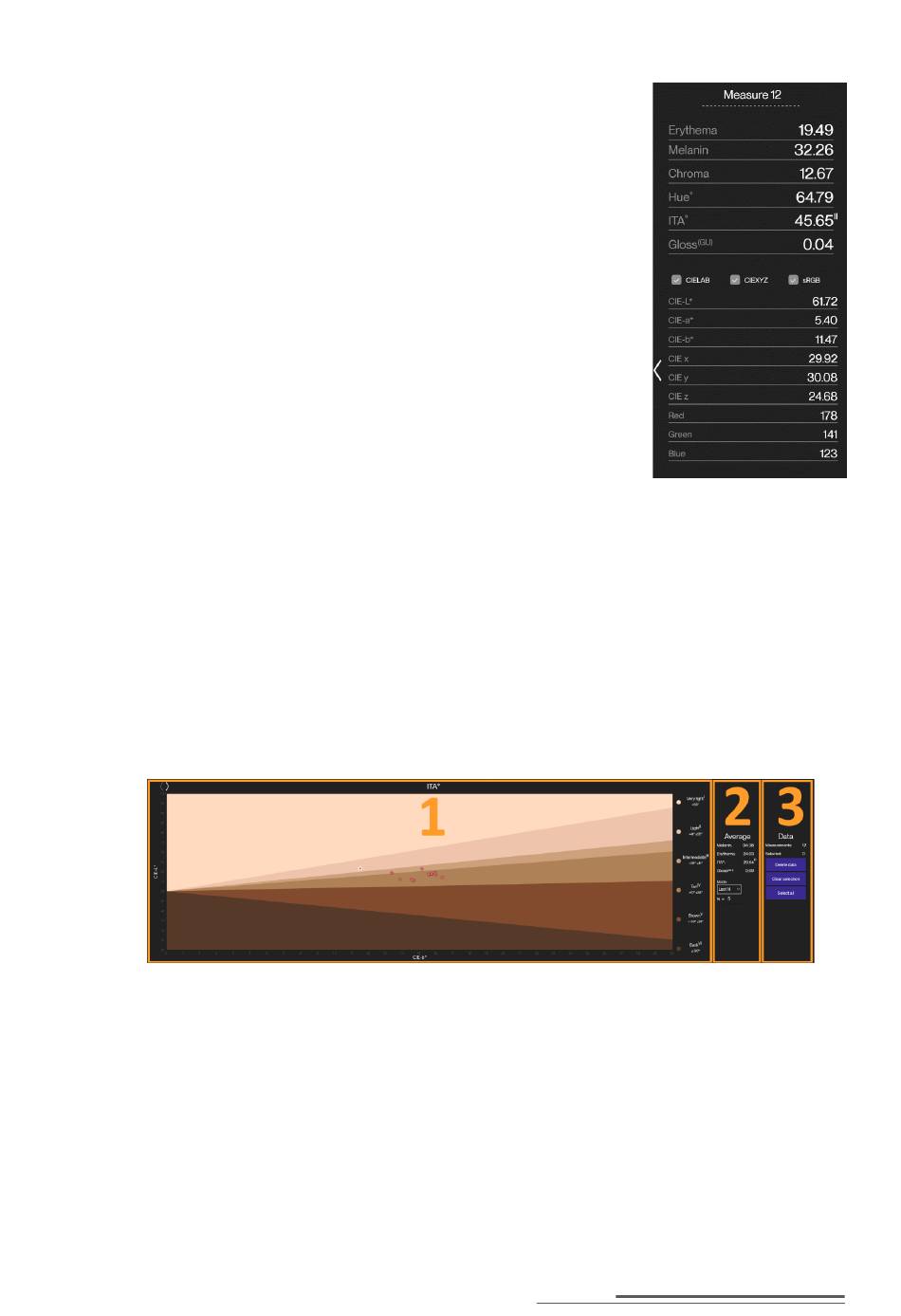

The single measurement info panel covers info regarding a selected
measurement as shown in 10.5.3.7.1. When a measurement is made
it will automatically appear in the info panel until a new measurement
is selected from the measurement list.
The name of the measurement can be edited and will be reflected in
the measurement list.
Gloss will be presented if gloss measurements are enabled.
The following data can be toggled on/off:
•
CIELAB values
•
CIEXYZ values
•
sRGB values
Toggling this data off can help make room on smaller screens. If the
screen is too small to display all toggled data, the panel will become
scrollable by mouse wheel.
If the single measurement panel is not needed, it can be minimized
by pressing the arrow on the left side of the panel.

10.5.3.4 Data presentation panel

This section will cover the data presentation panel at the top of the Extended view. As several
functionalities are present, the following figure shows the panel split into 3 sections that will cover
the following:
•
1: Graphs covered in section 10.5.3.5
•
2: Average Calculator covered in section 10.5.3.6
•
3: Measurement List functions covered in section 10.5.3.7

10.5.3.5 Graphs

Two graphs are available for displaying measurement data, ITA and color spectrum data. The
graphs can be toggled by using the two arrows at the top left.
ITA Graph:
This is the default graph shown in the Skin Colori Probe Software. All Measurements in the meas-
urement list will be displayed in the graph if the measurement is within the margin for skin ITA.
Any new measurement will be displayed as red circles. The Latest measurement performed will
be highlighted by a white ring, as shown in the following figure. Any measurements selected in the
Data presentation panel numbered for reference.
