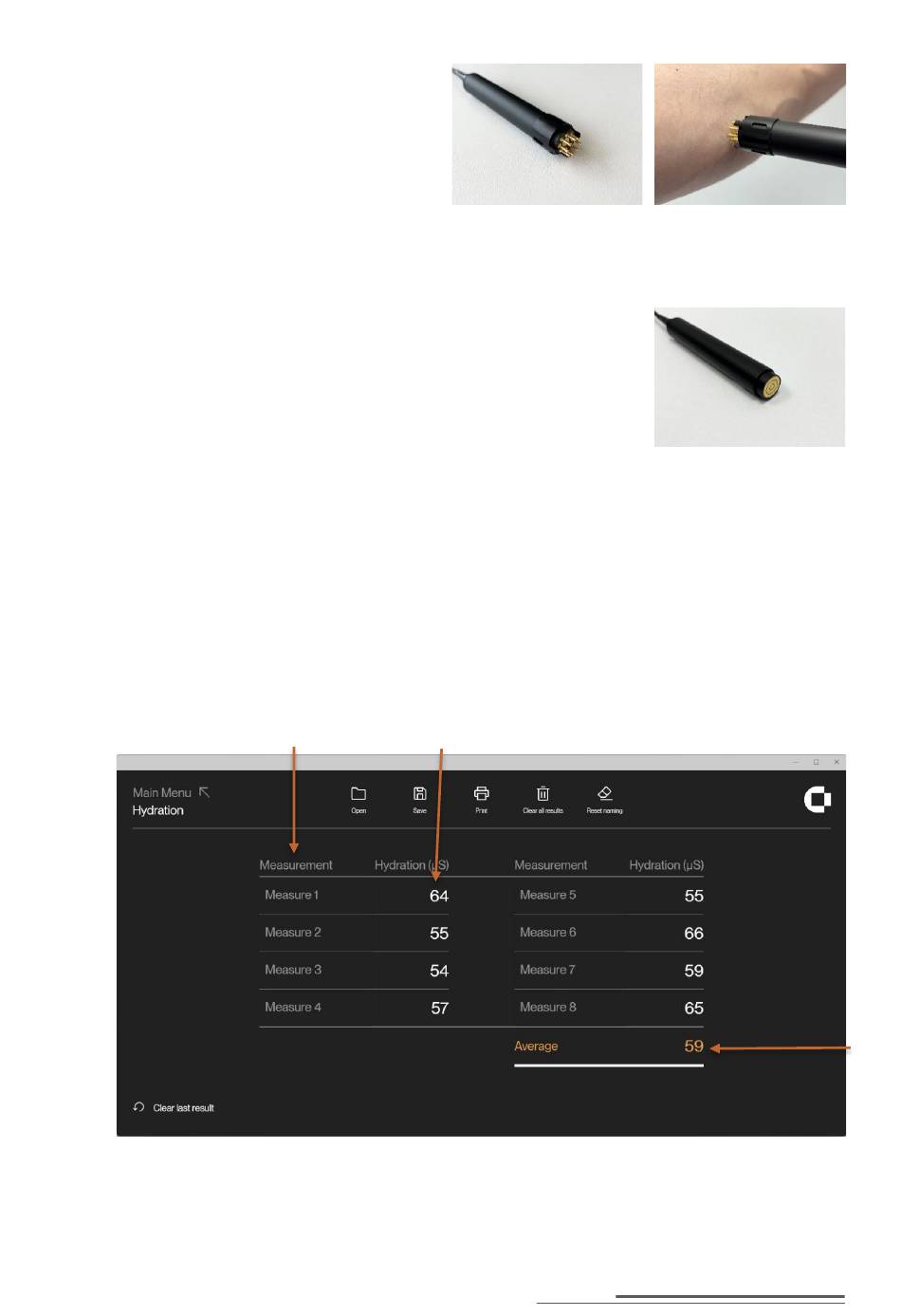

Flat Probe; The Hydration Screen - Cortexa Technology DermaLab Mini Instructions For Use Manual

The probe features spring-loaded action,
which will initiate a measurement when the
probe is pressed against the skin.
The probe comes with a ventilating spacer
to facilitate application of constant meas-
urement pressure and reduce accumula-
tion of water in the measurement area.

7.4 FLAT probe

The FLAT probe offers a traditional design with three concentric, cir-
cular electrodes. This flat design is convenient when measuring on
larger areas of normal skin with no interference from hairs and scales
etc.
Spring loaded action initiates the measurement when the probe is
pressed gently against the skin.

7.5 The Hydration screen

Up to 8 measurements can be made with the average (A) being continuously updated for each
new measurement. Hydration measurements may fluctuate, and an average of 3 to 8
measurements is recommended as the final result.
To perform a measurement, gently press the probe against the skin until the measurement is trig-
gered, and the measurement result appears in the next empty field (C).
The text fields (B) can be used to label each measurement. Click on the label to enter text.
B
Pin probe with ventilating spacer.
C
Hydration screen.
CORTEX TECHNOLOGY ApS
FLAT probe.
A
25/66
