10.5.2.9 Change sample rate

2: If Single is selected, the system will make just one measurement. If Continuous is selected,
multiple measurements will be made until stopped manually. Use the "Max" field to indicate the
maximum number of measurements required while in continuous mode. During continuous sam-
pling a new measurement will be taken roughly every 2 seconds. Continuous sampling can be
stopped by either pressing the stop button, or by pressing the button on the side of the Colorime-
ter device.

10.5.2.10 Sample button

3: The sample button will initiate a measurement when pressed.

10.5.3 Data View

This section will cover the two types of views for presenting data in the user-interface. Several
data points are presented in the data view independent of which view is enabled.

10.5.3.1 Normal View

Normal view allows for a maximum of 4 measurements to be presented at a time. An average of
every measurement currently listed is available as well. The following 2 figures show the normal
view without any data, and the same view after 4 measurements have been made. The last figure
shows the same view changed to only display gloss values. The view can also be configured to
show everything except gloss values. These settings will be described in section 10.5.4. Normal
view includes the option to clear last result as displayed in all 3 figures in the lower left. Pressing
this button will delete the last measurement made. If 4 measurements are present in the window,
no further measurements will be logged until space has been made by either clicking the clear last
result button or clearing all data as described in section 10.5.2.4.

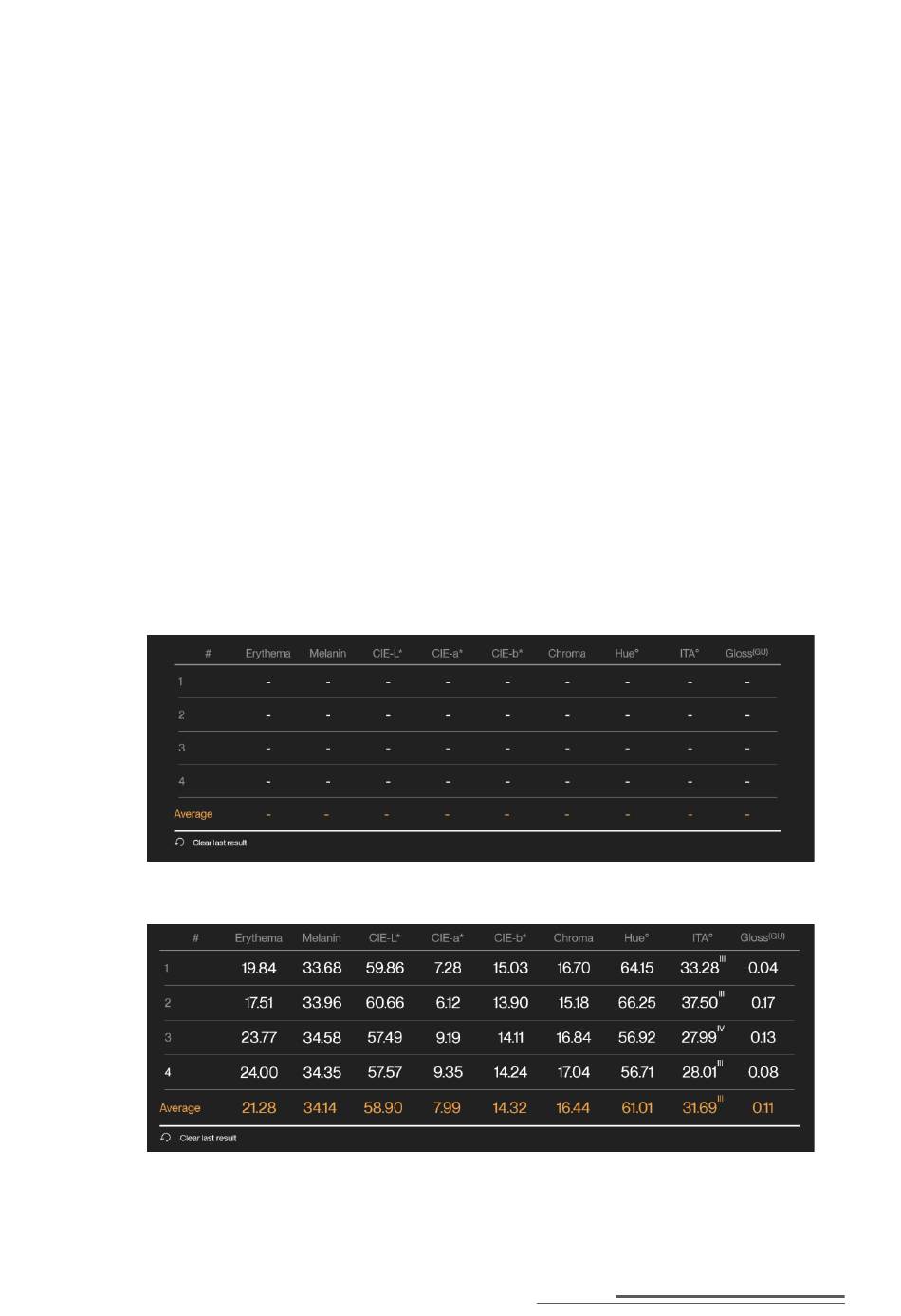

Normal view without any data
Normal view with data
