Calibration

10.4

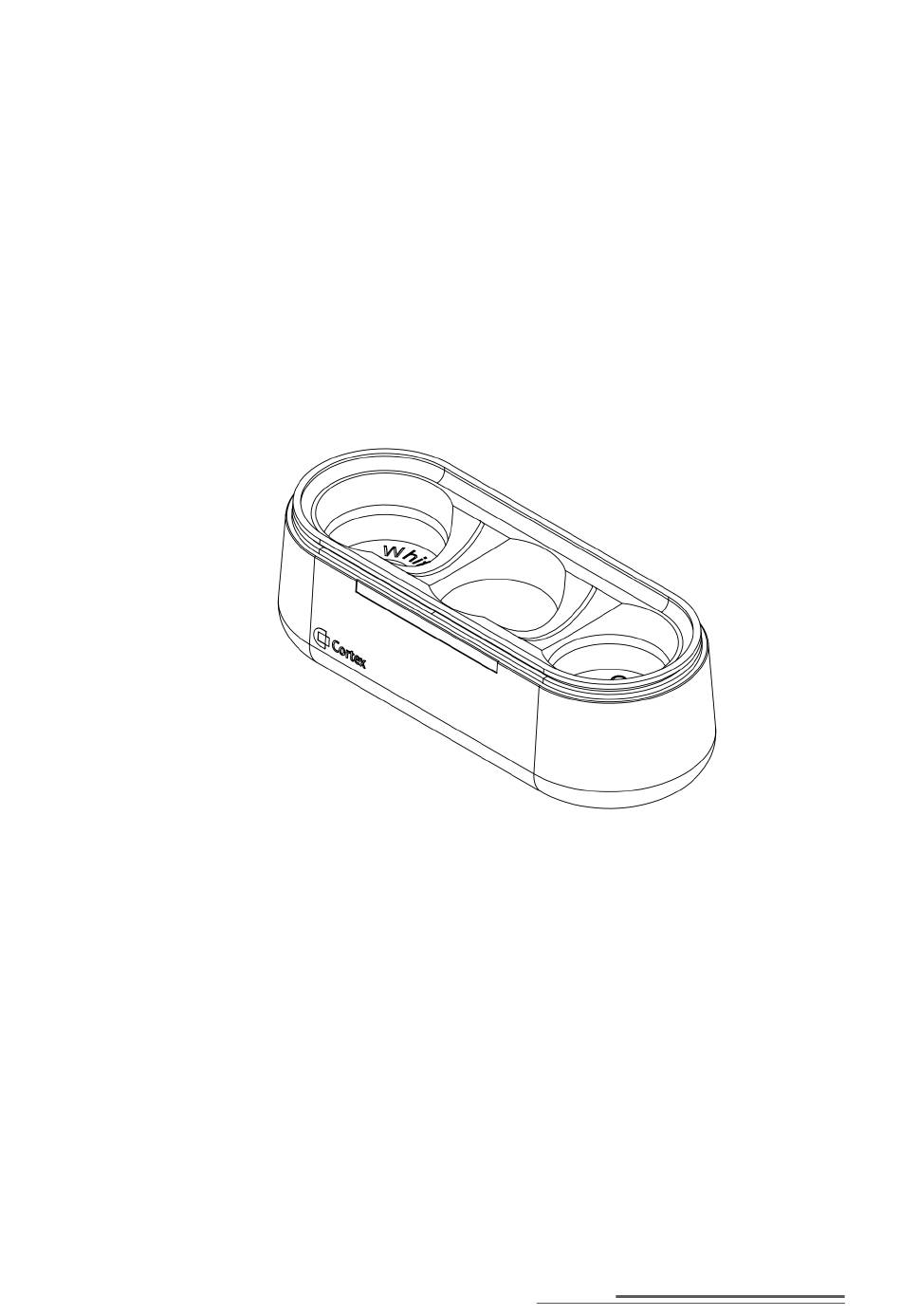

Calibration is performed using the supplied calibrator that contains working standards for white,
zero, and gloss.
It is not necessary to re-calibrate each time the unit is turned on. However, it is recommended to
re-calibrate on a regular basis - e.g. daily or after 100 measurements.
Different parts of the calibrator are used based on what measurement mode is currently set for
the Skin Colori Probe. During a Calibration, the software will indicate which calibrator slot is to be
used. Rejection of calibration can happen either due to dirty working standard or a bad measure-
ment. If a measurement on the calibrator is rejected, the software will display a rejection message
and not proceed with the calibration until a proper measurement has been performed.
Keeping the lid of the calibrator closed will protect the working standards from dust and scratches
and prevent environmental light affecting the working standards.

10.5 Software

This section will give a brief description of available features in the Skin Colori Probe software.

10.5.1 General

In the following figure, the main User-Interface has been divided into three areas for the purpose
of this guide. Areas 1, and 2, annotated with orange numbers are general menus available at all
times when using the Skin Colori Probe.
The areas will henceforth be referenced as:
•
Area 1 is the "top menu" covered in paragraph 10.5.2.
•
Area 2 is the "bottom menu" covered in paragraph 10.5.2.7.
•
Area 3 is the "Data View" covered in paragraph 10.5.3.
•
The Settings is covered in 10.5.4.
•
Documents generated from the software is covered in paragraph 10.5.5.
