6.4.5 The Ultrasound Standard probe screen

The screen facilitates simultaneous presentation of two images – e.g. a new image in comparison
with a previously saved recording or two new recordings from different body areas.
One of the image positions is considered the active window, indicated by the white borderline of
the frame (A). Select the active position by clicking inside the window. New recordings will appear
in the active window.
Touching the Sample button (B) will record a new ultrasound image.
The gain (ultrasound sensitivity), used when recording the ultrasound image, may be adjusted us-
ing the up/down arrows (C).
Note: The new gain applies to the next image being recorded and will not change the already rec-
orded and saved images. The gain used at the time of recording an image is displayed on the bot-
tom of the images as "Stored Gain".
Typical gain settings are 0 (zero) for scanning on the forearm and 4 on the temple.
Touch Save to save images. Previously saved images may be loaded using the Open button. All
measurement data are saved together with the image for future reference.
G
D
E
F
Two sets of measurements (D, E) for each image relate to the use of the Graph and Grid buttons
(F), which will be explained later in this section under Graph/Grid measurements respectively.
Supportive text may be entered into the text fields (G).
A

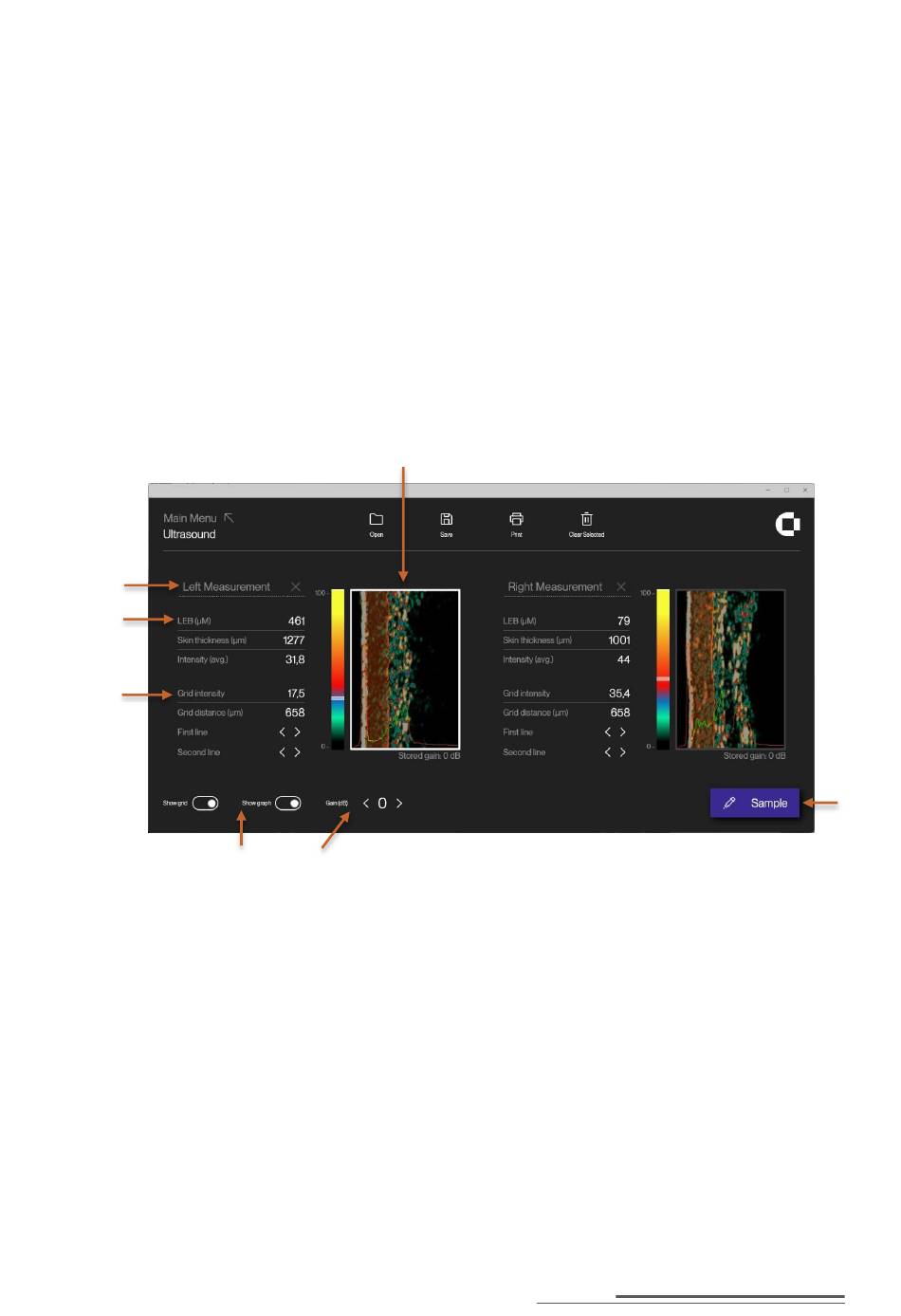

Ultrasound main screen, Standard probe.
C
