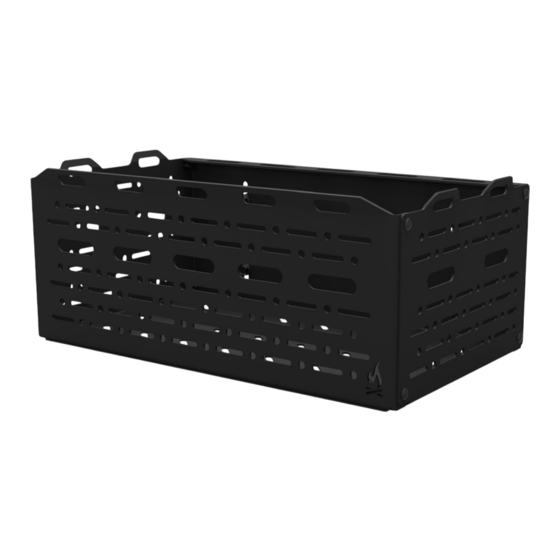

RE AR P L ATF O R M GEAR CAGE
UN1 12 0B
INSTALLATION
GUIDE
F L AT L I N E VA N C O • S U P P O R T @ F L AT L I N EVA N C O . C O M • 8 8 8 - 6 6 7- 5 5 7 6
TOOLS REQUIRED
(NOT INCLUDED)
+
9/16" SOCKET
+
RATCHET
+
9/16" WRENCH
+
MEASURING TAPE
+
7/16" WRENCH OR SOCKET
+
MARKER
INSTALL INFO
TIME TO INSTALL THIS PRODUCT: 1 HOUR
Additional help is suggested for a few of the install steps.
Compatible with all FVC Rear Door Platforms.
BEFORE YOU START
Please inspect the product and packaging upon
delivery to ensure there are no issues and that
all parts and hardware are accounted for.
Contact us ASAP if anything is missing at:
support@flatlinevanco.com
0 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the UN1120B and is the answer not in the manual?

Questions and answers

Related Manuals for FVC UN1120B

Summary of Contents for FVC UN1120B

  • Page 1 INSTALL INFO TIME TO INSTALL THIS PRODUCT: 1 HOUR Additional help is suggested for a few of the install steps. Compatible with all FVC Rear Door Platforms. BEFORE YOU START Please inspect the product and packaging upon delivery to ensure there are no issues and that all parts and hardware are accounted for.

  • Page 2: Before You Start

    BEFORE YOU START All Flatline Van Co products must be properly assembled and secured before attaching to your vehicle. Improper attachment could result in an automobile accident, and could cause serious bodily injury or death to you or to others involved. You are responsible for assembling and securing Flatline Van Co products to your vehicle, checking the mounting points and attachments prior to use, and regularly inspecting the products for wear and or damage.

  • Page 3: Package Contents

    PACKAGE CONTENTS BACK PANEL FRONT PANEL SIDE PANEL BOTTOM PAN QTY: 1 QTY: 1 QTY: 2 QTY: 1 BOTTOM GASKET QTY: 2 F L AT L I N E VA N C O • S U P P O R T @ F L AT L I N EVA N C O . C O M • 8 8 8 - 6 6 7- 5 5 7 6...
  • Page 4 HARDWARE 1/4-20 X 0.75 SQUARE NECK 1/4-20 X 1 SQUARE NECK 3/8-16 X 1 FLANGED HEX 3/8 SCREW FLAT WASHER CARRIAGE BOLT CARRIAGE BOLT HEAD SCREW QTY: 4 QTY: 4 QTY: 4 QTY: 4 3/8 NYLON INSERT 1/4-20 NYLON INSERT 1/4 SCREW FLAT WASHER LOCKNUT LOCKNUT...
  • Page 5 1.2 Modify Gear Cage (Optional): If you are using a product other than the FVC Rear Door Platform, mark the back of the Rear Panel to match your available mounting points and drill out (4) 3/8” holes accordingly.
  • Page 6 TOOLS REQUIRED FOR THIS STEP: STEP | 02 GEAR CAGE ASSEMBLY 2.1 Position Back Panel to Bottom Pan: Position the Back Panel to the Bottom Pan in the orientation as shown in FIG 3 and 4. 2.2 Position Front Panel to Bottom Pan: Position the Front Panel to the Bottom Pan in the orientation shown in FIG 5+6.
  • Page 7 TOOLS REQUIRED FOR THIS STEP: STEP | 02 GEAR CAGE ASSEMBLY 2.3 Position Side Panels: Position the (2) Side Panels in the orientation as shown in FIG 7+8. F I G 7 F I G 8 F L AT L I N E VA N C O • S U P P O R T @ F L AT L I N EVA N C O . C O M • 8 8 8 - 6 6 7- 5 5 7 6...
  • Page 8 TOOLS REQUIRED FOR THIS STEP: 7/16” WRENCH OR SOCKET STEP | 02 GEAR CAGE ASSEMBLY 2.4 Secure Panels to Bottom Pan: Secure the panels to the Bottom Pan using the supplied 1/4-20 x1 Carriage Bolts, Flat Washers and Nylon Locknuts (FIG 9+10). F I G 9 F I G 10 F L AT L I N E VA N C O •...
  • Page 9 TOOLS REQUIRED FOR THIS STEP: 7/16” WRENCH OR SOCKET STEP | 02 GEAR CAGE ASSEMBLY 2.5 Secure Panels: Secure the assembly using the supplied 1/4-20 x0.75 Carriage Bolts, Flat Washers and Nylon Locknuts (FIG 11+12). F I G 11 F I G 12 F L AT L I N E VA N C O •...
  • Page 10 TOOLS REQUIRED FOR THIS STEP: STEP | 02 GEAR CAGE ASSEMBLY 2.6 Adhere Gaskets to Gear Cage (Optional): The Gear Cage Front and Rear Panels may or may not have foam gaskets pre- installed. If you are installing this in conjunction with a Storage Box or other Rear Door Accessory, you may elect to attach the included Foam Gaskets to the bottom to avoid rubbing.
  • Page 11 TOOLS REQUIRED FOR THIS STEP: RATCHET 9/16” SOCKET 9/16” WRENCH STEP | 03 GEAR CAGE INSTALL 3.1 Insert Bolts to Upper Mounting Holes: Insert (1ea) 3 ⁄ 8-16 x 1” Flanged Hex Head Screws and 3 ⁄ 8” Flat Washers to the upper mounting holes.
  • Page 12 FVC (and see) from you! Head to the products and following along and we will make it right. FVC is product page and click “Leave a company of van and outdoor with your adventures. Tag us Review.”...
