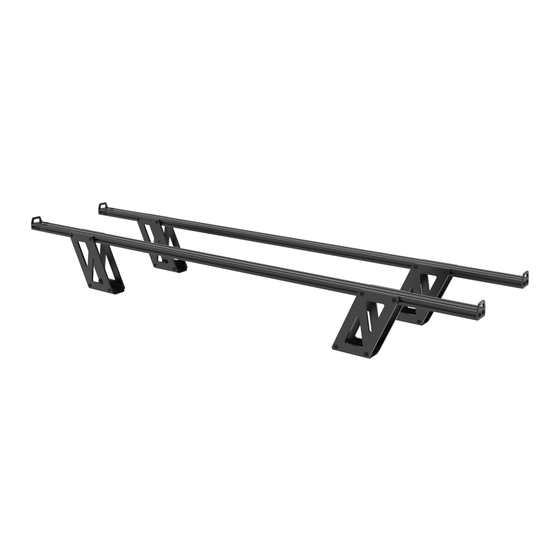

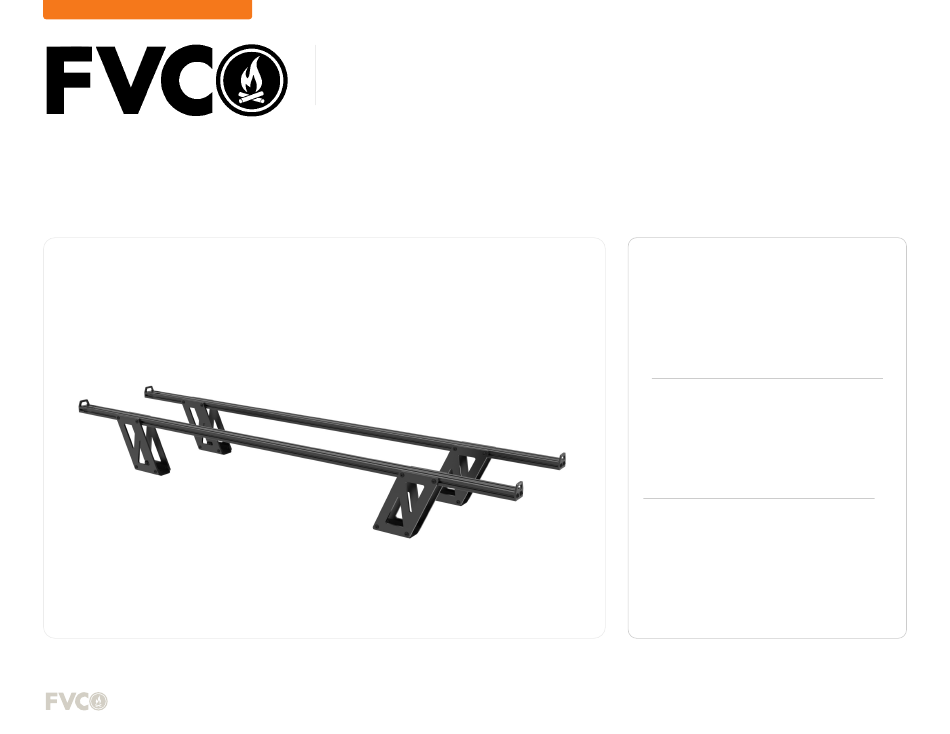

H IGH BA R K IT - HE AVY D U TY W I T H D ECKI NG PANEL ADAPTERS
UN1 11 5B
INSTALLATION
GUIDE
F L AT L I N E VA N C O • S U P P O R T @ F L AT L I N EVA N C O . C O M • 8 8 8 - 6 6 7- 5 5 7 6
TOOLS REQUIRED
(NOT INCLUDED)
+
5/32" ALLEN WRENCH
+
9/16" WRENCH OR SOCKET
INSTALL INFO
TIME TO INSTALL THIS PRODUCT: 30 MINUTES
Additional help is suggested for a few of the install
steps.
BEFORE YOU START
Please inspect the product and packaging upon
delivery to ensure there are no issues and that all
parts and hardware are accounted for.
Contact us ASAP if anything is missing at:
support@flatlinevanco.com
0 1
Advertisement
Related Manuals for FVC UN1115B
Summary of Contents for FVC UN1115B
- Page 1 INSTALLATION GUIDE H IGH BA R K IT - HE AVY D U TY W I T H D ECKI NG PANEL ADAPTERS UN1 11 5B TOOLS REQUIRED (NOT INCLUDED) 5/32” ALLEN WRENCH 9/16” WRENCH OR SOCKET INSTALL INFO TIME TO INSTALL THIS PRODUCT: 30 MINUTES Additional help is suggested for a few of the install steps.
- Page 2 BEFORE YOU START All Flatline Van Co products must be properly assembled and secured before attaching to your vehicle. Improper attachment could result in an automobile accident, and could cause serious bodily injury or death to you or to others involved. You are responsible for assembling and securing Flatline Van Co products to your vehicle, checking the mounting points and attachments prior to use, and regularly inspecting the products for wear and or damage.
- Page 3 PACKAGE CONTENTS DECKING PANEL ADAPTERS QTY: 4 HEAVY DUTY HIGH END CAP CROSSBAR BAR RISER QTY: 8 QTY: 4 QTY: 2 F L AT L I N E VA N C O • S U P P O R T @ F L AT L I N EVA N C O . C O M • 8 8 8 - 6 6 7- 5 5 7 6...
- Page 4 HARDWARE 1/4-20 X 0.75 FLANGED 3/8-16 X 1 HEX HEAD SCREW 0.375 X 1 OVERSIZED FLAT BUTTON HEAD HEX DRIVE 1/4 FLAT WASHER WASHER SCREW QTY: 4 QTY: 24 QTY: 8 QTY: 16 1/4-20 X 0.5 BUTTON HEAD 1/4-20 ECONOMY T-NUT 3/8-16 NYLON LOCKNUT 1/4-20 NYLON LOCKNUT HEX DRIVE SCREW...
- Page 5 These Adapters are designed to make our Heavy Duty High Bars able to be installed to FVC Roof Racks that feature the use of Decking Panels. NOTE - The Adapters only work with the Heavy Duty High Bars in “High Mode.”...
- Page 6 TOOLS REQUIRED FOR THIS STEP: 5/32” ALLEN WRENCH STEP | 02 HIGH BAR ASSEMBLY 2.1 Attach End Caps to Crossbars: Find the Crossbar End Caps and attach to your Crossbar using (2ea) 1/4-20 x 0.75 Flanged Button Head Hex Drive Screws and Loctite (FIG 2-3). F I G 2 F I G 3 F L AT L I N E VA N C O •...
- Page 7 5/32” ALLEN WRENCH TOOLS REQUIRED FOR THIS STEP: STEP | 02 HIGH BAR ASSEMBLY 2.2 Insert T-Nuts: Slide (2) 1/4-20 T-Nuts into the cutouts of the Crossbar (FIG 4). NOTE- Make sure that the raised edge of the T-Nut goes in first and that the flat edge is in the position to receive hardware.
- Page 8 9/16” WRENCH OR SOCKET TOOLS REQUIRED FOR THIS STEP: STEP | 03 DECKING ADAPTER INSTALL 3.1 Install Decking Adapters: Position Decking Adapters in your desired location and loosely attach using 3/8-16 x 1 Hex Head Screws, Flat Washers and Nylon Locknuts. F I G 6 F I G 7 F L AT L I N E VA N C O •...
- Page 9 5/32” ALLEN WRENCH TOOLS REQUIRED FOR THIS STEP: 3/8” WRENCH OR SOCKET STEP | 04 HIGH BAR INSTALL 4.1 Attach High Bar to Crossbar: Take the assembled High Bar and position it against the surface of the Decking Adapter. Attach using 1/4-20 x 0.75 Flanged Button Head Hex Drive Screws, Flat Washers and Nylon Locknuts (FIG 8).
- Page 10 FVC (and see) from you! Head to the products and following along and we will make it right. FVC is product page and click “Leave a company of van and outdoor with your adventures. Tag us Review.”...
