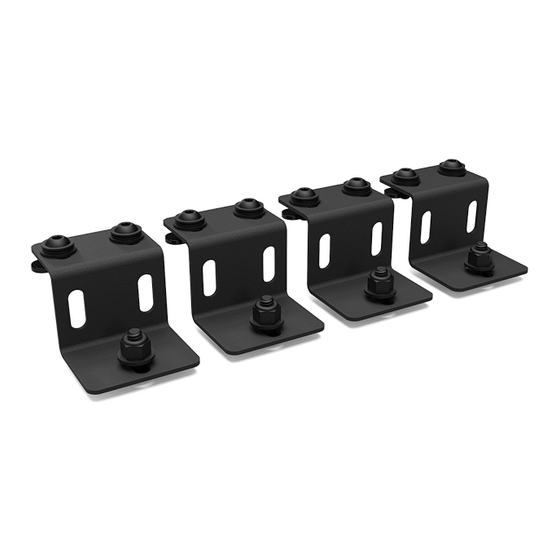

UNI VE RS AL S O L AR PANE L M OUN T I NG BRACKETS
UN0 10 8B
INSTALLATION
GUIDE
F L AT L I N E VA N C O • S U P P O R T @ F L AT L I N EVA N C O . C O M • 8 8 8 - 6 6 7- 5 5 7 6
TOOLS REQUIRED
(NOT INCLUDED)
+
3/16" ALLEN WRENCH
+
7/16" WRENCH OR SOCKET
INSTALL INFO
TIME TO INSTALL THIS PRODUCT: 30 MINUTES
Additional help is suggested for a few of the install
steps.
BEFORE YOU START
Please inspect the product and packaging upon
delivery to ensure there are no issues and that all
parts and hardware are accounted for.
Contact us ASAP if anything is missing at:
support@flatlinevanco.com
0 1
Advertisement
Related Manuals for FVC UN0108B
Summary of Contents for FVC UN0108B
- Page 1 INSTALLATION GUIDE UNI VE RS AL S O L AR PANE L M OUN T I NG BRACKETS UN0 10 8B TOOLS REQUIRED (NOT INCLUDED) 3/16” ALLEN WRENCH 7/16” WRENCH OR SOCKET INSTALL INFO TIME TO INSTALL THIS PRODUCT: 30 MINUTES Additional help is suggested for a few of the install steps.
-
Page 2: Before You Start
BEFORE YOU START All Flatline Van Co products must be properly assembled and secured before attaching to your vehicle. Improper attachment could result in an automobile accident, and could cause serious bodily injury or death to you or to others involved. You are responsible for assembling and securing Flatline Van Co products to your vehicle, checking the mounting points and attachments prior to use, and regularly inspecting the products for wear and or damage. -
Page 3: Package Contents
PACKAGE CONTENTS SOLAR PANEL MOUNTING BRACKETS QTY: 4 F L AT L I N E VA N C O • S U P P O R T @ F L AT L I N EVA N C O . C O M • 8 8 8 - 6 6 7- 5 5 7 6... - Page 4 HARDWARE 1/4-20 X 0.75 FLANGED 1/4-20 X 0.5 FLANGED 1/4 SCREW BELLEVILLE BUTTON HEAD HEX DRIVE BUTTON HEAD HEX DRIVE SPRING LOCK WASHER SCREW SCREW QTY: 4 QTY: 8 QTY: 8 1/4-20 ECONOMY 1/4-20 NYLON INSERT 1/4 SCREW FLAT WASHER T-NUT LOCKNUT QTY: 16...
- Page 5 1.1 Choosing Mounting Style: Our Solar Panel Mounting Brackets are designed to allow you to mount your solar panels to your FVC Roof Rack or any other roof rack that features 80/20 style extrusion crossbars. Consider the needs of your install and choose a mounting style that best suits your application.
- Page 6 3/16” ALLEN WRENCH TOOLS REQUIRED FOR THIS STEP: 7/16” WRENCH OR SOCKET STEP | 02A FLUSH MOUNT INSTALL 2.1a Flush-Mount: This is the most common option. Install the brackets in the T-Slots on the top of the Crossbars. Solar panels need to be 1.5” tall to be flush-mounted. 1.500 1.575 1.280...
- Page 7 3/16” ALLEN WRENCH TOOLS REQUIRED FOR THIS STEP: 7/16” WRENCH OR SOCKET STEP | 02B BOTTOM MOUNT INSTALL 2.1b Bottom-Mount: This allows you to use the Crossbar for other purposes and have solar panels installed. Install the brackets in the T-Slots on the bottom of the Crossbars. 1.500 1.575 1.280...
- Page 8 3/16” ALLEN WRENCH TOOLS REQUIRED FOR THIS STEP: 7/16” WRENCH OR SOCKET STEP | 02C RAISED MOUNT INSTALL 2.1c Raised-Mount: This allows you to mount the panels in any orientation. Flip the bracket over and install in the T-Slots on the top of the Crossbars. 1.500 1.575 1.280...
- Page 9 3/16” ALLEN WRENCH TOOLS REQUIRED FOR THIS STEP: 7/16” WRENCH OR SOCKET STEP | 02D SIDE MOUNT INSTALL 2.1d Side-Mount: This works on solar panels taller than 1.5” and can be useful if you are unable to access the bottom of the Crossbar for mounting hardware.
- Page 10 FVC (and see) from you! Head to the products and following along and we will make it right. FVC is product page and click “Leave a company of van and outdoor with your adventures. Tag us Review.”...
