- Page 1 Installation Guide Pull Out Tray UN3005B FLATLINE VAN CO • SUPPORT@FLATLINEVANCO.COM • 888-667-5576...
- Page 2 All Flatline Van Co products must be properly assembled and secured before attaching to your vehicle. Improper attachment could result in an automobile accident, and could cause serious bodily injury or death to you or to others involved. You are responsible for assembling and securing Flatline Van Co products to your vehicle, checking the mounting points and attachments prior to use, and regularly inspecting the products for wear and or damage.
- Page 3 THANK YOU! ARE YOU EXCITED ABOUT YOUR NEW PULL OUT TRAY? HERE ARE A FEW THINGS TO TOOLS DO BEFORE BEGINNING THE INSTALLATION PROCESS-- • PLEASE INSPECT THE PRODUCT TO ENSURE THERE WAS NO DAMAGE INCURRED DURING SHIPPING. • IF THERE IS DAMAGE TO REPORT, PLEASE CONTACT OUR CUSTOMER SERVICE DEPARTMENT AS SOON AS POSSIBLE.

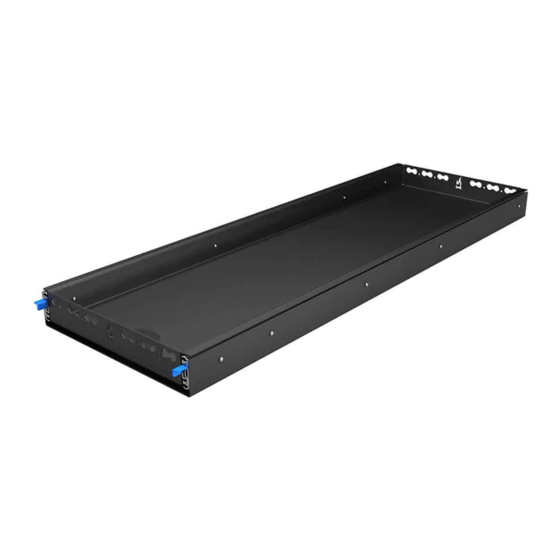

- Page 4 PACKAGE CONTENTS PULL OUT TRAY QTY - 1 FLATLINE VAN CO • SUPPORT@FLATLINEVANCO.COM • 888-667-5576...
- Page 5 LET’S GET STARTED! OUR RECOMMENDED INSTALL METHOD TO ENSURE YOU CAN SAFELY LOAD THE MAXIMUM CAPACITY REQUIRES DRILLING ALL THE WAY THROUGH YOUR FLOOR TO THE BOTTOM OF THE VAN AND THROUGH BOLTING (3/8 BOLT, WASHER, THROUGH PULL OUT TRAY AND FLOOR, LARGE FENDER WASHER, NYLOCK NUT) THIS METHOD REQUIRES MAPPING OUT YOUR INSTALL LOCATION AND ENSURING YOU ARE DRILLING IN A SAFE PLACE THAT WON’T PENETRATE WIRES/BRAKE LINES/FUEL TANKS/ETC.
- Page 6 THERE ARE A NUMBER OF MOUNT HOLE LOCATIONS LASER CUT INTO THE MOUNT BASE. WE RECOMMEND A MINIMUM OF 6 FASTENERS TO SECURE THE PULL OUT TRAY. NOTE- THE MOST SECURE METHOD TO FASTEN WOULD BE TO PLACE A FASTENER IN EACH CORNER AND TWO IN THE CENTER LOCATIONS. DOUBLE CHECK ALL OF YOUR MEASUREMENTS AND FITMENT AND ENSURE THAT THERE WILL BE NO OBSTRUCTIONS DURING OPERATION OF THE PULL OUT TRAY.
- Page 7 SERVICE & MAINTENANCE IF THE SLIDE MOUNT SCREWS ON YOUR PULLOUT TRAY COME LOOSE; SLIDE THE TRAY OUT TO EXPOSE THE SCREWS FROM THE INSIDE. YOU MAY NEED TO MOVE THE INNER SLIDE MECHANISM AROUND TO GET THE ACCESS WINDOW TO LINE UP WITH EACH SCREW. NOTE- EVERY MOUNT SCREW IS ACCESSIBLE FROM THE INSIDE BY MOVING THE INNER SLIDE MECHANISM BACK AND FORTH.
- Page 8 CUSTOMER SUPPORT If you are having any issues with your product, please reach out, and we will make it right. FVC is a company of van and outdoor enthusiasts that design and use our own products, so we want you to be as stoked on your new parts as we are! @flatlinevanco...
