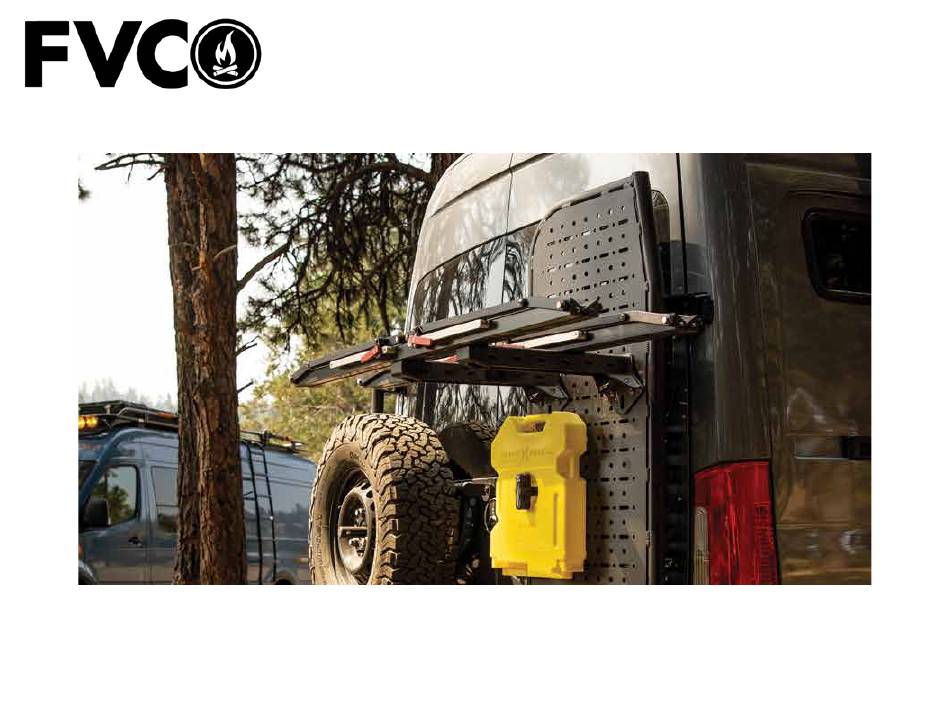

- Page 1 Installation Guide Rear Platform Mounting Posts UN0107B FLATLINE VAN CO • SUPPORT@FLATLINEVANCO.COM • 888-667-5576...
- Page 2 All Flatline Van Co products must be properly assembled and secured before attaching to your vehicle. Improper attachment could result in an automobile accident, and could cause serious bodily injury or death to you or to others involved. You are responsible for assembling and securing Flatline Van Co products to your vehicle, checking the mounting points and attachments prior to use, and regularly inspecting the products for wear and or damage.
- Page 3 THANK YOU! ARE YOU EXCITED ABOUT YOUR NEW REAR PLATFORM MOUNTING POSTS? HERE ARE TOOLS A FEW THINGS TO DO BEFORE BEGINNING THE INSTALLATION PROCESS-- • PLEASE INSPECT THE PRODUCT TO ENSURE THERE WAS NO DAMAGE INCURRED DURING SHIPPING. • IF THERE IS DAMAGE TO REPORT, PLEASE CONTACT OUR CUSTOMER SERVICE DEPARTMENT AS SOON AS POSSIBLE.
- Page 4 PACKAGE CONTENTS MOUNTING POST QTY - 2 FLATLINE VAN CO • SUPPORT@FLATLINEVANCO.COM • 888-667-5576...
- Page 5 HARDWARE 3/8-16 FLANGED NYLON 3/8-16 X 1 FLANGED HEX 3/8 SCREW FLAT WASHER INSERT LOCKNUT HEAD SCREW QTY - 8 QTY - 8 QTY - 8 FLATLINE VAN CO • SUPPORT@FLATLINEVANCO.COM • 888-667-5576...
- Page 6 LET’S GET STARTED! THE LOCATION FOR MOUNTING WILL BE DETERMINED BY WHICH ACCESSORIES YOU ARE USING WITH YOUR REAR PLATFORM MOUNTING POSTS AND WHAT LAYOUT YOU DECIDE TO RUN. IN THIS GUIDE WE WILL PROVIDE YOU HELPFUL DIMENSIONAL INFORMATION, AS WELL AS RECOMMENDED INSTALL ORIENTATION BASED ON USE CASE ETC.
- Page 7 ONCE YOU’VE DETERMINED THE APPROPRIATE MOUNTING LOCATIONS, ATTACH THE MOUNT POSTS TO YOUR REAR PLATFORM USING THE SUPPLIED 3/8-16 X 1 FLANGED HEX HEAD SCREWS, 3/8 FLAT WASHERS, AND 3/8-16 FLANGED NYLON INSERT LOCKNUTS AS SHOWN IN THE FIGURE TO THE RIGHT.
- Page 8 CUSTOMER SUPPORT If you are having any issues with your product, please reach out, and we will make it right. FVC is a company of van and outdoor enthusiasts that design and use our own products, so we want you to be as stoked on your new parts as we are! @flatlinevanco...
