TIR E CAR R IE R R OTOPAX AD APT E R M OU N T
UN0 11 7B
INSTALLATION
GUIDE
F L AT L I N E VA N C O • S U P P O R T @ F L AT L I N EVA N C O . C O M • 8 8 8 - 6 6 7- 5 5 7 6
TOOLS REQUIRED
(NOT INCLUDED)
+
3/16" ALLEN WRENCH
+
7/16" SOCKET OR WRENCH
INSTALL INFO
TIME TO INSTALL THIS PRODUCT: 30 MINUTES
Additional help is suggested for a few of the install
steps.
BEFORE YOU START
Please inspect the product and packaging upon
delivery to ensure there are no issues and that all
parts and hardware are accounted for.
Contact us ASAP if anything is missing at:
support@flatlinevanco.com
0 1
Advertisement
Related Manuals for FVC UN0117B
Summary of Contents for FVC UN0117B
- Page 1 INSTALLATION GUIDE TIR E CAR R IE R R OTOPAX AD APT E R M OU N T UN0 11 7B TOOLS REQUIRED (NOT INCLUDED) 3/16” ALLEN WRENCH 7/16” SOCKET OR WRENCH INSTALL INFO TIME TO INSTALL THIS PRODUCT: 30 MINUTES Additional help is suggested for a few of the install steps.
-
Page 2: Before You Start
BEFORE YOU START All Flatline Van Co products must be properly assembled and secured before attaching to your vehicle. Improper attachment could result in an automobile accident, and could cause serious bodily injury or death to you or to others involved. You are responsible for assembling and securing Flatline Van Co products to your vehicle, checking the mounting points and attachments prior to use, and regularly inspecting the products for wear and or damage. -
Page 3: Package Contents

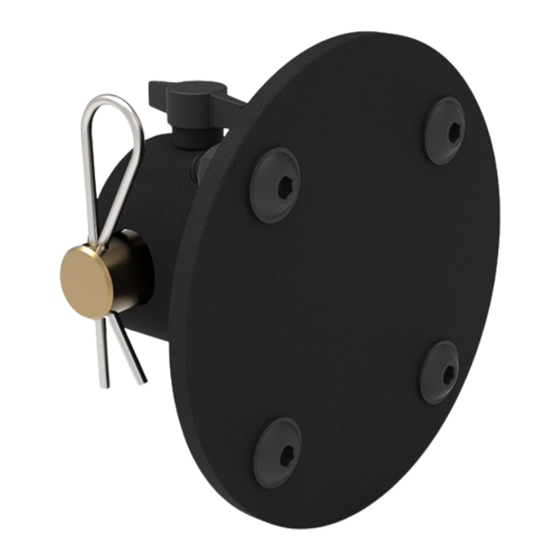

PACKAGE CONTENTS ROTOPAX MOUNT ADAPTER QTY: 1 F L AT L I N E VA N C O • S U P P O R T @ F L AT L I N EVA N C O . C O M • 8 8 8 - 6 6 7- 5 5 7 6... - Page 4 HARDWARE 1/4-20 X 0.75 1/4” SCREW FLAT 1/4-20 NYLON FLANGED HEX WASHER LOCKNUT HEAD SCREW QTY: 4 QTY: 4 QTY: 4 1/4-20 PLASTIC HEAD THUMB CLEVIS PIN COTTER PIN SCREW QTY: 1 QTY: 1 QTY: 1 F L AT L I N E VA N C O • S U P P O R T @ F L AT L I N EVA N C O . C O M • 8 8 8 - 6 6 7- 5 5 7 6...
- Page 5 7/16” SOCKET OR WRENCH TOOLS REQUIRED FOR THIS STEP: STEP | 01 LAYOUT AND INSTALL PREP 1.1 Determine Depth of Lock Rod: You may need to adjust the depth of the Lock Rod to accomodate clearance of the install of your new Rotopax Mount Adapter (FIG 1).
- Page 6 TOOLS REQUIRED FOR THIS STEP: STEP | 02 INSTALL ROTOPAX ADAPTER 2.1 Position Rotopax Adapter on Tire Carrier: Set the Adapter Mount onto the Lock Rod of your Rear Tire Carrier (FIG 3). 2.2 Pin Rotopax Adapter to Carrier: Use the Clevis and Cotter Pins to keep the Adapter Mount in place (FIG 4+5).
- Page 7 TOOLS REQUIRED FOR THIS STEP: 3/16” ALLEN WRENCH 7/16” SOCKET OR WRENCH STEP | 03 INSTALL ROTOPAX MOUNT 3.1 Attach Rotopax to Adapter Mount: Attach the Rotopax Mount to the Adapter Mount using the supplied 1/4-20 x 0.75 Flanged Button Head Screws, Flat Washers and Nylon Locknuts (FIG 7+8).
- Page 8 FVC (and see) from you! Head to the products and following along and we will make it right. FVC is product page and click “Leave a company of van and outdoor with your adventures. Tag us Review.”...
