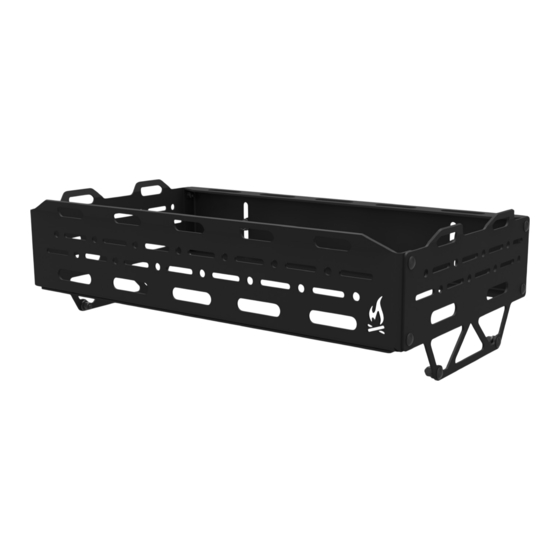

RE AR STO R AGE B OX TOP PE R
UN1 12 1B
INSTALLATION
GUIDE
F L AT L I N E VA N C O • S U P P O R T @ F L AT L I N EVA N C O . C O M • 8 8 8 - 6 6 7- 5 5 7 6
TOOLS REQUIRED
(NOT INCLUDED)
+
9/16" WRENCH
+
RATCHET
+
7/16" WRENCH OR SOCKET
+
MEASURING TAPE
+
POWER DRILL
+
MARKER
+
9/32" DRILL BIT
+
9/16" SOCKET
INSTALL INFO
TIME TO INSTALL THIS PRODUCT: 1 HOUR
Additional help is suggested for a few of the install steps.
Compatible with all FVC Rear Door Platforms.
BEFORE YOU START
Please inspect the product and packaging upon
delivery to ensure there are no issues and that
all parts and hardware are accounted for.
Contact us ASAP if anything is missing at:
support@flatlinevanco.com
0 1
Advertisement
Related Manuals for FVC UN1121B
Summary of Contents for FVC UN1121B
- Page 1 INSTALL INFO TIME TO INSTALL THIS PRODUCT: 1 HOUR Additional help is suggested for a few of the install steps. Compatible with all FVC Rear Door Platforms. BEFORE YOU START Please inspect the product and packaging upon delivery to ensure there are no issues and that all parts and hardware are accounted for.
- Page 2 BEFORE YOU START All Flatline Van Co products must be properly assembled and secured before attaching to your vehicle. Improper attachment could result in an automobile accident, and could cause serious bodily injury or death to you or to others involved. You are responsible for assembling and securing Flatline Van Co products to your vehicle, checking the mounting points and attachments prior to use, and regularly inspecting the products for wear and or damage.
- Page 3 PACKAGE CONTENTS BACK PANEL FRONT PANEL SIDE PANEL BOTTOM GASKET QTY: 1 QTY: 1 QTY: 2 QTY: 2 F L AT L I N E VA N C O • S U P P O R T @ F L AT L I N EVA N C O . C O M • 8 8 8 - 6 6 7- 5 5 7 6...
- Page 4 HARDWARE 1/4-20 X 0.75 SQUARE NECK 3/8-16 X 1 FLANGED HEX 1/4 SCREW BONDED 3/8 SCREW FLAT WASHER CARRIAGE BOLT HEAD SCREW SEALING WASHER QTY: 12 QTY: 2 QTY: 2 QTY: 4 3/8 NYLON INSERT 1/4-20 NYLON INSERT 1/4 SCREW FLAT WASHER LOCKNUT LOCKNUT QTY: 2...
- Page 5 STORAGE BOX The Rear Storage Box Topper is designed to be designed to be installed on the FVC Rear Storage Box or Rear Storage Box - Small (FIG 1+2). PRO-TIP: A table or stand of an appropriate height can be very helpful during this install.
- Page 6 TOOLS REQUIRED FOR THIS STEP: STEP | 02 BOX TOPPER ASSEMBLY 2.1 Position Side Panels to Rear Panel: Position the Side Panels to the Rear Panel in the orientation as shown in FIG 3 and 4. F I G 3 F I G 4 F L AT L I N E VA N C O •...
- Page 7 TOOLS REQUIRED FOR THIS STEP: 7/16” WRENCH OR SOCKET STEP | 02 BOX TOPPER ASSEMBLY 2.2 Secure Panels: Secure the panels using the supplied 1/4- 20 x0.75 Carriage Bolts, Flat Washers and Nylon Locknuts (FIG 5+6). F I G 5 F I G 6 F L AT L I N E VA N C O •...
- Page 8 TOOLS REQUIRED FOR THIS STEP: 7/16” WRENCH OR SOCKET STEP | 02 BOX TOPPER ASSEMBLY 2.3 Attach Front Panel: Repeat previous step for the Front Panel (FIG 7). 2.4 Attach Foam Gaskets: The Rear Storage Box Topper Panels may or may not have foam gaskets pre-installed. Attach the included Foam Gaskets to the bottom of the Front and Rear Panels to avoid rubbing (FIG 8).
- Page 9 TOOLS REQUIRED FOR THIS STEP: MARKER POWER DRILL 9/32” DRILL BIT STEP | 03 BOX TOPPER INSTALL 3.1 Position Rear Storage Box Topper: Set the assembled Rear Storage Box Topper on top of your Rear Storage Box and position it up tight against the Rear Door Platform. 3.2 Mark Holes for Drilling: Mark through the squared holes of the Storage Box Topper for drilling.
- Page 10 TOOLS REQUIRED FOR THIS STEP: RATCHET 9/16” SOCKET 9/16” WRENCH STEP | 03 BOX TOPPER INSTALL 3.5 Position Box Topper to Platform: With help, lift and align top holes with hardware to the desired install location. NOTE - Bolting the Rear Storage Box Topper directly to the Rear Door Platform is optional, but can be done to prevent rattling.
- Page 11 TOOLS REQUIRED FOR THIS STEP: RATCHET 7/16” SOCKET 7/16” WRENCH STEP | 03 GEAR CAGE INSTALL 3.7 Lower Mounting Holes: Insert (1ea) 1/4-20x0.75 Carriage Bolts through the lower mounting holes (FIG 13). 3.8 Secure Lower Mounting Holes: Open the Storage Box and secure using a 1/4”...
- Page 12 FVC (and see) from you! Head to the products and following along and we will make it right. FVC is product page and click “Leave a company of van and outdoor with your adventures. Tag us Review.”...
