AD VENT UR E VAN PU LL-OUT T R AY
UN3 00 5B
INSTALLATION
GUIDE
F L AT L I N E VA N C O • S U P P O R T @ F L AT L I N EVA N C O . C O M • 8 8 8 - 6 6 7- 5 5 7 6
TOOLS REQUIRED
(NOT INCLUDED)
+
POWER DRILL
+
MEASURING TAPE
+
MARKER
+
PHILLIPS SCREWDRIVER
INSTALL INFO
TIME TO INSTALL THIS PRODUCT: 1 HOUR
Additional help is suggested for a few of the install steps.
Compatible with all FVC Rear Door Platforms.
BEFORE YOU START
Please inspect the product and packaging upon
delivery to ensure there are no issues and that
all parts and hardware are accounted for.
Contact us ASAP if anything is missing at:
support@flatlinevanco.com
0 1
Advertisement
Related Manuals for FVC UN3005B
Summary of Contents for FVC UN3005B
- Page 1 INSTALL INFO TIME TO INSTALL THIS PRODUCT: 1 HOUR Additional help is suggested for a few of the install steps. Compatible with all FVC Rear Door Platforms. BEFORE YOU START Please inspect the product and packaging upon delivery to ensure there are no issues and that all parts and hardware are accounted for.
-
Page 2: Before You Start
BEFORE YOU START All Flatline Van Co products must be properly assembled and secured before attaching to your vehicle. Improper attachment could result in an automobile accident, and could cause serious bodily injury or death to you or to others involved. You are responsible for assembling and securing Flatline Van Co products to your vehicle, checking the mounting points and attachments prior to use, and regularly inspecting the products for wear and or damage. -
Page 3: Package Contents

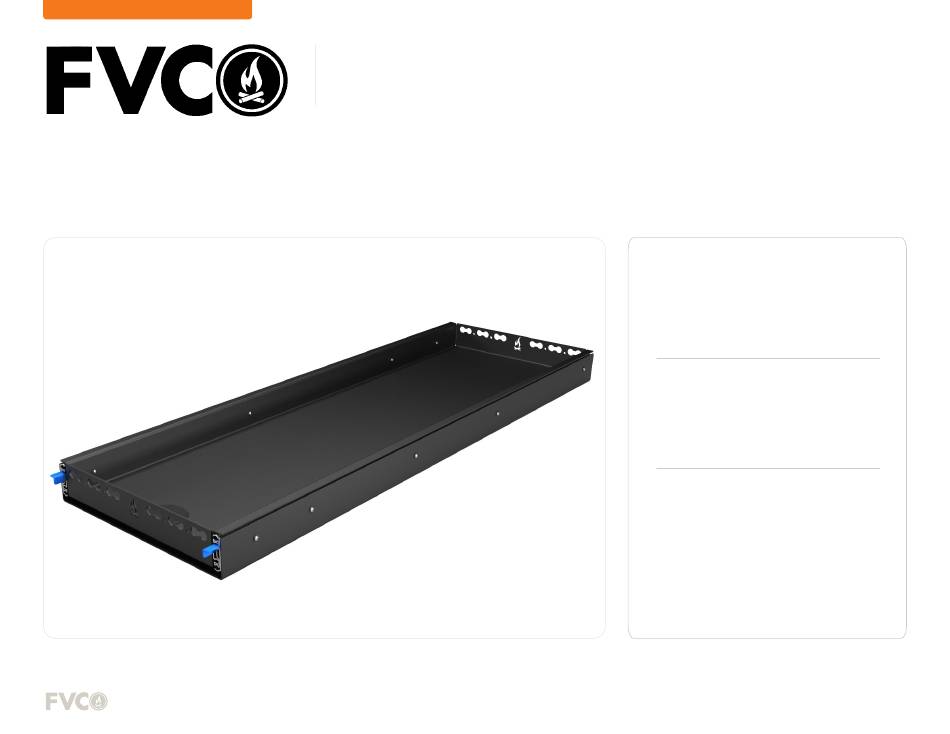

PACKAGE CONTENTS PULL OUT TRAY QTY: 1 F L AT L I N E VA N C O • S U P P O R T @ F L AT L I N EVA N C O . C O M • 8 8 8 - 6 6 7- 5 5 7 6... - Page 4 INSTALL TOOLS REQUIRED FOR THIS STEP: MARKER MEASURING TAPE STEP | 01 LAYOUT AND INSTALL PREP 1.1 Choose Mounting Location: Dry fit the Pull Out Tray inside your van and choose the location that best suits your needs. NOTE - Check to ensure there is enough clearance to close the Rear Doors without contacting the Drawer Release Levers if mounting in the back of the van (the most common location).
- Page 5 POWER DRILL TOOLS REQUIRED FOR THIS STEP: STEP | 02 INSTALL PULL OUT TRAY 2.1 Recommended Install for Maximum Load Capacity: Drill completely through your van floor (FIG 3) and through-bolt using a 3/8” Bolt, Washer, Large Fender Washer and Nylon Locknut (FIG 4).
- Page 6 PHILLIPS SCREWDRIVER TOOLS REQUIRED FOR THIS STEP: STEP | 03 SERVICE AND MAINTENANCE 3.1 Tightening Slide Mount Screws: If the slide mount screws on your Pull Out Tray come loose; slide the tray out to expose the screws from the inside. You may need to move the inner slide mechanism around to get the Access Window (FIG 5) to line up with each screw.
- Page 7 FVC (and see) from you! Head to the products and following along and we will make it right. FVC is product page and click “Leave a company of van and outdoor with your adventures. Tag us Review.”...
