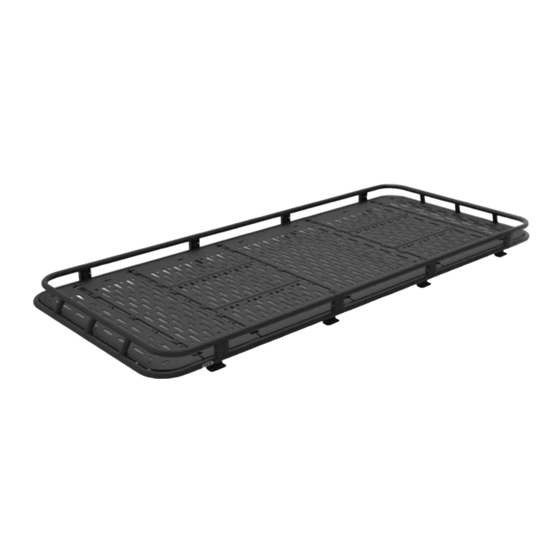

- Page 1 Installation Guide Safari Rack 170 SP0105B FLATLINE VAN CO • SUPPORT@FLATLINEVANCO.COM • 888-667-5576...
- Page 2 All Flatline Van Co products must be properly assembled and secured before attaching to your vehicle. Improper attachment could result in an automobile accident, and could cause serious bodily injury or death to you or to others involved. You are responsible for assembling and securing flatline van co products to your vehicle, checking the mounting points and attachments prior to use, and regularly inspecting the products for wear and or damage.
- Page 3 THANK YOU! ARE YOU EXCITED ABOUT YOUR NEW SAFARI RACK 170? HERE ARE A FEW THINGS TO TOOLS DO BEFORE BEGINNING THE INSTALLATION PROCESS-- • PLEASE INSPECT THE PRODUCT TO ENSURE THERE WAS NO DAMAGE INCURRED DURING SHIPPING. • IF THERE IS DAMAGE TO REPORT, PLEASE CONTACT OUR CUSTOMER SERVICE DEPARTMENT AS SOON AS POSSIBLE.
-
Page 4: Package Contents
PACKAGE CONTENTS F45 MOUNT BRACKET SAFARI RACK RAIL FOOT MOUNT FAN TRIM RING RAIL NUT QTY-3 QTY-1 QTY-10 QTY-1 QTY-20 3/8 SPLIT LOCK WASHER 3/8-16 NYLOCK 3/8-16 HEX BOLT 3/8 FLAT WASHER 3/8-16 BUTTON HEAD SCREW QTY-20 QTY-26 QTY-20 QTY-52 QTY-26 INSTALLATION GUIDE STICKER PACK... -
Page 5: Let's Get Started
LET’S GET STARTED! RAIL NUT SLIDE HALF OF THE RAIL NUTS INTO THE PASSENGER SIDE FACTORY ROOF RAIL, AND HALF OF THEM INTO THE DRIVER SIDE RAIL. NOTE- IF YOU’RE INSTALLING A SIDE LADDER, PUT TWO EXTRA IN ON THE DRIVER SIDE. NOW, GO OVER TO YOUR SAFARI RACK, GRAB ALL OF THE RAIL FOOT MOUNTS AND START LOOSELY BOLTING THEM TO THE SAFARI RACK USING THE 3/8 BUTTON HEAD, 3/8 FLAT WASHER (X2), AND 3/8 NYLOCK... - Page 6 WE RECOMMEND MOUNTING THE TRIM RING TO THE RACK BEFORE PUTTING IT ON YOUR VAN. YOU’LL NEED TO DRILL YOUR OWN HOLES TO MOUNT IT. WE 18.25” DO THIS BECAUSE THERE IS SOME VARIANCE IN FAN PLACEMENT. YOU CAN USE BOLTS WITH NUTS, OR SELF TAPPING SCREWS, WE LEAVE THAT UP TO YOU! 25.5”...
- Page 7 THE NEXT STEP IS TO STRAP UP THE RACK AND LIFT IT UP INTO PLACE. AS PREVIOUSLY MENTIONED, IT’S BEST TO HAVE A PROFESSIONAL DO THIS. ONCE THE RACK IS IN PLACE, TIGHTEN THE FEET DOWN TO YOUR ROOF RAILS USING THE 3/8-16 HEX BOLTS AND SPLIT LOCK WASHERS. NOTE- THE FRONT FEET SIT AS FAR FORWARD ON THE ROOF RAILS AS POSSIBLE.
- Page 8 IF YOU’RE INSTALLING A FIAMMA F45 AWNING, ATTACH THE PROVIDED BRACKETS TO THE RACK USING THE PROVIDED HARDWARE. FLATLINE VAN CO • SUPPORT@FLATLINEVANCO.COM • 888-667-5576...
- Page 9 CUSTOMER SUPPORT If you are having any issues with your product, please reach out, and we will make it right. FVC is a company of van and outdoor enthusiasts that design and use our own products, so we want you to be as stoked on your new parts as we are! @flatlinevanco...
