S PRI NTER VAN WINCH FAI RL E AD
UN1 11 0B
INSTALLATION
GUIDE
F L AT L I N E VA N C O • S U P P O R T @ F L AT L I N EVA N C O . C O M • 8 8 8 - 6 6 7- 5 5 7 6
TOOLS REQUIRED
(NOT INCLUDED)
+
5/32" ALLEN WRENCH
+
3/4" WRENCH OR SOCKET
+
7/16" WRENCH OR SOCKET
+
SNAP RING PLIERS
INSTALL INFO
TIME TO INSTALL THIS PRODUCT: 30-45 MINUTES
Additional help is suggested for a few of the install steps.
Compatible with all FVC Rear Door Platforms.
BEFORE YOU START
Please inspect the product and packaging upon
delivery to ensure there are no issues and that
all parts and hardware are accounted for.
Contact us ASAP if anything is missing at:
support@flatlinevanco.com
0 1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for FVC UN1110B
Summary of Contents for FVC UN1110B
- Page 1 INSTALL INFO TIME TO INSTALL THIS PRODUCT: 30-45 MINUTES Additional help is suggested for a few of the install steps. Compatible with all FVC Rear Door Platforms. BEFORE YOU START Please inspect the product and packaging upon delivery to ensure there are no issues and that all parts and hardware are accounted for.
-
Page 2: Before You Start
BEFORE YOU START All Flatline Van Co products must be properly assembled and secured before attaching to your vehicle. Improper attachment could result in an automobile accident, and could cause serious bodily injury or death to you or to others involved. You are responsible for assembling and securing Flatline Van Co products to your vehicle, checking the mounting points and attachments prior to use, and regularly inspecting the products for wear and or damage. -
Page 3: Package Contents

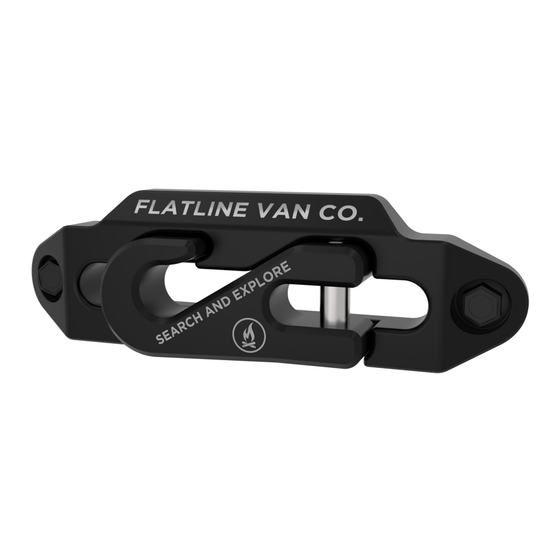

PACKAGE CONTENTS WINCH FAIRLEAD FAIRLEAD HOOK FAIRLEAD HOOK PIN QTY: 1 QTY: 1 QTY: 1 F L AT L I N E VA N C O • S U P P O R T @ F L AT L I N EVA N C O . C O M • 8 8 8 - 6 6 7- 5 5 7 6... - Page 4 HARDWARE 1/2-13 X 1.25 FLANGED HEX 1/2-13 NYLON LOCKNUT 1/2” FLAT WASHER 0.625 RETAINING RING HEAD SCREW QTY: 2 QTY: 2 QTY: 2 QTY: 1 F L AT L I N E VA N C O • S U P P O R T @ F L AT L I N EVA N C O . C O M • 8 8 8 - 6 6 7- 5 5 7 6...
- Page 5 TOOLS REQUIRED FOR THIS STEP: 5/32” ALLEN WRENCH 3/4” WRENCH OR SOCKET STEP | 01 WINCH FAIRLEAD INSTALL 1.1 Install Winch Fairlead: Remove the 1/4-20” Button Head Screws that hold the plate covering the Winch Fairlead Mounting Holes (FIG 1) and install Fairlead using (2) 1/2- 13 x 1.25 Flanged Hex Head Bolts, Flat Washers and Nylon COVER PLATE Locknuts as shown in FIG 2+3.
- Page 6 INSTALL TOOLS REQUIRED FOR THIS STEP: SNAP RING PLIERS STEP | 02 INSTALL WINCH ROPE TO HOOK 2.1 Install Winch Rope to Hook: Install the Hook to the Winch Rope by installing the stainless steel Pin and Internal Retaining Ring. NOTE - Snap ring pliers are required for this step.
- Page 7 FVC (and see) from you! Head to the products and following along and we will make it right. FVC is product page and click “Leave a company of van and outdoor with your adventures. Tag us Review.”...
