EGR ROLLTRAC RT038812E Installation Instructions Manual page 9

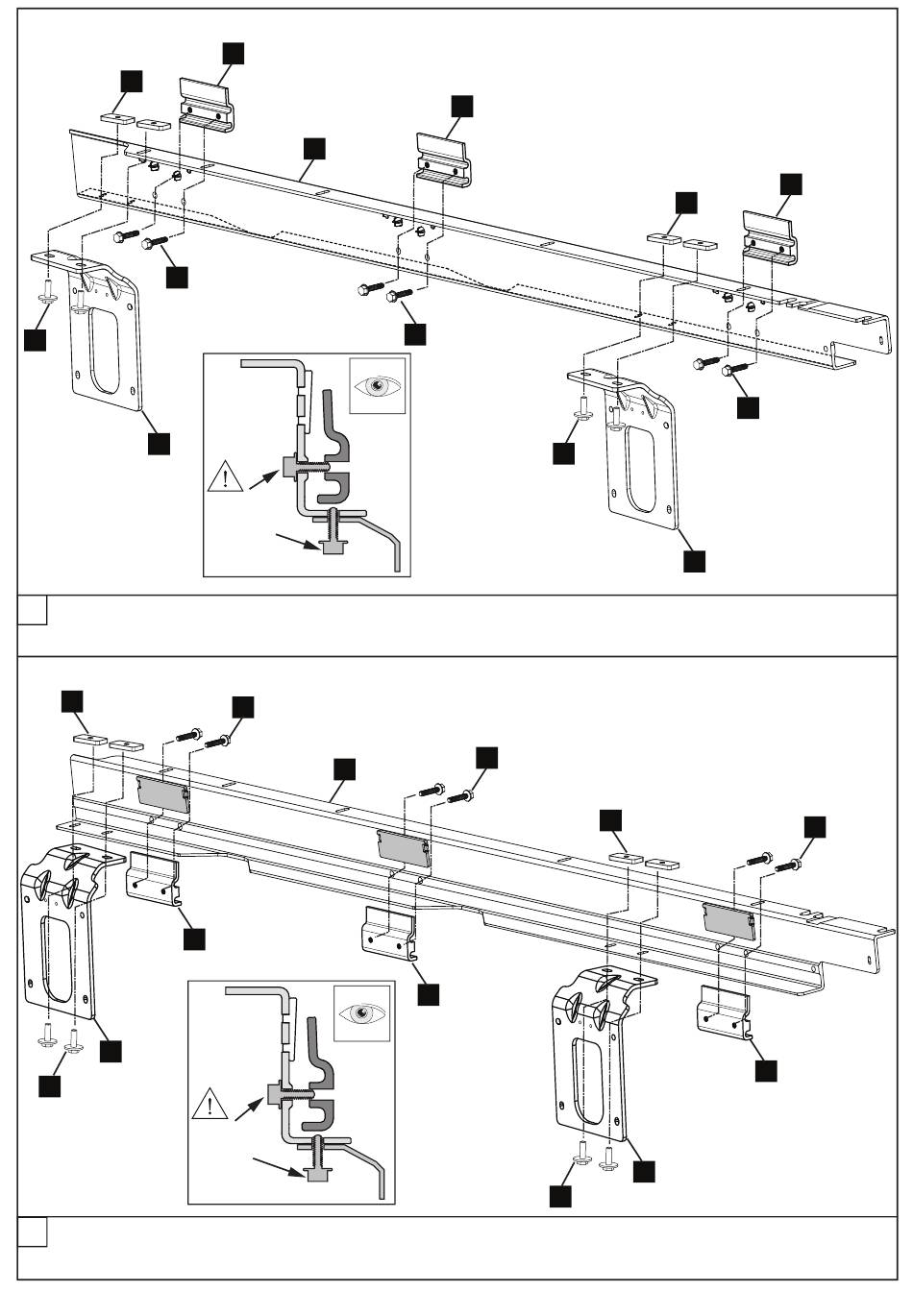

RHS MOUNT EXTRUSION ASSEMBLY
8
x2
12
12
x2
7
9
Fit the side brackets (7) to the mount extrusion (6) as shown. Do not torque the screws at this stage.
Attention: Fit screws only two rotations into the plates.
LHS MOUNT EXTRUSION ASSEMBLY
8
x2
7
12
x2
10
Fit the side brackets (7) to the mount extrusion (5) as shown. Do not torque the screws at this stage.
Attention: Fit screws only two rotations into the plates.
RT0046
9
6
x2
LOOSE
FIT
SECTION VIEW
12
x2
5
9
LOOSE
FIT
SECTION VIEW
9
12
x2
12
x2
12
x2
9
12
Page 9 of 36
8
x2
12
7
8
x2
7
x2
9
x2
12
x2
9
Issue 5: 20/09/23
