EGR ROLLTRAC RT038812E Installation Instructions Manual page 11

10
LHS
10
LHS
13

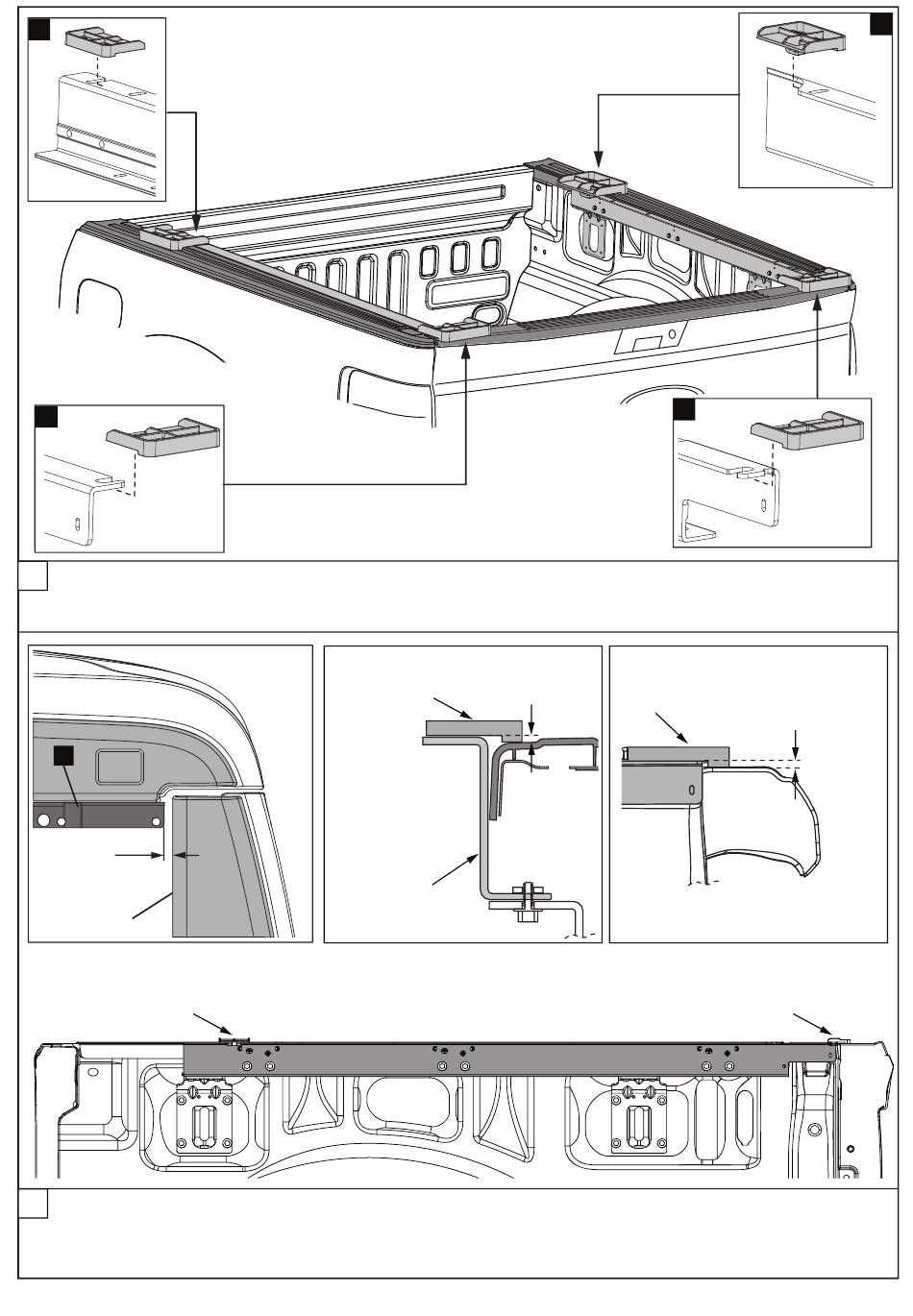

Fit the setup jigs, to set up the RH mount extrusion first. Adjust the mount extrusion front position to the bed cap and
rear position to the top of the tailgate using the setup jigs as a guide.
5
10mm(0.4'')
GAP
TAILGATE
SETUP JIG
14
Set front/back position of the mount extrusion relative to the tailgate 10mm(0.4'') gap as shown in top view.
Set the vertical position of mounting extrusion by adjusting the extrusion relative to the bedcap (ensuring parts are
held level). Use the setup jigs to achieve a 2.8mm(0.1'') step between the front end of the extrusion Vs bedcap; and
a 2.8mm(0.1'') step between the rear end of extrusion Vs tailgate - as shown in detail views above.
RT0046
TOP VIEW
SETUP JIG
MOUNT
EXTRUSION
FRONT POSITION
2.8mm(0.1'')
Page 11 of 36
10
TAILGATE POSITION
SETUP JIG
2.8mm(0.1'')
SETUP JIG
Issue 5: 20/09/23
10
RHS
RHS
RHS
